motorized telescopic mast ham

FOB Price

USD $2,100.56 - $2,250.2 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Port of Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents. motorized telescopic mast ham		Place of Origin	Tianjin, China
Model Number	TAL-E15-2.8-30-A

Product Description

motorized telescopic mast ham

The 33FT Motorized telescopic mast is one of the most popular masts. The extended heights go from 2m up to 10m. This mast model can carry heavier top loads 50kg. It is also available with 8 sections and can be used for the most common uses, like lighting, cameras and telecommunication equipment. The masts can be equipped with a tilt and turn unit.

Specification

motorized telescopic mast ham
Model No.	TAL-E15-2.8-30-A
Max top payload:	30kgs
Closed length:	2.8m
Extended length:	15m
Main mast sections	7 sections tube size: sec.No. ODwall thickness 1# 1305.0mm 2# 1052.5mm 3# 902.0mm 4# 802.0mm 5# 702.0mm 6# 602.0mm 7# 502.0mm
TOP flange size(diameter/thickness):	160mm/6mm, With 4pcs*10mm holes
Bottom Flange size(diameter/thickness):	190mm/10mm, with4pcs*10mm holes
Working temperature:	-40--+50C
Motor power:	AC220V/300W
Max Wind load:	80km/h
Accessories	1.220v /DC 12Vmotor---------------------------1pc 2.Control box----------------------------------------1pc 3.Handle lifting bar--------------------------------1pc 4.Remote controller-------------------------------2pcs 5.Bottom flange(base)---------------------------1pc 6.TOP flange------------------------------------------1pc 7.Pulling cord box----------------------------------4pcs 8.Ground anchor------------------------------------4pcs 9.tripod--------------------------------------------------1pc

Detailed Images

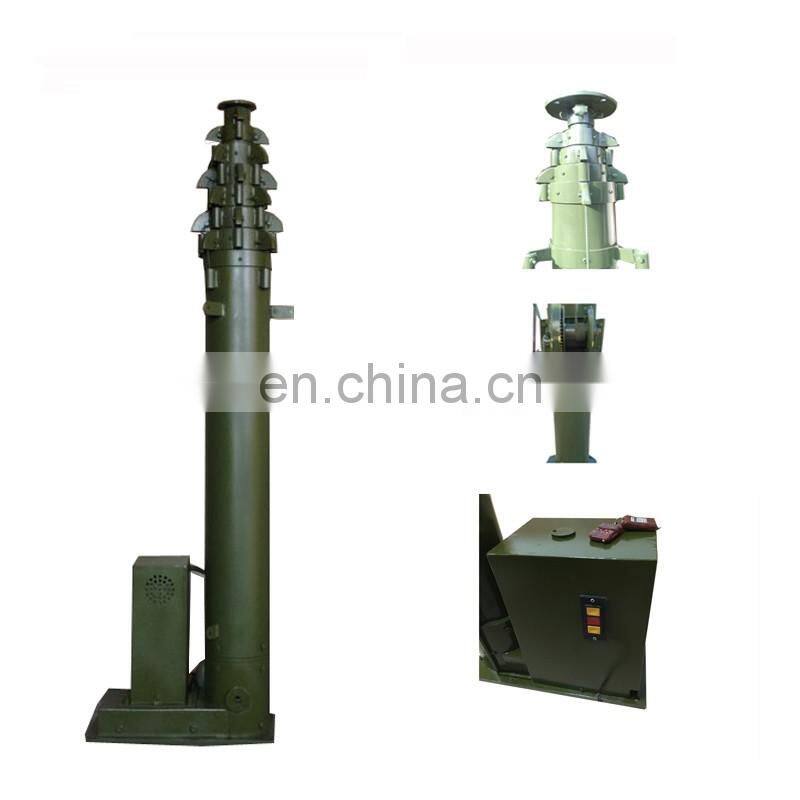

Mast body.

Common color is army green or silver color.

But it can be changed to any color as customers' request.

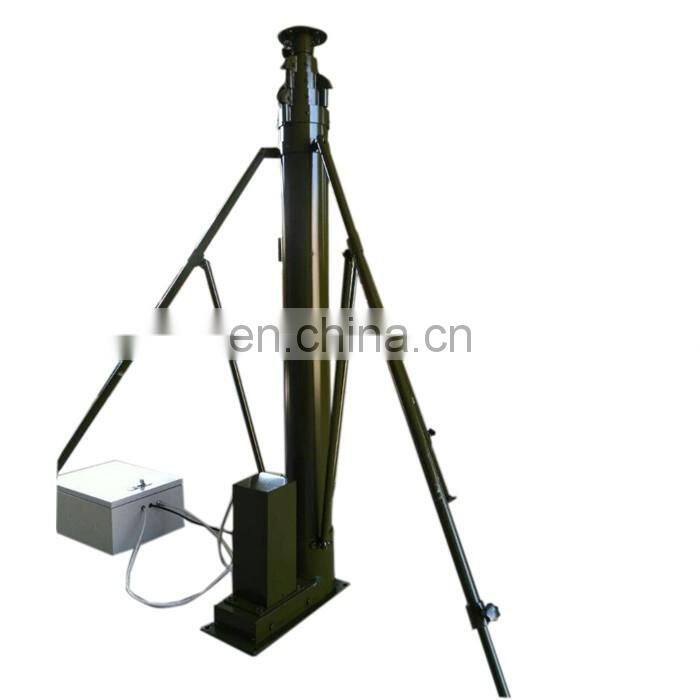

Portable model.

With tripod, more portable for using.

if need vehicle mounted model, we can

give you car clamps for fixing.

Accessories.

Pulling cord box with three layers steel pulling wire, remote controler, flange,

ground anchor...

Packing & Delivery

Plywood case.

Inner packge is EPE to protect all part, plywood case is fittable

for express post, sea shipment and air shipment.
Package information

Gross weight is around 120kg,( with the package weight)

Meas.: 215*45*50cm

Otehr specification

Motorized telescopic mast
Model No.	Retracted height (m)	Extended Height (m)	Diameter range (mm)	Section NO.	Head-load (KG)
TAL-2M-30	1	2	40mm~60mm	3	30
TAL-2M-30	0.75	2	40mm~90mm	6	20
TAL-2M-100	1..2	2	105mm~130mm	2	100
TAL-3M-250	1.75	3	90mm~130mm	3	250
TAL-4M-250	1.8	4	90mm~130mm	3	250
TAL-4M-10	1.55	4	40mm~80mm	4	10
TAL-4M-50	1.2	4	60mm~130mm	6	50
TAL-5M-150	1.4	5	60mm~160mm	6	150
TAL-5M-600	1.6	5	60mm~150mm	5	600
TAL-6M-10	1.7	6	40mm~90mm	6	10
TAL-6M-50	1.7	6	50mm~105mm	6	50
TAL-8M-30	2.2	8	40mm~105mm	6	30
TAL-10M-30	2.45	10	40mm~105mm	7	30
TAL-12M-200	2.45	12	70mm~160mm	7	200
TAL-12M-35	2.3	12	40mm~130mm	7	35
TAL-12M-100	2.7	12	50mm~130mm	7	100
TAL-12M-20	2.4	12	40mm~150mm	7	20

Our Service

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Our Company

Talents enterprise co.,ltd.

Design and supply for all kinds of telescopic mast since 1995Our product range is extremely wide and the applications of our telescopic masts are various: from the most well-known fire-fighting sector to the emergent sector of wind power, but also photography, telecommunication and broadcasting as well as the military sector and many others.
