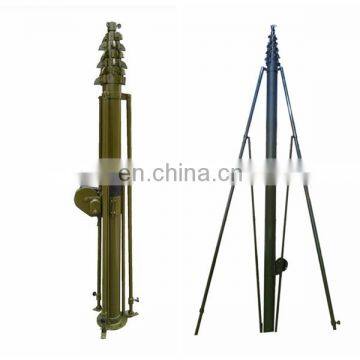

12m Manual Crank Lift Telescopic Masts Golf Course Lighting Solution
- China main port
- T/T Credit Card
You May Like
-
High Quality Street Lighting Pole , 6m 8m 10m 12m 20m LED Flood Light Telescopic Cctv Camera Mast
-
8m 9m 10m Portable Lightweight Telescopic Security Camera Mast Pole
-
20m High Crank Up Winch Telescoping Mast
-
Portable Lightweight Antenna Mast , 30ft Communication Tower
-
20m-30m Mobile Telescopic Manual Crank up Antenna Mast Tower for Communication Ham Radio
-
15m Manual High Mast With Tripod
Product Details
| Brand Name | Talents | Place of Origin | Tianjin, China | |
| Model Number | TAL-E12-2.3-50 |
Product Description
we supply telescopic mast up to 35m,it can bear payload
not less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length
B.it can be mounted on the vehicle or stand on the ground with tripod
C.high strenght can bear large payload
besides,there are 3 designs for choice
A.handlifting telescopic mast
B.electric lifting&hand lifting telescopic mast
C.pneumatic telescopic mast
material:usually aluminum alloy

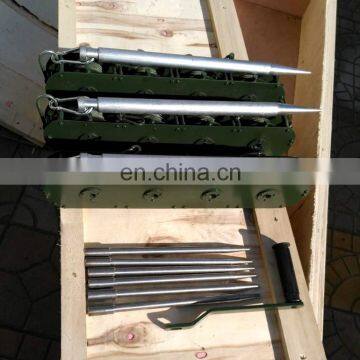

Pulling cord box with handle bars------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
9m PTZ camera pneumatic telescopic mast
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.
4m manual mast
6m pneumatic mast
contact person: Ms.Grace Wang
Talents Enterprise Company Limited
T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106
whatsapp:0086 18222428293
wechat: 1093812653
W:
if you get interested in our telescopic mast, please contact us at any time for catalog and videos
