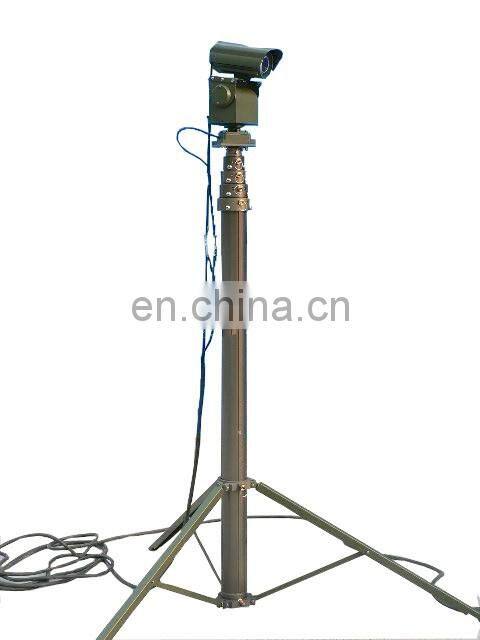

8m 200kg Capacity Telescopic Mast With Supporting Poles

                                  8m 200kg capacity telescopic mast with supporting poles

Color of  telescopic mast with supporting poles

the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.

Technology: painting

Specifications of telescopic mast with supporting poles

Closed length: 1.9m (Bottom base included)
Extended length: 8.0m (Bottom base included)
Wind load: working rate:25m/s Max rate:35m/s
Temperature: working temp:-40--+50C Storage Temp:-55--+70C

Pay loading:200kg

Diameter range:70-160mm

Accessories:

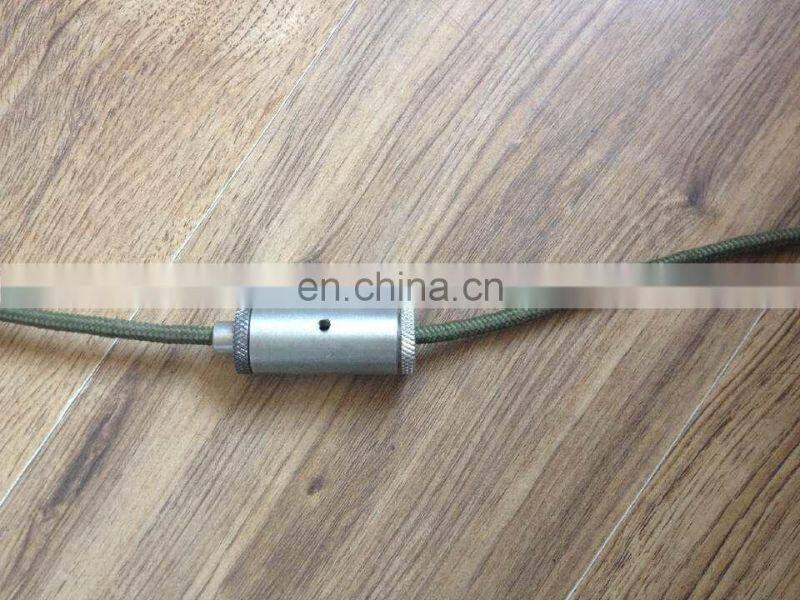

Nylone Pulling cord(OD 8mm)----------------------3 units

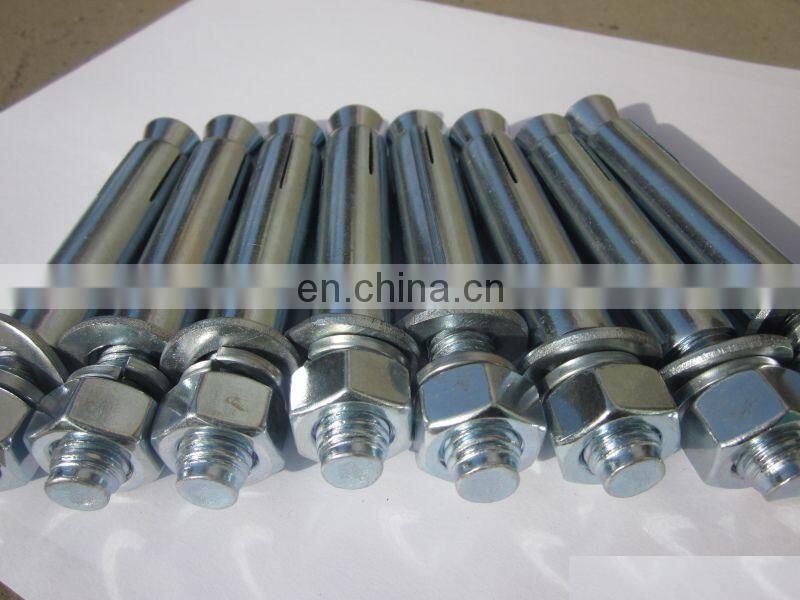

Ground / wall bolts-------------------------------------8 pieces

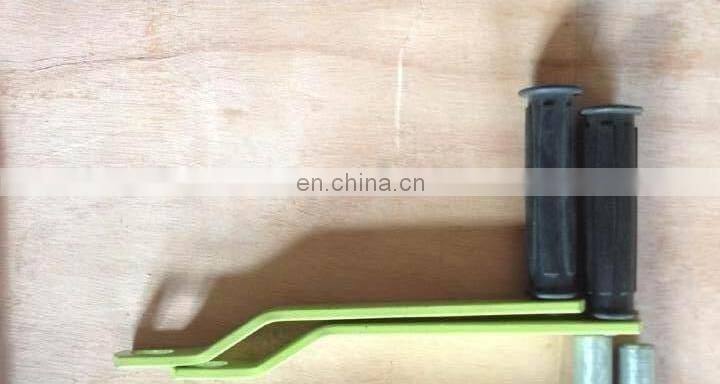

Handle lifting bar---------------------------------------2 pieces
Wall brakets---------------------------------------------2 units
Plate(OD:15cm)-----------------------------------2 pieces

Bottom base: Diamerer:220mm  Thickness: 10mm

Material:

Main Pole: aluminum alloy 2A12 T4
Pulling cord(OD:8mm): nylon
Ground / wall bolts:stainless steel
Handle lifting barWall brakets:Iron steel

PACKING:

 One unit of telescopic mast with supporting poles(main pole and all accessories) to be wrapped with Poly tapes and then two units to be packed into a plywood case with metal belts reinforced.

1 plywood case=2 units of telescopic mast with supporting poles

WARRATY PERIOD:

    Except the damages due to misuse,unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confimed by the seller through photos and description.

Installation Instructions:

1)The telescopic mast with supporting poles can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted lifting rod will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic mast with supporting poles needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the lifting rod. And the distance between two points should be longer than 2/3 of the height of lifting rod. Its connection must be solid and reliable.
