10m Steel Manual Telescopic Mast for Telecoms Equipment

Name: 10m Steel Manual Telescopic Mast for Telecoms Equipment
Brand: talents
Availability: InStock

FOB Price

US$ 890 - 1,100 / Set

1 Set(Min. Order)

Port China main ports
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-M10-2-10

Product Description

Detailed Images

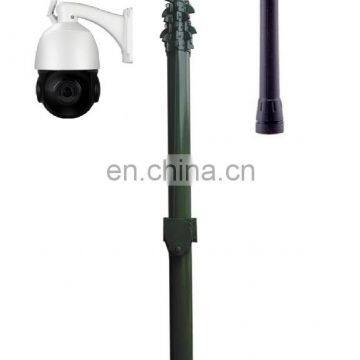

10m steel manual telescopic mast for telecoms equipment

Product Description

10m steel manual telescopic mast for telecoms equipment

technical data
main spec.	Closed length:1m to 3.6m (Bottom base included) Extended length: 2m to 25m (Bottom base included) Self weight:around 10kg to 72kg Max loading:20kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections	Section No. OD Thickness 1#: 40mm 2.0mm 2#: 50mm 2.0mm 3#: 60mm 2.0mm 4#: 70mm 2.0mm 5#: 80mm 2.0mm 6#: 90mm 2.0mm 7# 105mm 2.5mm 8# 130mm 5.0mm 9# 150mm 3.0mm
Bottom base	diameter: 180mm Thickness: 12mm

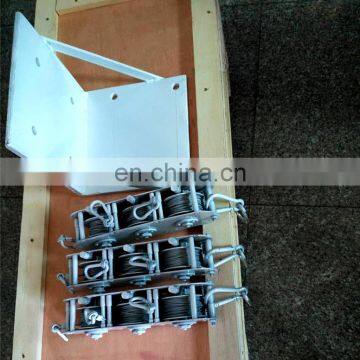

Accessories	Pulling cord box with handle bars------------------3 units Ground anchor------------------------------------------3 pieces Handle lifting bar---------------------------------------2 pieces 304 stainless steel stakes-------------------------------6 pieces Tripod -----------------------------------------------------1 piece Top plate---------------------------------------------------1 piece
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

accessories

Pulling cord box with handle bars------------------3 units

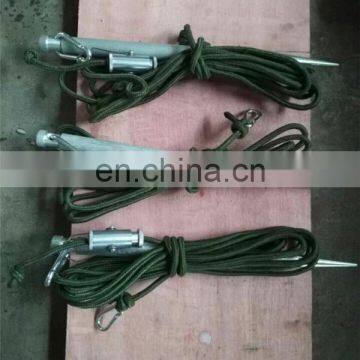

Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece

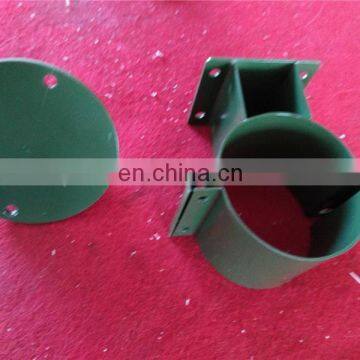

Top plate---------------------------------------------------1 piece

Packing & Delivery

10m steel manual telescopic mast for telecoms equipment

package
carton packed	normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed	normal package is plywood case for extended height more than 10m, weight more than 70kg mast

Workshop

Our Service

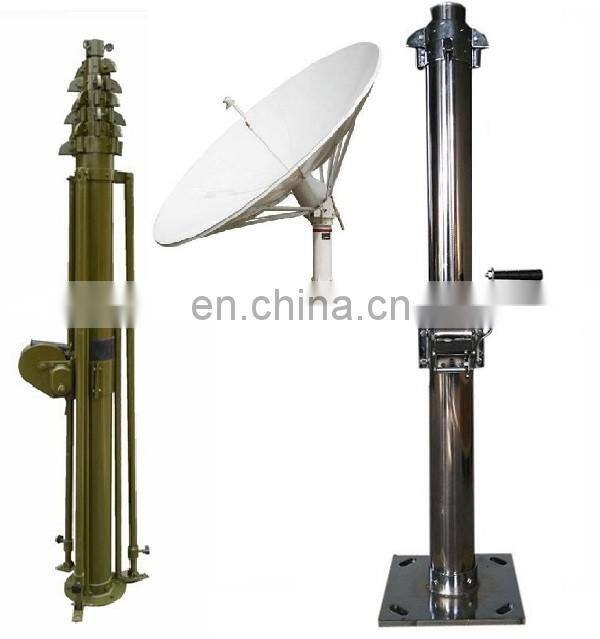

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade manual mast as follows-

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	14
5	4	1.65	50-80	17
6	5	1.7	50-90	21
8	6	1.8	40-90	24
10	7	1.95	30-90	26
12	7	2.2	30-90	28
15	8	2.45	30-105	33
18	9	2.7	30-130	47
20	9	2.95	30-130	55
22	9	3.15	30-130	58
25	10	3.4	30-150	72
30	10	3.85	30-150	84

why choose our masts

1.all masts include 1 year limited warranty

2.this type masts are extendable manually, no pumps, no complex extension devices,

no power sources required.

pletely maintenance-free

4.deliveried ready to use

5.we ship worldwide
