Aluminum Manual Flood Lighting Pole 10m

FOB Price

US$ 1,052.1 - 1,388.66 / Set

1 Set(Min. Order)

Port China port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents,light mast	Place of Origin	Tianjin, China
Model Number	TAL-M10-1.95-15-A	Material	Aluminum
Type	Round

Product Description

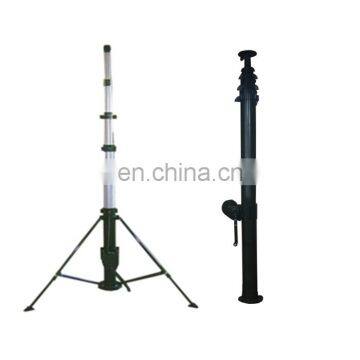

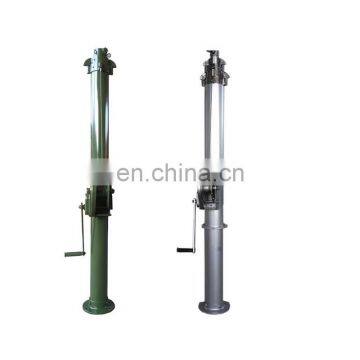

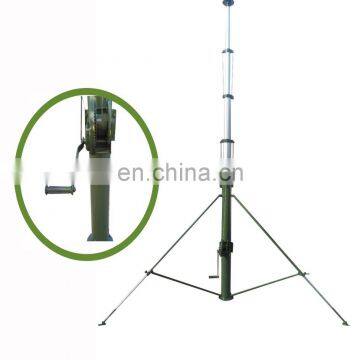

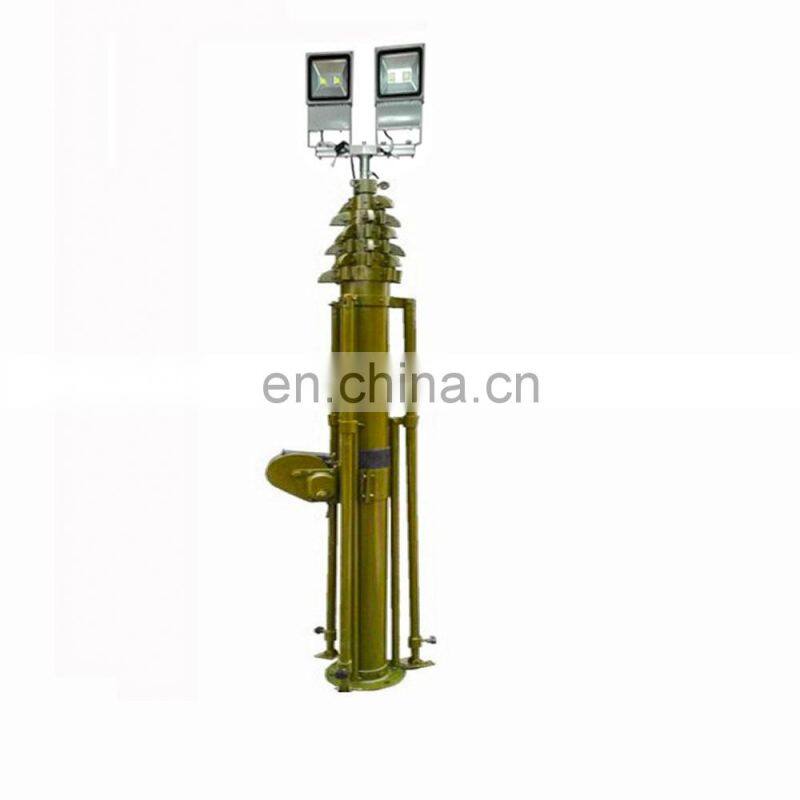

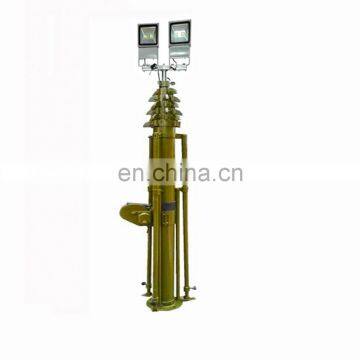

Aluminum manual flood lighting pole 10m

Application

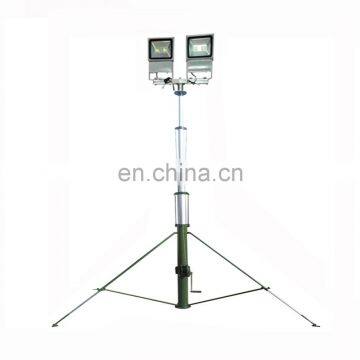

It can help lamplight, camera, Antenna, mobile and other equipments rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field. Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect.

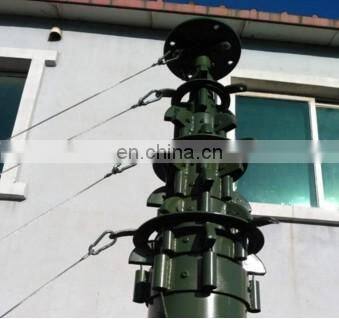

A fantastic quality and great priced mast. This fully telescopic mast can be extended anywhere from 1.95 metres all the way up to a whopping 10.0 metres . Offering the added benefit of integrated circular guy rings on each section (each guy ring offers 3 guy line mounting points), this mast has a variety of uses - but is perfect for fixed or portable installations of light to medium weight two-way radio antennas, such as amateur radio, PMR & CB/10m antennas.
Full 'no rust' aluminium construction the mast is fully weatherproof and has section end bungs allready fitted, so will never let the rain in, or 'lock up', and can be left outside all year around.

Color: any color

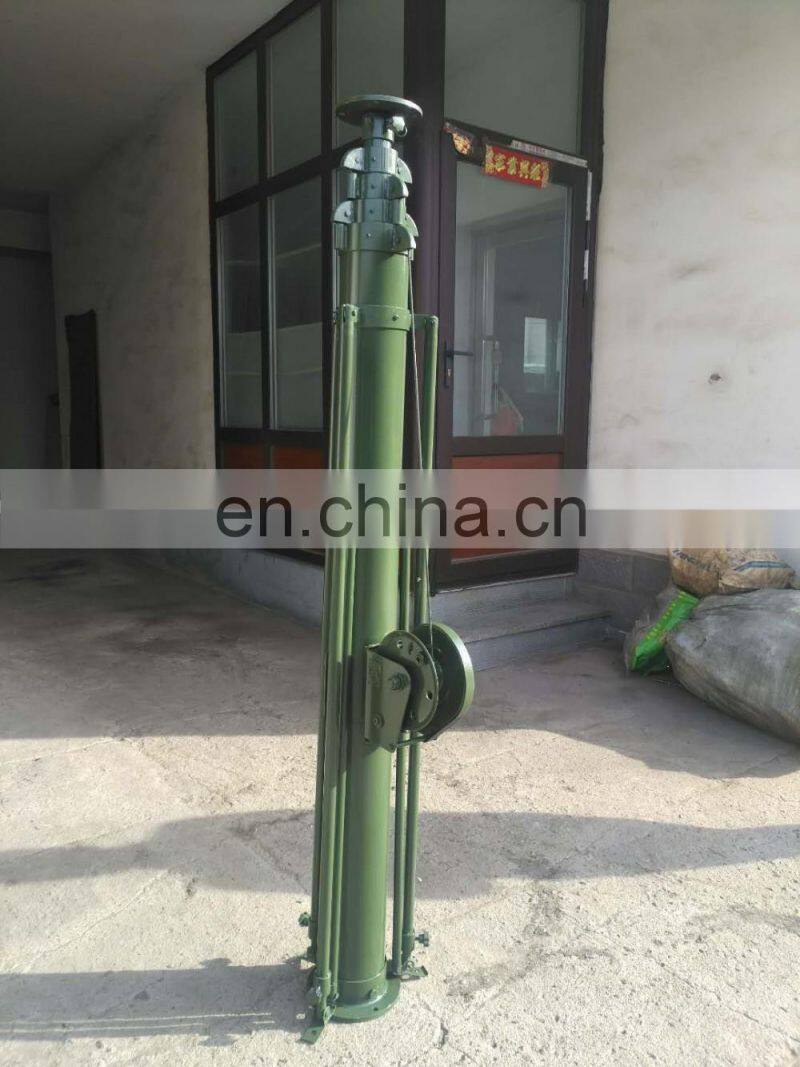

the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color. Technology: painting

We usually produce three kinds of color, army green, black, the original color of aluminum, but any color OEM is available.
Material:
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)

Specifications telescopic roof lighting mast
Extended length	10.0m (Bottom base included)
Closed length	1.95 m (Bottom base included)
head-load	15kg
Wind load	80km/h
working Temperature	-40--+50C
sections NO.	7 sections: OD: 90-80-70-60-50-40-30mm

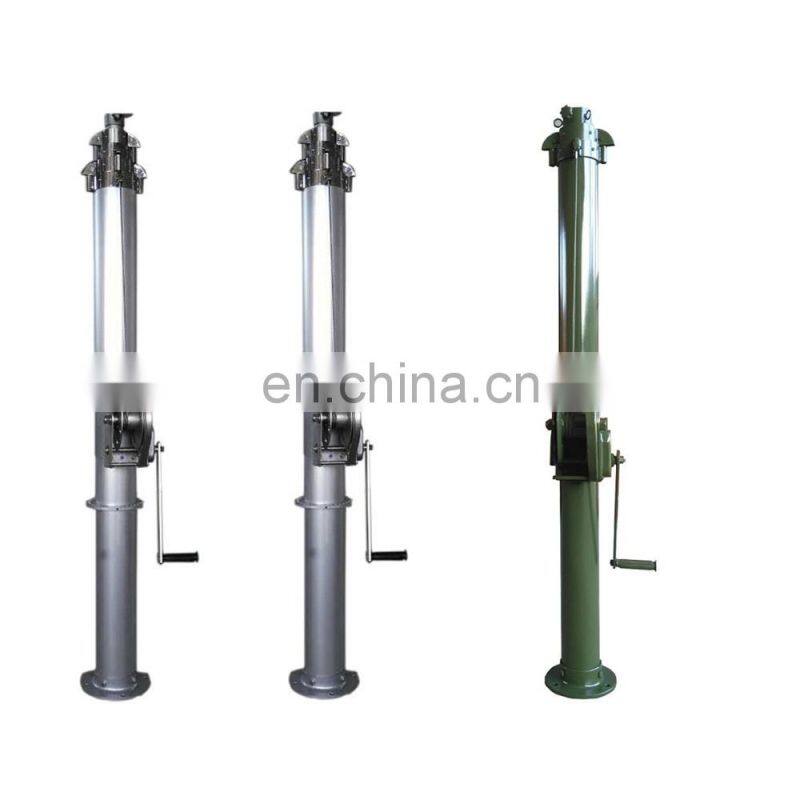

Detailed Images

Accessories:
Pulling cord box with handle bars	3 units
Ground anchor	3 pieces
Handle lifting bar	2 pieces
stainless steel stakes	6 pieces
Tripod	1 unit

Installation Instructions:Aluminum manual flood lighting pole 10m

1)The telescopic roof lighting mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the telescopic antenna mast tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic roof lighting mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Packing & Delivery

PACKING: Aluminum manual flood lighting pole 10m

One unit of telescopic roof lighting mast(main pole and all accessories) to be wrapped with Poly tapes and then into a plywood case with metal belts reinforced.

After-sale Service

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Other Specification

Other specifications are also available:

Actually, apart from this telescopic roof lighting mast, we also have many masts available: hand lifting, motorized lifting and pneumatic lifting with extended length from 2 meters to 35meters, the largest play loads up to 300 kgs. We could make appropriate adjustments with different sizes and colors specially for you.

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube OD(mm)	Head-load (KG)
TAL-M3-1-20	3	3	1.0	70-90	20
TAL-M4-1.5-30	4	3	1.5	50-80	30
TAL-M5-1.65-10	5	4	1.65	50-80	10
TAL-M5-1.2-15	5	5	1.2	40-90	15
TAL-M5-1.2-10	5	6	1.2	40-90	10
TAL-M5-1.7-100	5	6	1.7	60-130	100
TAL-M6-1.7-10	6	5	1.7	50-90	10
TAL-M6-1.5-100	6	6	1.5	60-130	100
TAL-M6-1.3-60	6	7	1.3	40-130	60
TAL-M7-1.8-30	7	7	1.8	40-105	30
TAL-M8-1.8-10	8	6	1.8	40-90	10
TAL-M8-1.5-20	8	8	1.5	40-130	20
TAL-M9-1.8-30	9	7	1.8	40-105	30
TAL-M9-1.8-100	9	7	1.8	60-160	100
TAL-M9-1.9-5	9	7	1.9	30-90	5
TAL-M10-1.95-10	10	7	1.95	30-90	10
TAL-M10-2-40	10	7	2	30-105	40
TAL-M12-2.1-15	12	7	2.1	30-90	15
TAL-M12-2-40	12	8	2.2	40-130	40
TAL-M15-2.45-10	15	8	2.45	30-105	10
TAL-M15-2.6-35	15	9	2.6	30-130	35
TAL-M15-2.5-200	15	7	2.5	70-200	70
TAL-M16-2.6-10	16	8	2.6	30-105	10
TAL-M18-2.7-10	18	9	2.7	30-130	10
TAL-M18-3.2-30	18	9	3.2	30-130	30
TAL-M18-3.7-100	18	7	3.7	50-130	100
TAL-M20-2.95-10	20	9	2.95	30-130	10
TAL-M22-3.15-10	22	9	3.15	30-130	10
TAL-M25-3.4-10	25	10	3.4	30-150	10
TAL-M25-3.5-250	25	10	3.5	80-280	250
TAL-25-3.6-20	25	9	3.6	40-150	20
TAL-M30-3.85-10	30	10	3.85	30-150	10
TAL-M35-4.5-25	35	10	4.5	40-180	25

Company Profile

Tianjin Talents International Trade Co., Ltd.-----since 1995, designer and supplier for the telescopic mast

following link for basic model--please check the picture

18m telescopic mast

pneumatic light mast

motorized telescopic mast
