Home > Products > Manual telescopic mast > 15m Telescopic Mechanical Winch Manual Mast

15m Telescopic Mechanical Winch Manual Mast

FOB Price

US$ 1,248.65 - 1,381 / Set

5 Sets(Min. Order)

Port Tianjin port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents,China 15m mast		Place of Origin	Tianjin, China
Model Number	Tal-15.0-2.6-35-H-AXT

Product Description

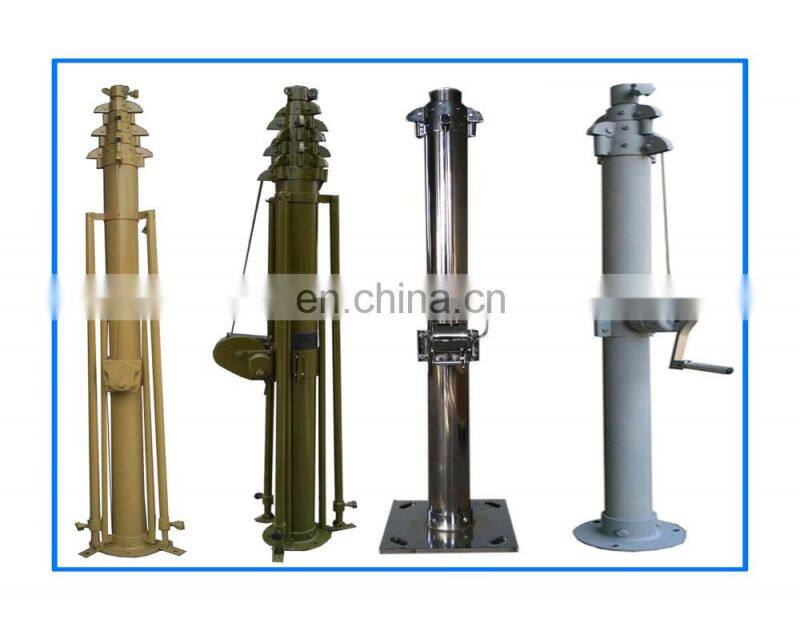

15m telescopic mechanical winch manual mast

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle

situation.
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna,yagi ,lightning rod,or else communication devices.......
It can be used on the ground, vehicle mounted ,trailer , the wall or the mine......

Specification

DESCRIPTION 15m telescopic mechanical winch manual mast
Specification	Extended height	15.0m
	Retracted height	2.6m
	Head-load	35KG
	Self-weight	43kg
	Tube OD & wall thickness	9 sections 1# 1302mm, 2#1052mm, 3#902mm, 4#802mm, 5#702mm, 6#602mm 7#502mm. 8#402mm 9#30*2mm
Accessories	Tripod Nylon pulling cord Handle lifting bar Ground anchor Stainless steel stakes Top flange bottom base
Lift type	Hand crank

Details

15m telescopic mechanical winch manual mast

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

Packaging
Size	2752535CM
Weight	79kg
Packaging Details	1.The normal package is plywod case which is fumigated. 2.all the accessories will be packed with the EPE in independent package 3.the inner parts of the box will be filled with some foam to protect the mast

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube OD(mm)	Head-load (KG)
TAL-M3-1-20	3	3	1.0	70-90	20
TAL-M4-1.5-30	4	3	1.5	50-80	30
TAL-M5-1.65-10	5	4	1.65	50-80	10
TAL-M5-1.2-15	5	5	1.2	40-90	15
TAL-M5-1.2-10	5	6	1.2	40-90	10
TAL-M5-1.7-100	5	6	1.7	60-130	100
TAL-M6-1.7-10	6	5	1.7	50-90	10
TAL-M6-1.5-100	6	6	1.5	60-130	100
TAL-M6-1.3-60	6	7	1.3	40-130	60
TAL-M7-1.8-30	7	7	1.8	40-105	30
TAL-M8-1.8-10	8	6	1.8	40-90	10
TAL-M8-1.5-20	8	8	1.5	40-130	20
TAL-M9-1.8-30	9	7	1.8	40-105	30
TAL-M9-1.8-100	9	7	1.8	60-160	100
TAL-M9-1.9-5	9	7	1.9	30-90	5
TAL-M10-1.95-10	10	7	1.95	30-90	10
TAL-M10-2-40	10	7	2	30-105	40
TAL-M12-2.1-15	12	7	2.1	30-90	15
TAL-M12-2-40	12	8	2.2	40-130	40
TAL-M15-2.45-10	15	8	2.45	30-105	10
TAL-M15-2.6-35	15	9	2.6	30-130	35
TAL-M15-2.5-200	15	7	2.5	70-200	70
TAL-M16-2.6-10	16	8	2.6	30-105	10
TAL-M18-2.7-10	18	9	2.7	30-130	10
TAL-M18-3.2-30	18	9	3.2	30-130	30
TAL-M18-3.7-100	18	7	3.7	50-130	100
TAL-M20-2.95-10	20	9	2.95	30-130	10
TAL-M22-3.15-10	22	9	3.15	30-130	10
TAL-M25-3.4-10	25	10	3.4	30-150	10
TAL-M25-3.5-250	25	10	3.5	80-280	250
TAL-25-3.6-20	25	9	3.6	40-150	20
TAL-M30-3.85-10	30	10	3.85	30-150	10
TAL-M35-4.5-25	35	10	4.5	40-180	25

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
