CCTV Tower Security Telescopic Mast With Bracket and Pulling Wire

Name: CCTV Tower Security Telescopic Mast With Bracket and Pulling Wire
Brand: Talents
Availability: InStock

FOB Price

US$ 800 - 900 / Unit

1 Unit(Min. Order)

Port Shenzhen China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	TAL-H-008

Product Description

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle

situation.
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna,yagi ,lightning rod,or else communication devices.......
It can be used on the ground, vehicle mounted ,trailer , the wall or the mine......

Specification

Specification 15m hand lifting telescopic mobile satellite antenna mast
Model No.	TAL-M15-2.45-10-A
Extended height	15.0m
Retracted height	2.45m
Max head-load	10kg
Mast self weight( without tripod)	around 63kg
Mast sections No.	7sections
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections	SectionNo. OD Thickness 1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm 6# 114mm 3.0mm 7# 132mm 3.0mm

Acessories
Mount model	Ground fixed type---without tripod
Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs stainless steel stakes------------------------------------3pc Ground anchors-------------------------------------------3pcs tripod-----------------------------------------------------------1pc

Details

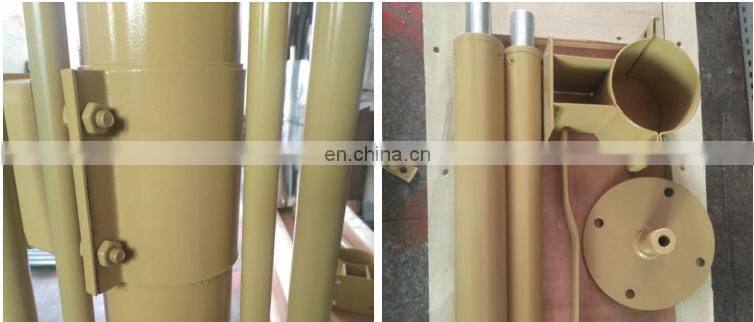

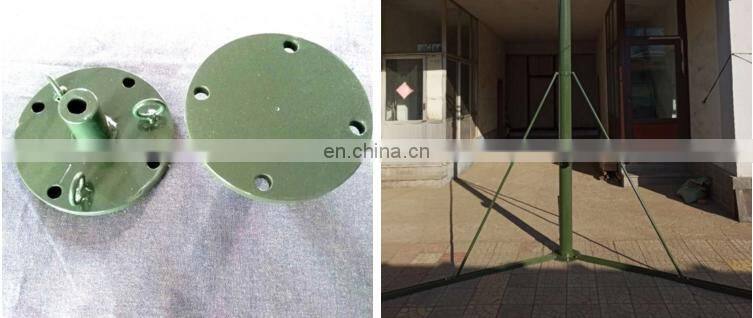

Accessories.

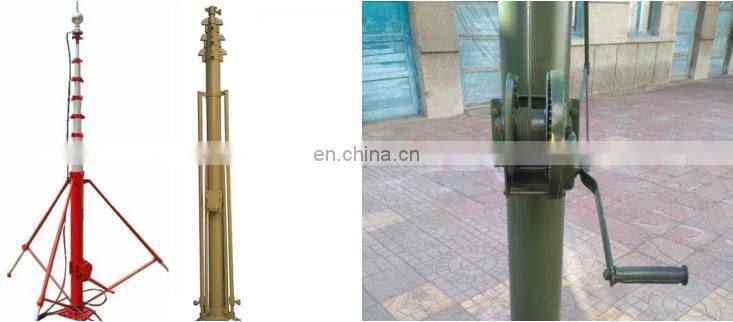

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

15m hand lifting telescopic mobile satellite antenna mast.

Packing meterial: one unit of satellite antenna mast(main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.

Gross weight:90kgs

Package meas:255*30*27

Workshop

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended height (m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
3	3	1.0	70-90	15	20
4	3	1.5	50-80	15	30
4	3	1.0	70-90	16	20
4	3	1.6	60-80	14	10
5	4	1.65	50-80	17	10
5	5	1.2	40-90	20	15
5	5	1.5	50-90	20	60
5	6	1.7	60-130	35	100
6	5	1.7	50-90	21	10
6	6	1.5	60-130	40	100
6	7	1.3	40-130	32	60
7	7	1.8	40-105	23	30
8	8	1.5	40-130	34	20
9	7	1.8	40-105	25	40
9	7	1.8	40-105	25	30
9	7	1.8	60-160	43	100
9	7	1.9	30-90	25	5
10	7	1.95	30-90	26	10
10	7	2	30-105	31	40
12	7	2.2	30-90	28	10
12	7	2.1	30-90	28	15
12	8	2.2	40-130	44	40
15	8	2.45	30-105	33	10
15	9	2.6	30-130	40	35
15	7	2.5	70-200	200	70
16	8	2.6	30-105	35	10
18	9	2.7	30-130	47	10
18	9	3.2	30-130	48	30
18	7	3.7	50-130	47	100
20	9	2.95	30-130	55	10
20	8	3.20	40-130	58	20
22	9	3.15	30-130	58	10
25	10	3.4	30-150	72	10
25	10	3.5	80-280	90	250
25	9	3.6	40-150	71	20
30	10	3.85	30-150	84	10
35	10	4.5	40-180	130	25

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
