6-12m telescopic mast for camera

Name: 6-12m telescopic mast for camera
Brand: Talents
Price: USD $755 - 755 / Set

FOB Price

USD $755 - $755 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port China main port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Talents

Place of Origin:

Tianjin, China

Model Number:

TAL-M6-1.75-10

Product Description

Detail Image

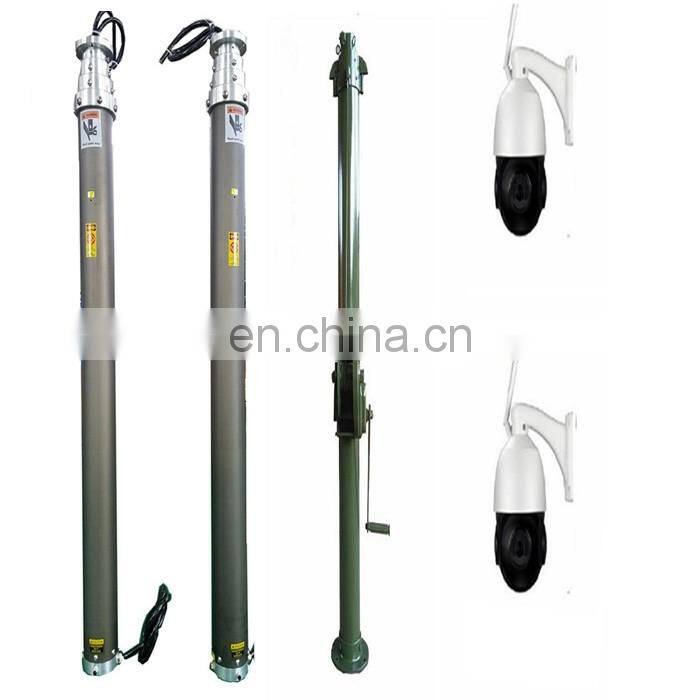

6-12m telescopic mast for camera

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Specification

6-12m telescopic mast for camera

technical data
Model No.	TAL-M6-1.75-10
main spec.	Closed length: 2m (Bottom base included) Extended length: 10m (Bottom base included) Max loading:10kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections	SectionNo. OD Thickness 1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm 6# 114mm 3.0mm 7# 132mm 3.0mm

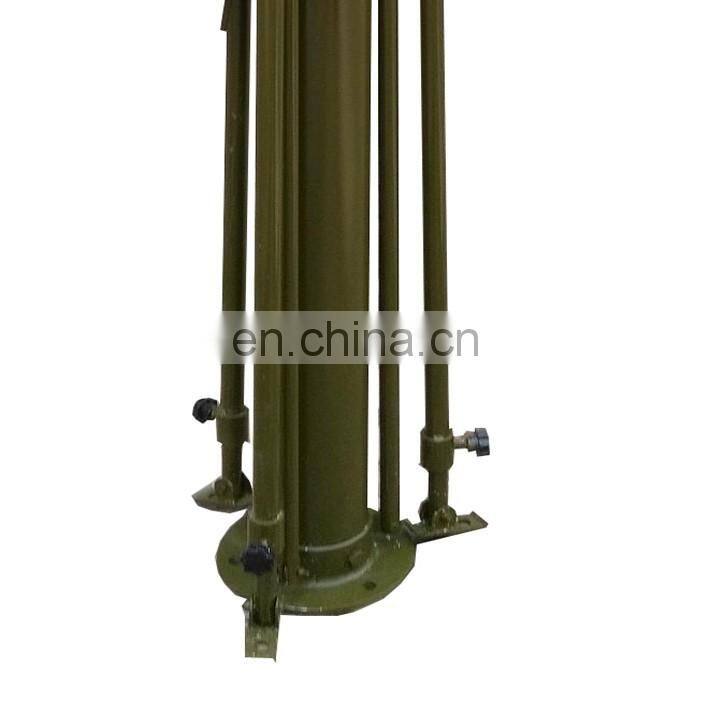

Bottom base	diameter: 180mm Thickness: 12mm

Acessories
Mount model	Ground fixed type---without tripod

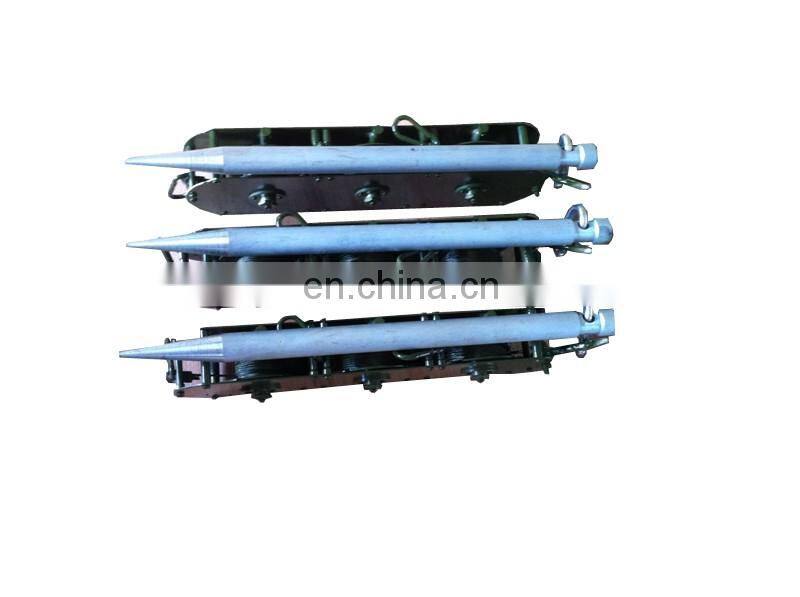

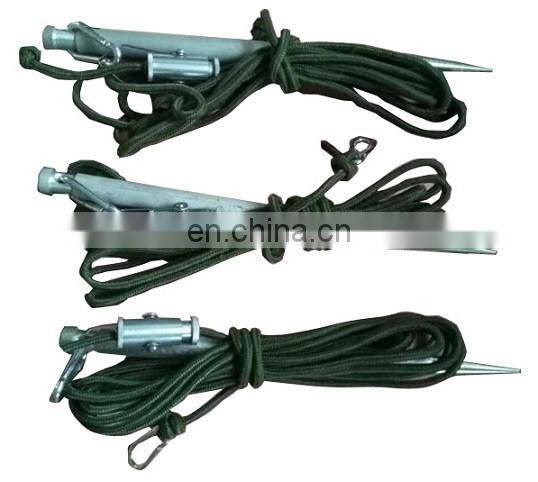

Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs stainless steel stakes------------------------------------3pc Ground anchors-------------------------------------------3pcs tripod-----------------------------------------------------------1pc

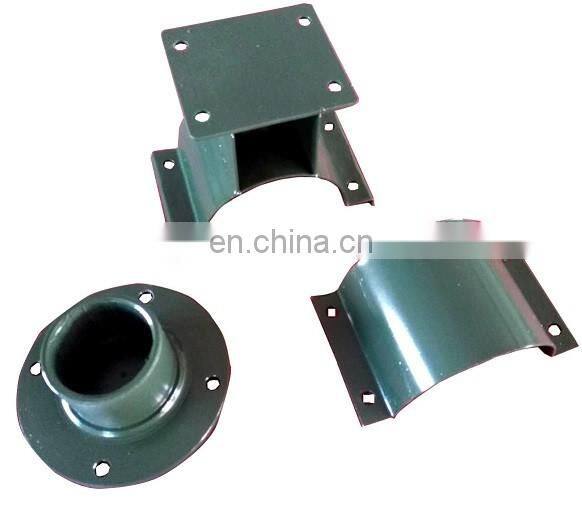

Accessorie photots

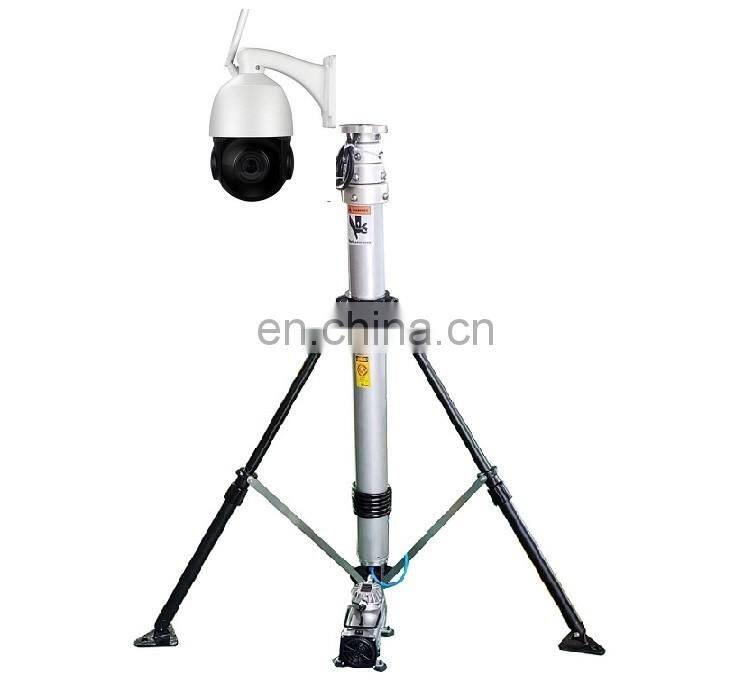

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.
If you have other accessories requirement, please contact us separately.

Packing & Delivery

Packing meterial: one unit of 6-12m telescopic mast for camera(main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended height (m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
3	3	1.0	70-90	15	20
4	3	1.5	50-80	15	30
4	3	1.0	70-90	16	20
4	3	1.6	60-80	14	10
5	4	1.65	50-80	17	10
5	5	1.2	40-90	20	15
5	5	1.5	50-90	20	60
5	6	1.7	60-130	35	100
6	5	1.7	50-90	21	10
6	6	1.5	60-130	40	100
6	7	1.3	40-130	32	60
7	7	1.8	40-105	23	30
8	8	1.5	40-130	34	20
9	7	1.8	40-105	25	40
9	7	1.8	40-105	25	30
9	7	1.8	60-160	43	100
9	7	1.9	30-90	25	5
10	7	1.95	30-90	26	10
10	7	2	30-105	31	40
12	7	2.2	30-90	28	10
12	7	2.1	30-90	28	15
12	8	2.2	40-130	44	40
15	8	2.45	30-105	33	10
15	9	2.6	30-130	40	35
15	7	2.5	70-200	200	70
16	8	2.6	30-105	35	10
18	9	2.7	30-130	47	10
18	9	3.2	30-130	48	30
18	7	3.7	50-130	47	100
20	9	2.95	30-130	55	10
20	8	3.20	40-130	58	20
22	9	3.15	30-130	58	10
25	10	3.4	30-150	72	10
25	10	3.5	80-280	90	250
25	9	3.6	40-150	71	20
30	10	3.85	30-150	84	10
35	10	4.5	40-180	130	25

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. We are serving our long-term customers from the five Continents and the four Oceans.

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system and have Multi-way fast delivery channels, we are supplying one year free after-sale warranty to the buyer. We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
