30m Ham Radio Trailer Pneumatic Folding Antenna Mast

FOB Price

US$ 3,052 - 3,188 / Unit

5 Units(Min. Order)

Port China port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talent,pneumatic telescopic mast		Place of Origin	Tianjin, China
Model Number	TAL-M30-3.85-15-A

Product Description

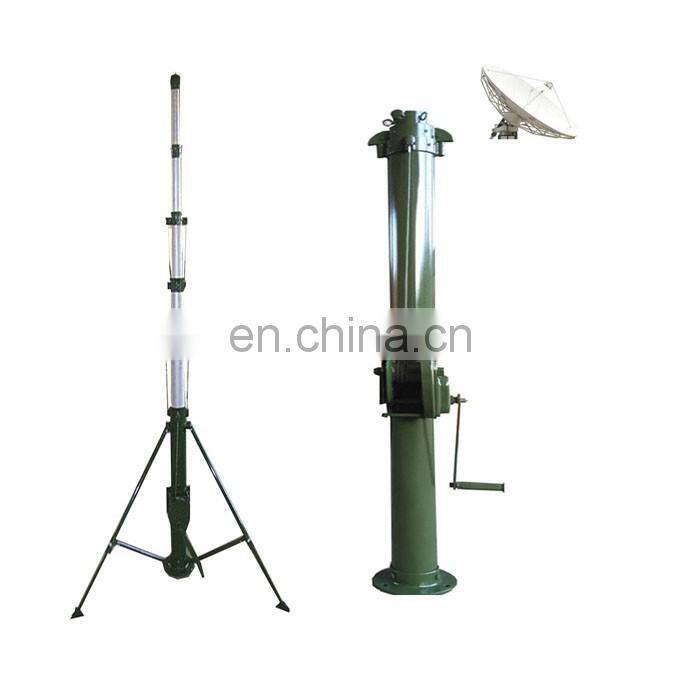

30m ham radio trailer pneumaitc folding antenna mast

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle

situation.
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 35m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna.......
It can be used on the ground or vehicle mounted or the wall......

Specification for 30m ham radio trailer pneumaitc folding antenna mast
Article number	TAL-M30-3.85-15-A
Lifting method	manual lifting
Extended height	30m
Retracted height	3.85m
material	for main tube:alluminun alloy
Max payload	15kgs
wind load	80km/h
temperature	-40--+50℃
sections	8
outer tube diameter	30-40-50-60-70-80-90-105-130-150

Details

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

PACKING:

One unit of telescopic tripod masts pole will be wrapped with 3 layers of PP tapes and filled with Styrofoam then put in a plywood case with metal belts reinforced.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Installation Instructions:

1)The telescopic tripod masts pole can be installed on the ground, or on the vehicle. No matter where to install, its installation

shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the telescopic

antenna mast tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic tripod masts pole needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast . And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast . Its connection must be solid and reliable.

Certifications

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
TAL-M3-1-20	3	3	1.0	70-90	15	20
TAL-M4-1.5-30	4	3	1.5	50-80	15	30
TAL-M4-1-20	4	3	1.0	70-90	16	20
TAL-M4-1.6-10	4	3	1.6	60-80	14	10
TAL-M5-1.65-10	5	4	1.65	50-80	17	10
TAL-M5-1.2-15	5	5	1.2	40-90	20	15
TAL-M5-1.5-60	5	5	1.5	50-90	20	60
TAL-M6-1.7-10	6	5	1.7	50-90	21	10
TAL-M6-1.3-60	6	7	1.3	40-130	32	60
TAL-M7-1.8-30	7	7	1.8	40-105	23	30
TAL-M8-1.5-20	8	8	1.5	40-130	34	20
TAL-M9-1.8-40	9	7	1.8	40-105	25	40
TAL-M9-1.9-5	9	7	1.9	30-90	25	5
TAL-M10-1.95-10	10	7	1.95	30-90	26	10
TAL-M10-2-40	10	7	2	30-105	31	40
TAL-M12-2.2-10	12	7	2.2	30-90	28	10
TAL-M12-2.1-15	12	7	2.1	30-90	28	15
TAL-M12-2-40	12	8	2.2	40-130	44	40
TAL-M15-2.45-10	15	8	2.45	30-105	33	10
TAL-M15-2.6-35	15	9	2.6	30-130	40	35
TAL-M15-2.5-200	15	7	2.5	70-200	200	70
TAL-M16-2.6-10	16	8	2.6	30-105	35	10
TAL-M18-3.2-30	18	9	3.2	30-130	48	30
TAL-M18-3.7-100	18	7	3.7	50-130	47	100
TAL-M20-2.95-10	20	9	2.95	30-130	55	10
TAL-M20-3.20-20	20	8	3.20	40-130	58	20
TAL-M22-3.15-10	22	9	3.15	30-130	58	10
TAL-M25-3.4-10	25	10	3.4	30-150	72	10
TAL-M25-3.5-250	25	10	3.5	80-280	90	250
TAL-25-3.6-20	25	9	3.6	40-150	71	20
TAL-M30-3.85-10	30	10	3.85	30-150	84	10
TAL-M35-4.5-25	35	10	4.5	40-180	130	25

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
