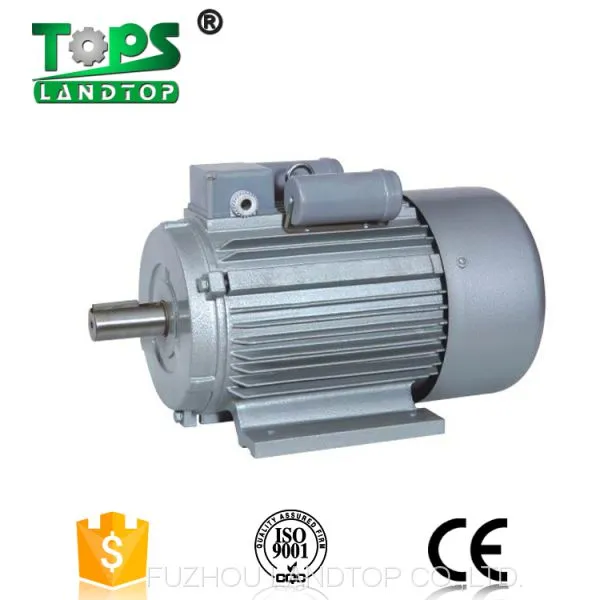

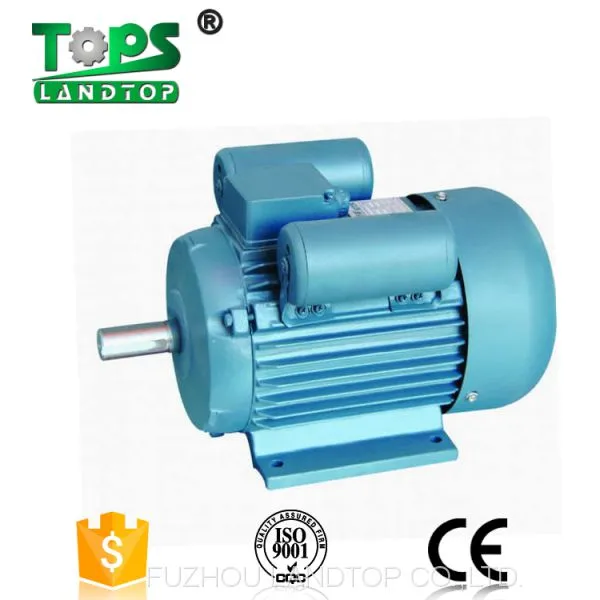

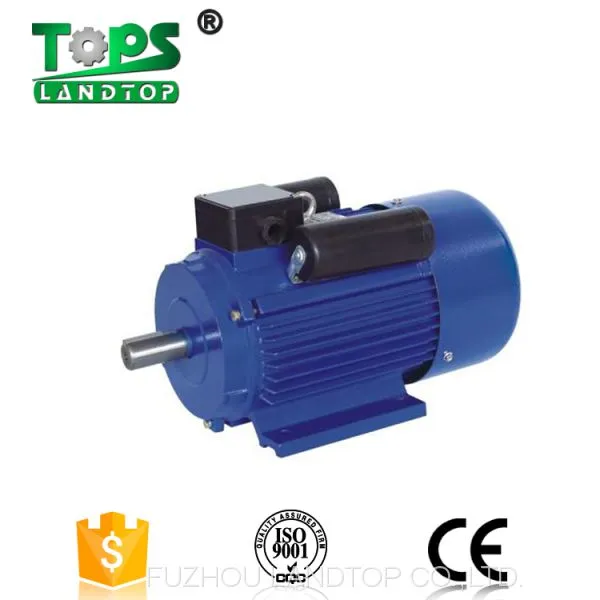

single phase 2hp electric motor ac induction motor made in China
YC series electric motor is used to drive small size machine, especially for household and workshop where only need single phase power supply.
Operating Conditions:
1,Ambient temperature: -15℃≤θ≤40℃
2,Altitude:≤1000m
3,Rated voltage:380V, other voltage on request
4,Rated frequency:50HZ,other frequency on request
5,Duty/Rating: Continuous(S1)
6,Insulation class: Class B/F
7,Production Class: IP44/IP54/IP55
7,Cooling method:IC141
Technical Data
| Type | Output | Current | Speed | Tstart/Tn | Ist/In | |
| kW | HP | (A) | (r/min) | |||
| YC711-2 | 0.18 | 0.25 | 1.89 | 2800 | 3 | 7 |
| YC712-2 | 0.25 | 0.34 | 2.4 | 2800 | 3 | 7 |
| YC80A-2 | 0.37 | 0.5 | 3.3 | 2840 | 3 | 6.5 |
| YC80B-2 | 0.55 | 0.75 | 4.7 | 2860 | 3 | 7 |
| YC80C-2 | 0.75 | 1 | 6.1 | 2880 | 2.8 | 7 |
| YC90S-2 | 1.1 | 1.5 | 10.5 | 2900 | 2.8 | 7 |
| YC90L-2 | 1.5 | 2 | 12.4 | 2920 | 2.8 | 7 |
| YC100L-2 | 2.2 | 3 | 18.8 | 2940 | 2.6 | 7 |
| YC112M1-2 | 3 | 4 | 21.4 | 2900 | 2.2 | 7 |
| YC112M2-2 | 3.7 | 5 | 24.8 | 2900 | 2.2 | 7 |
| YC711-4 | 0.12 | 0.16 | 1.88 | 1400 | 3 | 9 |
| YC712-4 | 0.18 | 0.25 | 2.49 | 1400 | 2.8 | 7 |
| YC80A-4 | 0.25 | 0.3 | 3.1 | 1410 | 3 | 6 |
| YC80B-4 | 0.37 | 0.5 | 4.1 | 1420 | 3 | 6 |
| YC80C-4 | 0.55 | 0.75 | 5.6 | 1430 | 3 | 6 |
| YC90S-4 | 0.75 | 1 | 8.3 | 1440 | 2.8 | 6.5 |
| YC90L-4 | 1.1 | 1.5 | 11.2 | 1450 | 2.8 | 6.5 |
| YC100L-4 | 1.5 | 2 | 12.5 | 1460 | 2.8 | 6.5 |
| YC112M-4 | 2.2 | 3 | 18.3 | 1470 | 2.6 | 6.5 |
| YC132SA-4 | 3 | 4 | 19 | 1460 | 2.2 | 6.5 |
| YC132SB-4 | 3.7 | 5 | 22 | 1460 | 2.2 | 6.5 |
| YC132M1-4 | 5.5 | 7.5 | 32.5 | 1460 | 2 | 6.5 |
| YC132M2-4 | 7.5 | 10 | 40 | 1460 | 2 | 6.5 |
Detailed Images
Product Show
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors etc.
Factory Show
Certifications
Packing & Shipping
Exhibition
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do:
1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
For Sample:
According to your design, sample will be offer !!!
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2.Good Service: We treat clients as friend.
3.Good Quality: We have strict quality control system, good reputation in the market.
4. Fast & Cheap Delivery: We have big big discount from forwarder.
