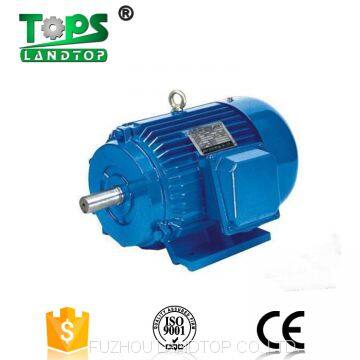

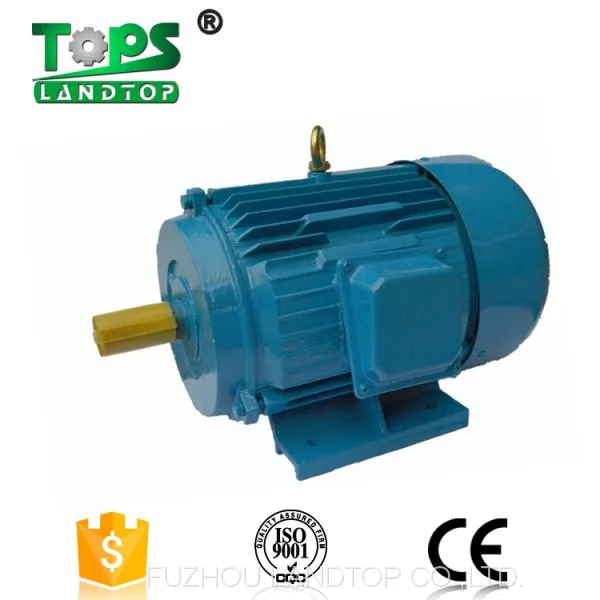

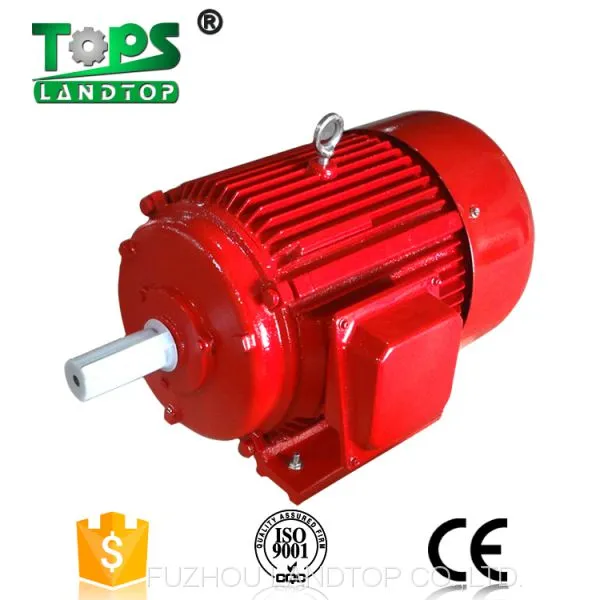

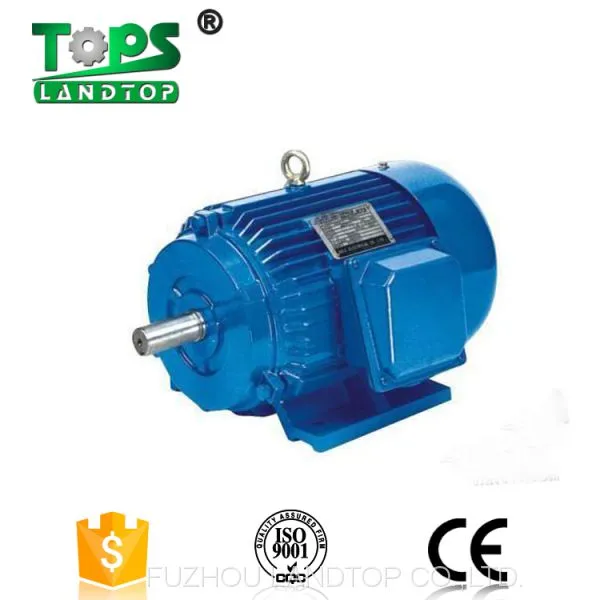

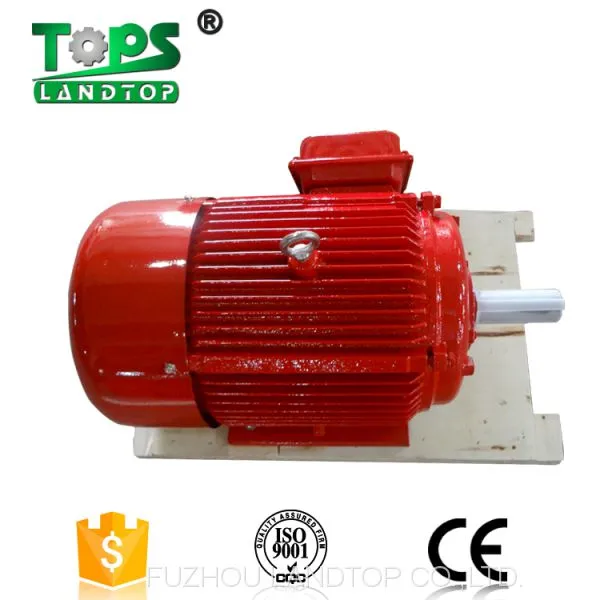

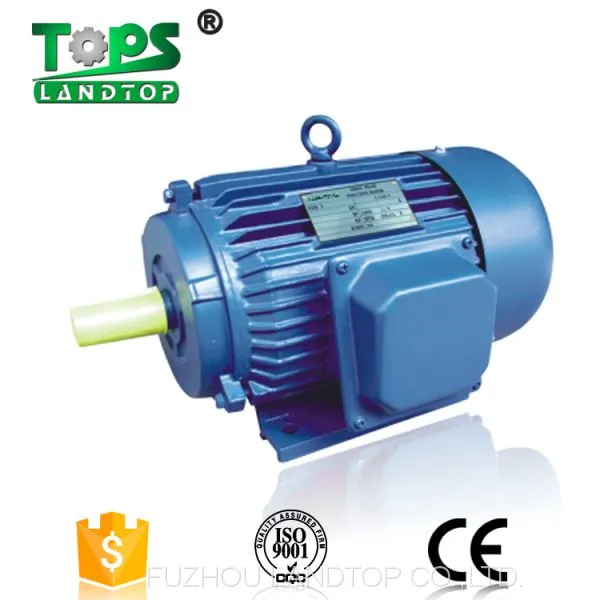

Y series three phase 11kw 15hp induction electric motor
Y2 series three-phase induction motors, developed with new techniques, are renewal and upgrading products of Y series. Y2 series motors can be widely used as driving equipment of various machinery, such as, machine tools, blowers, pumps,compressors, transporters, agricultural and food processing.
| TECHNICAL DATA | Output | Full load | ||||
| kW | HP | Current | Speed | Eff | Power | |
| Model | (A) | (r/min) | (%) | Factor | ||
| 380V 50Hz Synchronous Speed 3000 r/min (2 poles) | ||||||
| Y2-631-2 | 0.18 | 0.25 | 0.53 | 2720 | 65 | 0.8 |
| Y2-632-2 | 0.25 | 0.34 | 0.69 | 2720 | 68 | 0.81 |
| Y2-711-2 | 0.37 | 0.5 | 0.99 | 2740 | 70 | 0.81 |
| Y2-712-2 | 0.55 | 0.75 | 1.4 | 2740 | 73 | 0.82 |
| Y2-801-2 | 0.75 | 1 | 1.83 | 2830 | 75 | 0.83 |
| Y2-802-2 | 1.1 | 1.5 | 2.58 | 2830 | 77 | 0.84 |
| Y2-90S-2 | 1.5 | 2 | 3.43 | 2840 | 79 | 0.84 |
| Y2-90L-2 | 2.2 | 3 | 4.85 | 2840 | 81 | 0.85 |
| Y2-100L-2 | 3 | 4 | 6.31 | 2870 | 83 | 0.87 |
| Y2-112M-2 | 4 | 5.5 | 7.1 | 2890 | 85 | 0.88 |
| Y2-132S1-2 | 5.5 | 7.5 | 11 | 2900 | 86 | 0.88 |
| Y2-132S2-2 | 7.5 | 10 | 14.9 | 2900 | 87 | 0.88 |
| Y2-160M1-2 | 11 | 15 | 28.8 | 2930 | 88 | 0.89 |
| Y2-160M2-2 | 15 | 20 | 34.7 | 2930 | 89 | 0.89 |
| Y2-160L-2 | 18.5 | 25 | 34.7 | 2930 | 90 | 0.9 |
| Y2-180M-2 | 22 | 30 | 41 | 2940 | 90 | 0.9 |
| Y2-200L1-2 | 30 | 40 | 55.5 | 2950 | 91.2 | 0.9 |
| Y2-200L2-2 | 37 | 50 | 67.9 | 2950 | 92 | 0.9 |
| Y2-225M-2 | 45 | 60 | 82.3 | 2970 | 92.3 | 0.9 |
| Y2-250M-2 | 55 | 75 | 101 | 2970 | 92.5 | 0.9 |
| Y2-280S-2 | 77 | 100 | 134 | 2970 | 93 | 0.9 |
| Y2-280M-2 | 90 | 125 | 160 | 2970 | 93.8 | 0.91 |
| 380V 50Hz Synchronous Speed 1500 r/min (4 poles) | ||||||
| Y2-631-4 | 0.12 | 0.16 | 0.42 | 1310 | 57 | 0.72 |
| Y2-632-4 | 0.18 | 0.25 | 0.63 | 1310 | 60 | 0.73 |
| Y2-711-4 | 0.25 | 0.34 | 0.79 | 1330 | 65 | 0.74 |
| Y2-712-4 | 0.37 | 0.5 | 1.12 | 1330 | 67 | 0.75 |
| Y2-801-4 | 0.55 | 0.75 | 1.57 | 1390 | 71 | 0.75 |
| Y2-802-4 | 0.75 | 1 | 2.03 | 1390 | 73 | 0.76 |
| Y2-90S-4 | 1.1 | 1.5 | 2.89 | 1400 | 75 | 0.77 |
| Y2-90L-4 | 1.5 | 2 | 3.7 | 1400 | 78 | 0.79 |
| Y2-100L1-4 | 2.2 | 3 | 5.16 | 1430 | 80 | 0.81 |
| Y2-100L2-4 | 3 | 4 | 6.78 | 1430 | 82 | 0.82 |
| Y2-112M-4 | 4 | 5.5 | 8.8 | 1440 | 84 | 0.82 |
| Y2-132S-4 | 5.5 | 7.5 | 11.7 | 1440 | 85 | 0.83 |
| Y2-132M-4 | 7.5 | 10 | 15.6 | 1440 | 87 | 0.84 |
| Y2-160M-4 | 11 | 15 | 22.3 | 1460 | 88 | 0.84 |
| Y2-160L-4 | 15 | 20 | 30.1 | 1460 | 89 | 0.85 |
| Y2-180M-4 | 18.5 | 25 | 36.5 | 1470 | 90.5 | 0.86 |
| Y2-180L-4 | 22 | 30 | 43.2 | 1470 | 91 | 0.86 |
| Y2-200L-4 | 30 | 40 | 57.6 | 1470 | 92 | 0.86 |
| Y2-225S-4 | 37 | 50 | 69.3 | 1480 | 92.5 | 0.87 |
| Y2-225M-4 | 45 | 60 | 84.7 | 1480 | 92.8 | 0.87 |
| Y2-250M-4 | 55 | 75 | 103 | 1480 | 93 | 0.87 |
| Y2-280S-4 | 75 | 100 | 140 | 1480 | 93.8 | 0.87 |
| Y2-280M-4 | 90 | 125 | 167 | 1490 | 94.2 | 0.87 |
If need 6 or 8 poles, pls contact us online!
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors etc.
The procedure we make
1. Stamping of lamination
2. Rotor die-casting
3. Winding and inserting – both manual and semi-automatically
4. Vacuum varnishing
5. Machining shaft, housing, end shields, etc…
6. Rotor balancing
7. Painting – both wet paint and powder coating
8. assembly
9. Packing
10. Inspecting spare parts every processing
11. 100% test after each process and final test before packing.
Directly Manufacturer - Over 10 years experience in electric motor field
1.100% Copper wire and output
2.OEM Service
3.CE/ISO Approved
4.20-30days lead time
5.We are Alibaba Assessed Gold Supplier and Trade Assurance
6.Best production capability, best quality control, best service, also best price
An electric motor from materials to full assemble motor, must pass 15 times check, and 100% testing of output power & voltage & electric current & non-load, 50% load, 75% load, 100% load, and also check the nameplate and packing. Finally shipping to our customers.
Certificates & Exhibition
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
