Home > Products > Alternator > LANDTOP ST STC 10kw brush alternator 100% output power generator

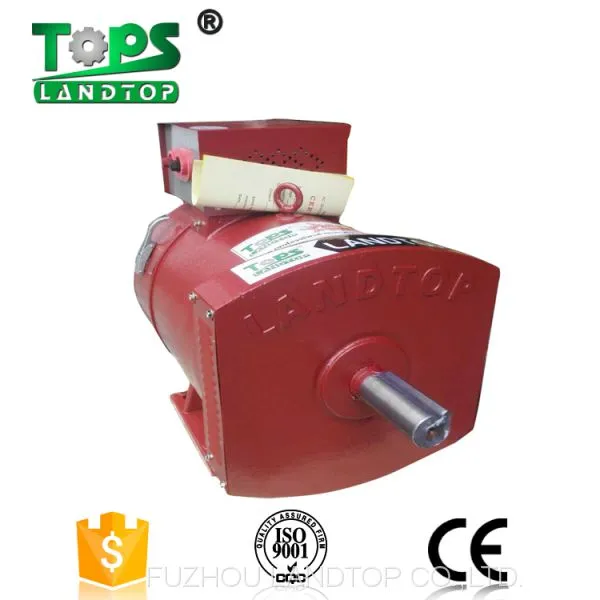

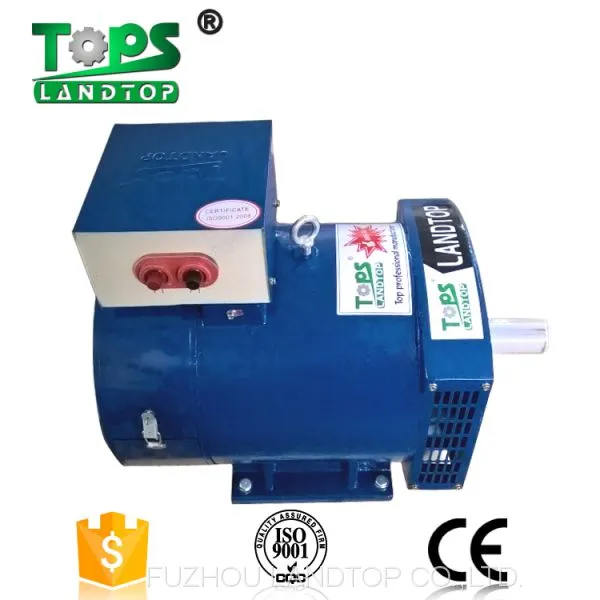

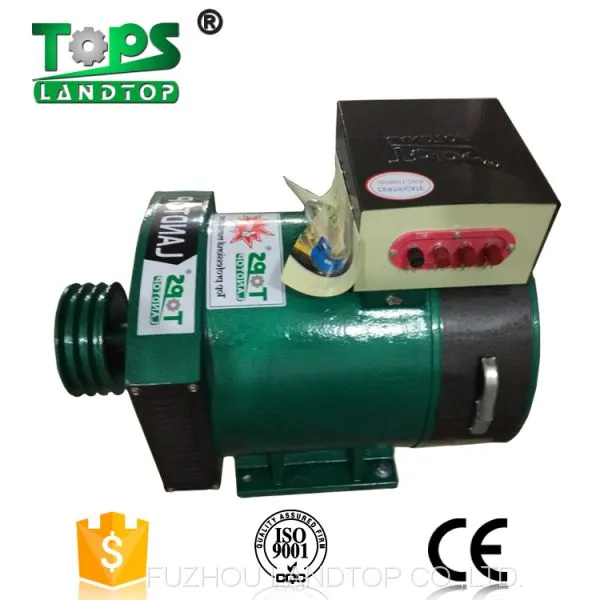

LANDTOP ST STC 10kw brush alternator 100% output power generator
- 1000 Piece / Pieces per Month
- FUZHOU
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Product Details
Brand Name: | LANDTOP, TOPS | Place of Origin: | China | Model Number: | ST/STC |
Rated Current: | depends | Output Type: | AC Single Phase | Speed: | 1500/1800rpm |
Frequency: | 50/60hz | Rated Voltage: | 220v-440v | Rated Power: | 2-75kw |
Product Description
LANDTOP ST STC 10kw brush alternator 100% output power generator
Alternator Features
- Brush, Harmonic excitation system Alternator, Easy operation and simple maintenance
- IP21, Insulation Class B Alternator
- Usage: As a electric power source for lighting purpose in Town, Countryside, work-sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 230V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15℃ ~ 40 ℃)
Relative air damping: not exceed 90%
1/3-PH, 50HZ@1500RPM, 400/230V(Also can be made according to customers’ special requirements).
Key words
dynamo prices 10kva dynamo 220v ac dynamo
Model | Output (kW) | Current(A) | Voltage(V) | Power factor (cos) | Pole number | Speed (r.p.m) | ||
Series Connection | Parallel Connecion | Series Connection | Parallel Connection | |||||
ST-2 | 2 | 8.7 | 17.4 | 230 | 115 | 1.0 | 4 | 1500 |
ST-3 | 3 | 13 | 26 | 230 | 115 | 1.0 | 4 | 1500 |
ST-5 | 5 | 21.8 | 43.5 | 230 | 115 | 1.0 | 4 | 1500 |
ST-7.5 | 7.5 | 32.6 | 65.2 | 230 | 115 | 1.0 | 4 | 1500 |
ST-10 | 10 | 43.5 | 87 | 230 | 115 | 1.0 | 4 | 1500 |
ST-12 | 12 | 52.2 | 104 | 230 | 115 | 1.0 | 4 | 1500 |
ST-15 | 15 | 65.3 | 130 | 230 | 115 | 1.0 | 4 | 1500 |
ST-20 | 20 | 87 | 174 | 230 | 115 | 1.0 | 4 | 1500 |
ST-24 | 24 | 104 | 208 | 230 | 115 | 1.0 | 4 | 1500 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong (Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
The procedure we make
1. Stamping of lamination
2. Rotor die-casting
3. Winding and inserting – both manual and semi-automatically
4. Vacuum varnishing
5. Machining shaft, housing, end shields, etc…
6. Rotor balancing
7. Painting – both wet paint and powder coating
8. assembly
9. Packing
10. Inspecting spare parts every processing
11. 100% test after each process and final test before packing.
Directly Manufacturer - Over 10 years experience in alternator field
♥ 100% Copper wire and output
♥ OEM Service
♥ CE/ISO Approved
♥ 20-30days lead time
Certificates & Exhibition
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
