10 PointS 75inch Multi-touch Infrared Touch Frame, ir Touch Panel, Infrared Touch Screen Overlay, for Touch Screen Monitor, Lcd/led, Smart TV, Tea Table

Guangzhou zhanchu technology ltd is a professional manufacturer and supplier of touch screen in China. We can provide infrared touch screen, projected ir touch screen, touch monitor, educational equipment and relative touch solutions for you.

Ratio: 16:9

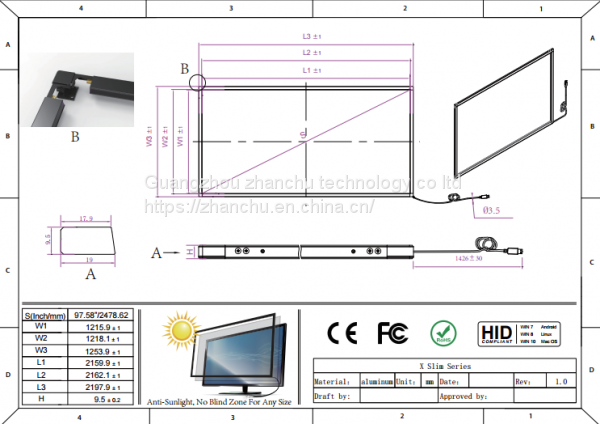

Dimension: 19mm width, 8.7 thickness (frame only, without glass, Tube packing, simple installation, without driver, when connection works)

Supports 10 /20/40pcs touch points ,standard is 10points,if want more pls contact with us

  Power Supply: Single USB Connection

No Ghost Point ,Drift-free , Flexible.

Performance Touch Mode : Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out

 Flexible; full mouse functionality with the touch of your finger or any object , Any touch, finger, gloved hand or pointer (with diameter ≥ 5mm)

Working life: click on the 8,000,000

Operating Systems : Windows 7, 8,10,Vista, XP, Mac OS, Linux android

Resolution 32768*32768

up to 40 touch points Linearity Deviation 1mm

Fault Tolerance :Workable even 75% sensors are damaged

 Frames per Second :Up to 450 fps

 Typical Response :Time 3-10ms

Light Transmission :100% without glass，

Protocols: HID, TUIO, Flash

Re-development :Provide free SDK, support C/C++, C#, Java etc.

Certification: FCC, CE

Warranty period: one year warranty.

Warranty for all series multi-touch overlay excludes coverage for damage resulting from accident, liquid damage, disassembly, unauthorized service and unauthorized modifications.

pls give me your EORI or VAT number when you confirm  the order.

Pls provide your English address

We can accept custom-made engineering screens of all sizes.
