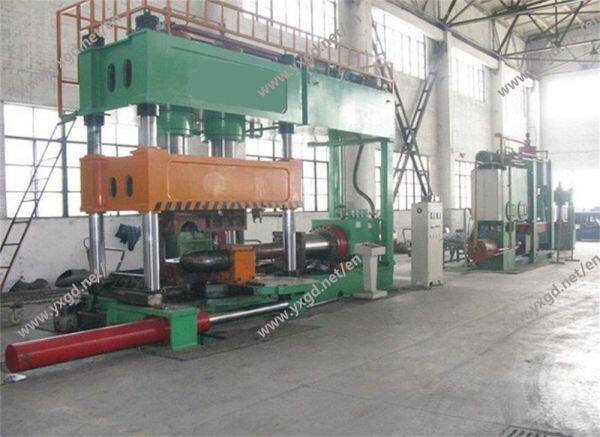

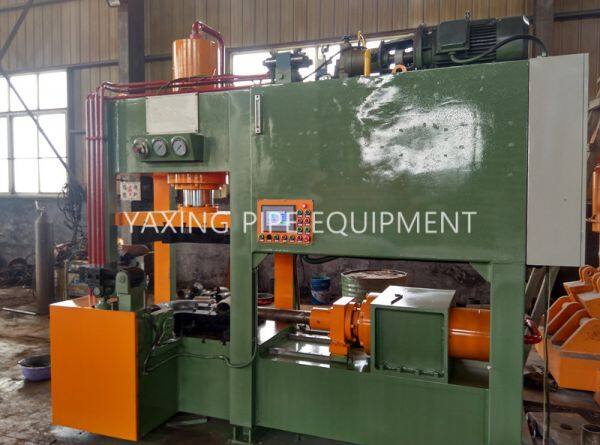

Hydraulic Elbow Cold Forming Machine

1. Stainless Steel Elbow Cold Forming Machin introduction:

It is the special machine that is mainly suitable for the production of stainless steel elbows ( 90°), the forming method is that the side ejector pin pushes the straight pipe into the mandrel forming elbow in the main mold, and is equipped with an automatic stripping device to take off the elbow from the mandrel, the electrical system adopts PLC control, and the hydraulic system adopts a cartridge valve. Easy maintenance, simple operation and high production efficiency. It can achieve semi-automatic operation,which can meet the production needs of customers.

2.Elbow Cold Forming Machine Main Features:

Mandrel type cold elbow making machine: this equipment is mainly used for cold pushing forming of stainless steel  elbow, equipped with semi-automatic mechanical stripper. Including: machine body, mould closing cylinder, side push cylinder, demoulding mechanism, hydraulic station and pipeline, electrical control system and so on.

 Forming principle: the tube billet is in the mould cavity and locked by external force, it is pushed from the guide section into the shape-forming cavity with the inner core by the hydraulic push rod to form bending . and adopts the stripper to demould. This machine adopts PLC control.
