wholesale price stainless steel 3kw auto vacuum hopper loader
| ||
| | |

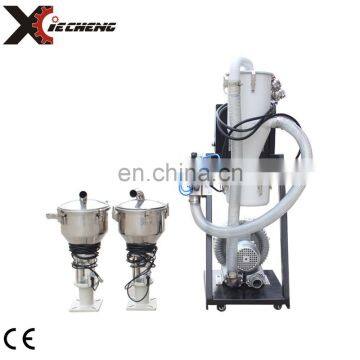

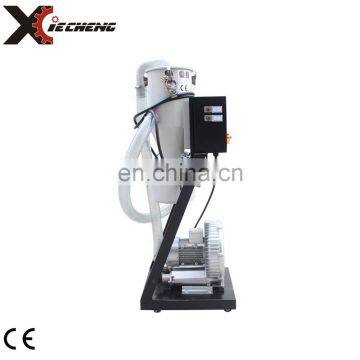

Xiecheng Loader with 2 hopper XC-XY900G2
1. Specially designed for material of large quantity;
2. High power motor with large-sized hose and hopper
3. Microcomputer controlled with alarm for overload an lack of material;
3. Small footprint, easy to operate;
4. With CE authentication.

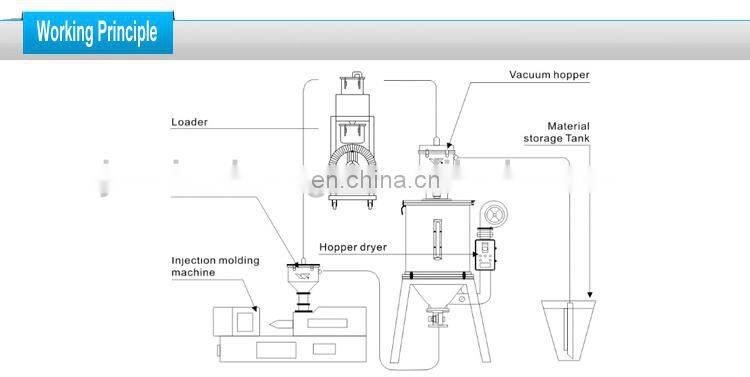

It conveys plastic granules to the injection moulding machine with ease. It is easy to operate and its filter system makes it possible to be used for a long time. An independent filter device facilitates dust removal and noise reducing installations for silent operations.
The machines are available in conveying capacity ranges of 300Kg/hr. Vacuum Auto-Loader, has found a large number of users swear by the qualitative parameters of this product.
Conveying capacity and loading distance are tested with ABS materials ,the exactly specification will depend on the proportion,shape ,conveying length,height, pipe property and specification setting.
Heat-resistant(160degree )pipes should be used when conveying hot material
product specification
Model | XC-XY900G2 |
Motor | 1.5 |
Conveying capacity(kg/hr) | 440 |
Loading distance(m) | 4 |
Static wind pressure(mm/H2O) | 2400 |
Reservoir volume(L) | 10/7.5×2 |
Conveying tube inner dim | φ38 |
Specification of the attached hoses | φ38mm×4m 4pcs |
Dimensions(cm) | 61×37×67 |
Net weight(kg) | 55 |

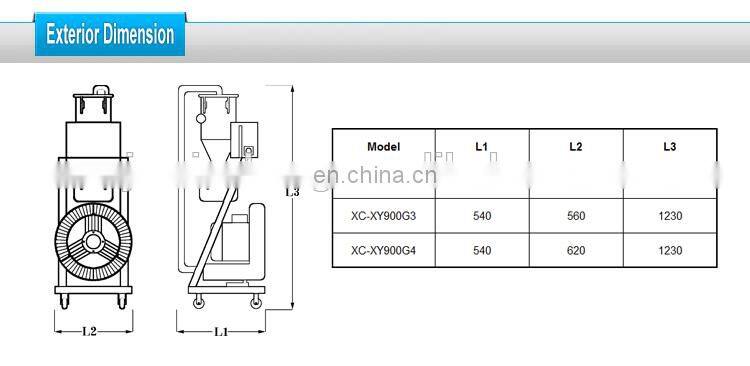

Model | XC-XY900G2 | XC-XY900G3 | XC-XY900G4 |
Motor | 1.5 | 2 | 3 |
Conveying capacity(kg/hr) | 440 | 500 | 590 |
Loading distance(m) | 4 | 4 | 5 |
Static wind pressure(mm/H2O) | 2400 | 2400 | 2400 |
Reservoir volume(L) | 10/7.5×2 | 10/7.5×3 | 10/7.5×4 |
Conveying tube inner dim | φ38 | φ38 | φ38 |
Specification of the attached hoses | φ38mm×4m 4pcs | φ38mm×4m 6pcs | φ38mm×4m 8pcs |
Dimensions(cm) | 61×37×67 | 54×56×123 | 54×62×123 |
Net weight(kg) | 55 | 58 | 66 |
