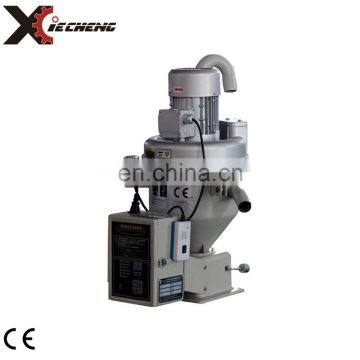

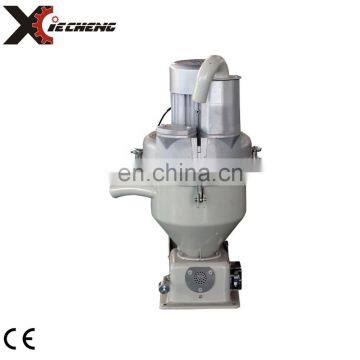

automatic plastic material suction machine
What we PROVIDE with XIECHENG Industrial Water Chiller ?
1. A-class compressors from famous brands, high efficient shell condensers and evaporators*
-- excellent cooling, quiet with low electric consumption.
2. Microprocessor control--easy to operate;
3. Special open type reservoir tank with stainless steel--easy to clean and maintain;
4. Well designed and reasonable Pipelines—ensures power supply and saves energy;
5. Precise electronic thermostatic controller--accurately maintains temperature range from 30C to 50 0C*;
6. Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system--Safe and durable;
7. Liquid crystal display showing temperatures of outlet and inlet chill water--provides visualized and direct setting;
9. Single, double or quadruple compressors combination available--economic and efficient;
10. Industrially designed--elegant and economic with friendly connections between human & machine.
“*”: Refers to depending on customer’s requirement; Ultra low temperature down to -30 0C available with Ultra Cooling Models.
Product Specification
Model | XC-X400G | |
Motor | Type | Carbon brush |
Specification | 0.75kw/1hp 3φ | |
Conveying capacity(kg/hr) | 330 | |
Loading distance(m) | 4 | |
Static wind pressure(mm/H2O) | 1400 | |
Reservoir volume(L) | 7.5 | |
Conveying tube inner dim | φ38 | |
Specification of the attached hoses | φ38×4 1pcs | |

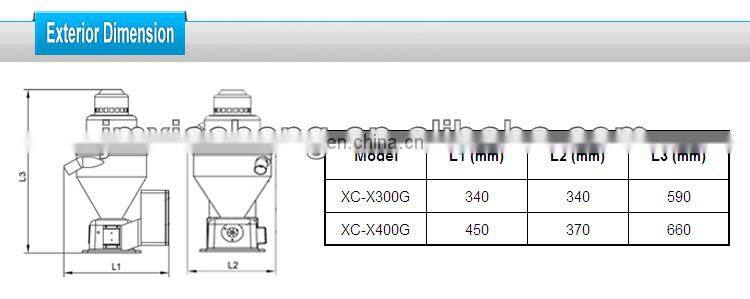

Dimensions(mm) | 450*370*660 | |
Net weight(kg) | 27 | |
| Model | XC-X300G | XC-X400G | |
| Motor | Type | Carbon Brush | Induction |
| Specification | 1.1kw/1.3hp 1φ | 0.75kw/1hp 3φ | |
| Conveying capacity(kg/hr) | 300 | 330 | |
| Loading distance(m) | 3.5 | 4 | |
| Static wind pressure(mm/H2O) | 1300 | 1400 | |
| Reservoir volume(L) | 7.5 | 7.5 | |
| Conveying tube inner diameter(mm) | φ38 | φ38 | |
| Specification of the attached hoses | φ38mm×3.5m 1pcs | φ38mm×4mm 1pcs | |
| Dimensions(cm) | 34×34×59 | 45×37×66 | |
| Approx. Net weight (kg) | 12 | 27 | |
| | | |
Carbon brush motor cabie remote controller auto plastic material loader | Vacuum hopper auto loader with 7.5HP | Plastic Hopper Auto Loader for Injection Molding Machine |
