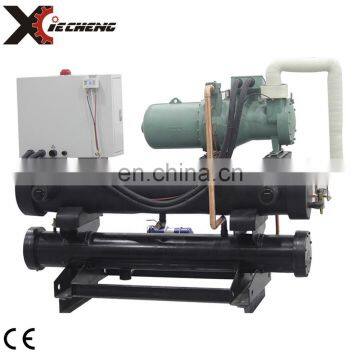

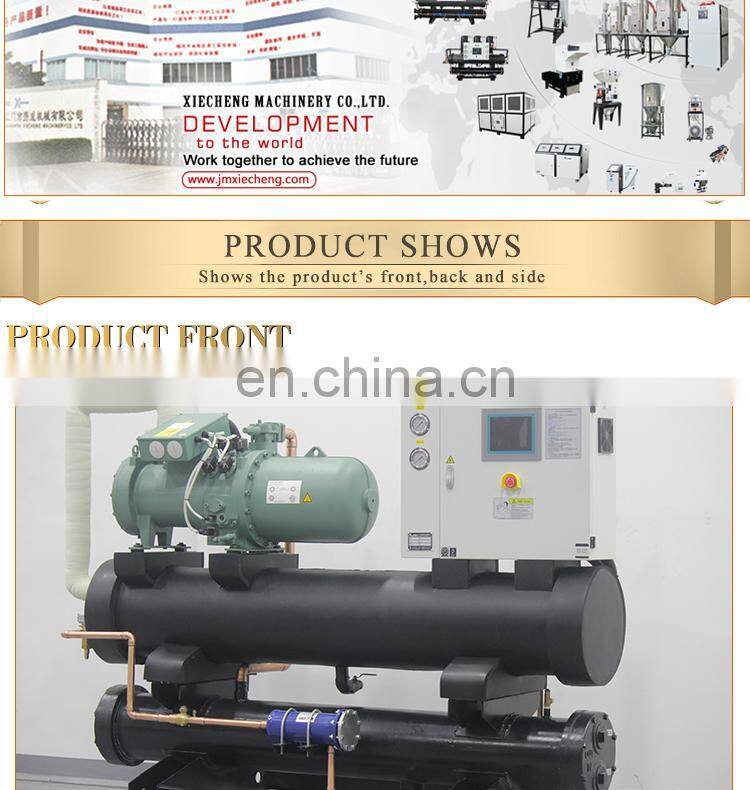

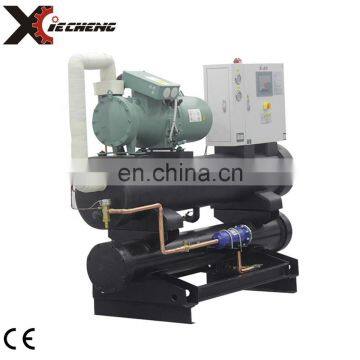

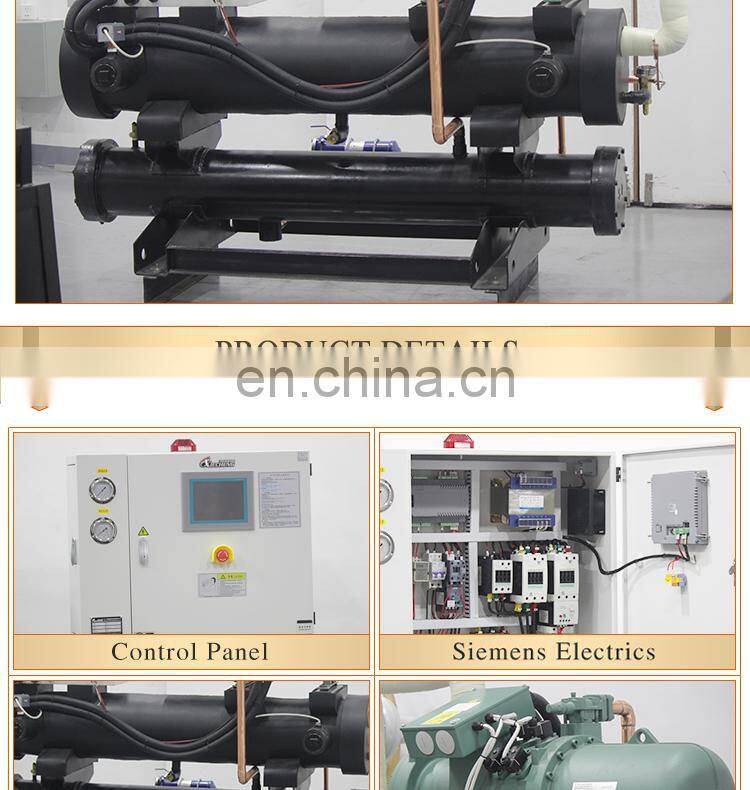

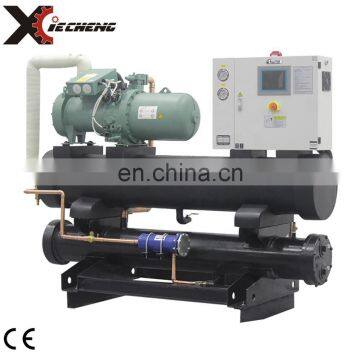

Semi-Hermetic screw air to water chiller machine
open type chillersopen type chillers

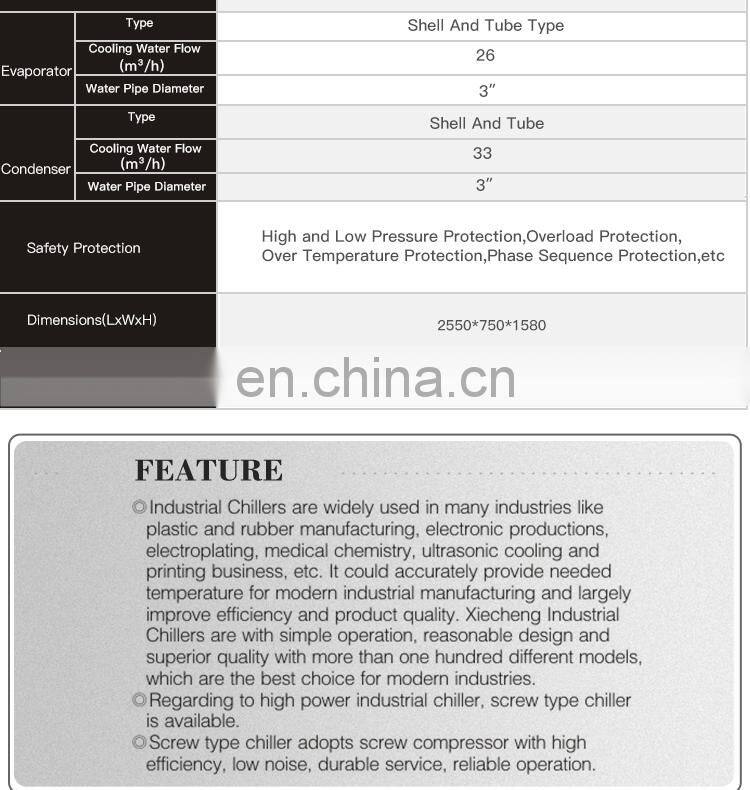

Industrial Chillers are widely used in many industries like plastic and rubber manufacturing,electronic productions,electroplating,medical chemistry,ultrasonic cooling and printing business,etc.It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality.Xiecheng Industrial Chillers are with simple operation,reasonable design and superior quality with more than one hundred different models,which are the best choice for modern industries.
Regarding to high power industrial chiller,screw type chiller is available.
Screw type chiller adopts screw compressor with,high effciency,low noise,durable service,reliable operation.

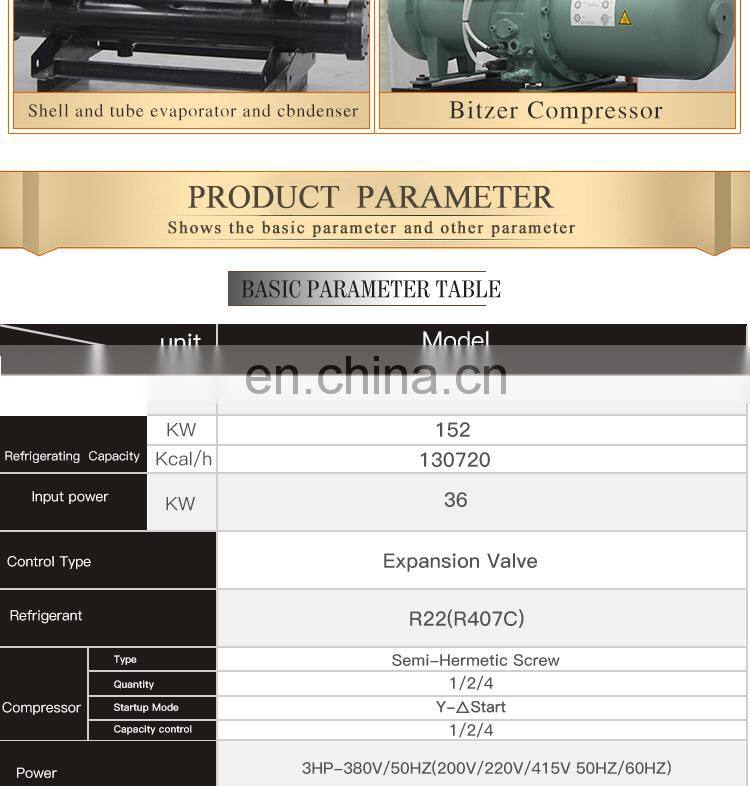

| Model | UNIT | XC-L30WS | XC-L40WS | XC-L50WS | XC-L60WS | XC-L80WS | |
| Refrigerating capacity | kw | 88 | 116.7 | 146.4 | 172 | 230 | |
| kcal/h | 75680 | 100362 | 125904 | 146716 | 197800 | ||
| Input Power | Kw | 22 | 30.9 | 37.9 | 45.8 | 60 | |
| Control type | expansion valve | ||||||
| Refrigerant | R22(R407C) | ||||||
| Compressor | Type | Semi-hermetic Screw | |||||
| quantity | 1 | 2 | |||||
| Startup mode | Y | ||||||
| Capacity control | 0-25-50-75-100 | ||||||
| Power | 3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | ||||||
| evaporator | Type | Shell and tube type | |||||
Cooling water flow (m3/h) | 19 | 21 | 26 | 30 | 39 | ||
inet and outlet pipe caliber(Inch) | 3" | 3" | 3" | 3" | 4" | ||
| condenser | Type | Shell and tube | |||||
Cooling water flow (m3/h) | 21 | 26 | 33 | 40 | 45 | ||
inet and outlet pipe caliber(Inch) | 3" | 3" | 3" | 3" | 4" | ||
| safety protector | high and low pressure protection,overload protection, overtemperature protection,phase sequence protection,etc. | ||||||
| Dimensions(L*W*H) | mm | 1980*750*1580 | 2350*750*1580 | 2550*750*1580 | 2550*985*1600 | 3600*765*1650 | |
| Net Weight | KG | 750 | 850 | 950 | 1150 | 1580 | |
| unit exchange | 1kw=860Kcal/hr 1RT=3024Kcal/hr 1Btu/hr=0.252Kcal/hr | ||||||
| | |
Cooling System Plastic Industry Water Chiller | XieCheng CE standard 10HP Plastic processing Industrial Air Cooled Water Chiller | high effective cooling capacity screw chiller for injection factory |
