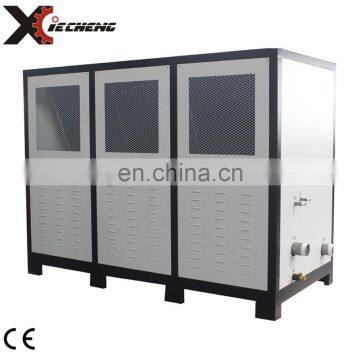

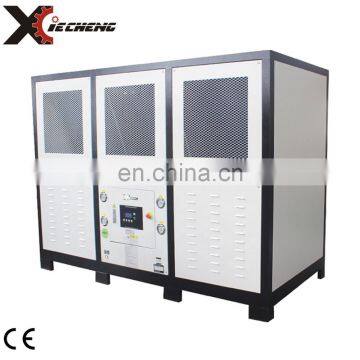

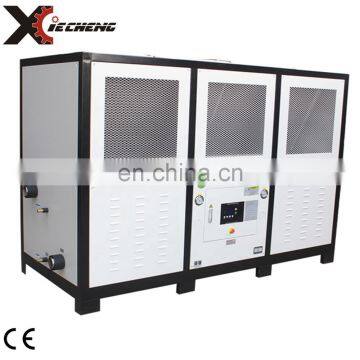

milk cooling air cooled water chiller with scroll compressor

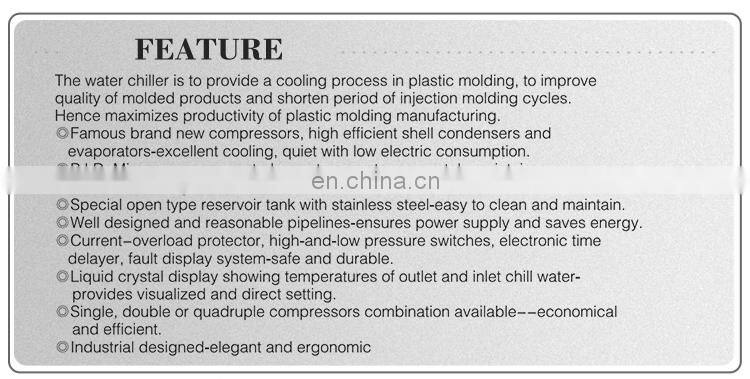

FEATURE:
The water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles.
Hence maximizes productivity of plastic molding manufacturing.

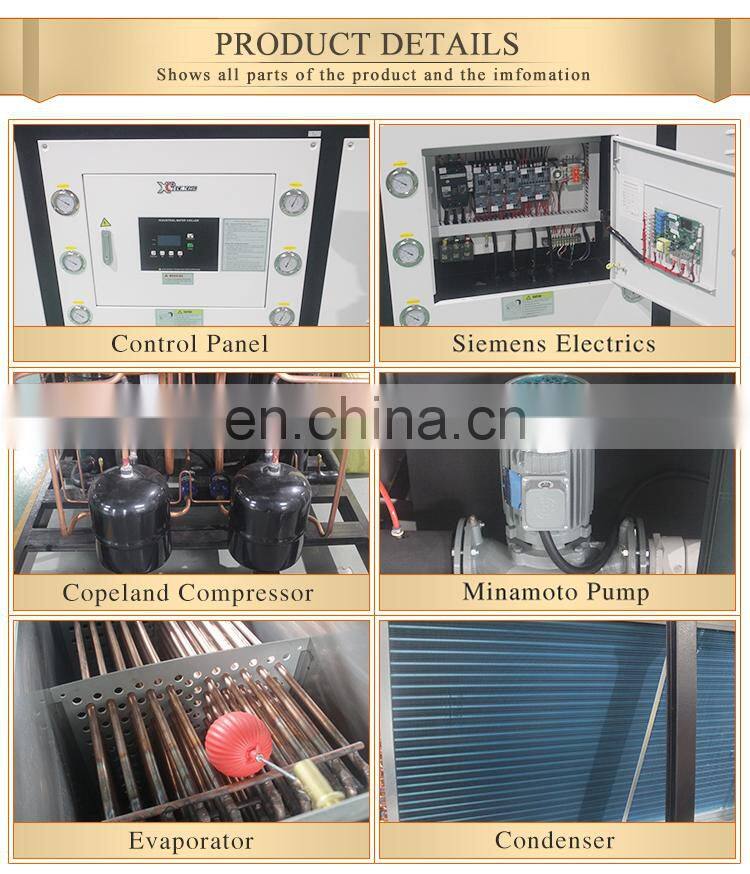

1,Famous brand new compressors, high efficient shell condensers and evaporators-excellent cooling, quiet with low electric consumption.
2,P.I.D. Microprocessor control-easy to operate, accurately maintains temperature range from 3℃ to 50℃.
3,Special open type reservoir tank with stainless steel-easy to clean and maintain.
4,Well designed and reasonable pipelines-ensures power supply and saves energy.
5,Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system-safe and durable.
6,Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.
7,Single, double or quadruple compressors combination available--economical and efficient.
8,Industrial designed-elegant and ergonomic

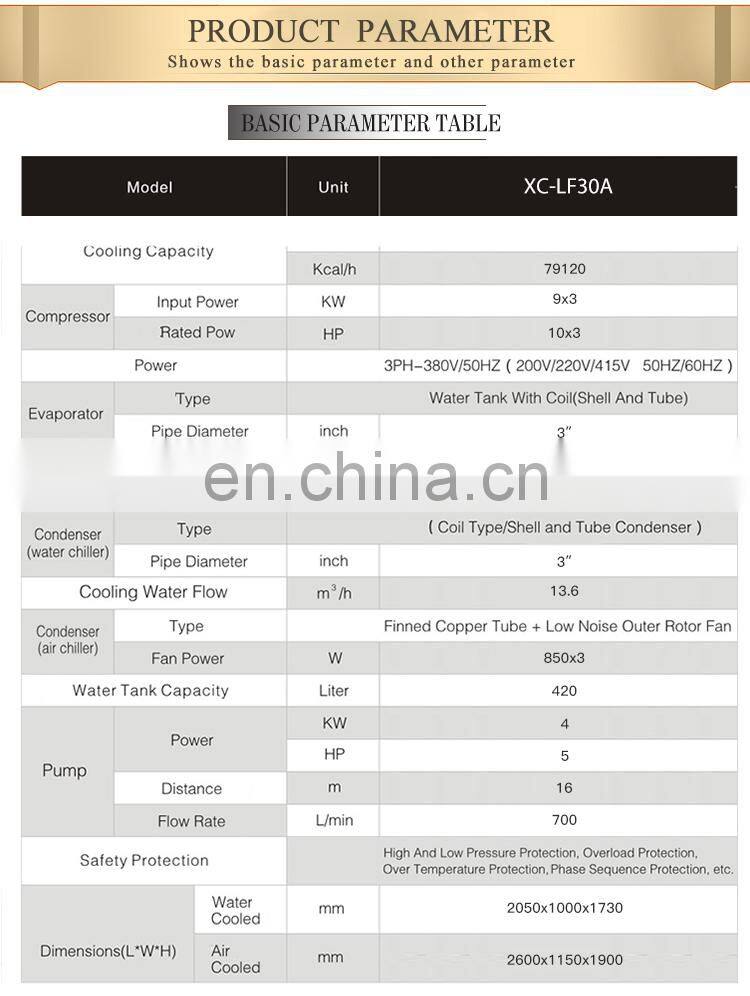

Model | UNIT | XC-L20W | XC-L30W | XC-L40W | ||
XC-LF20A | XC-LF30A | XC-LF40A | ||||
Cooling Capacity | Kw | 61 | 92 | 122 | ||
Kcal/h | 52460 | 79120 | 104920 | |||
Compressor | Input Power | Kw | 9×2 | 9×3 | 9×4 | |
Rated Power | Hp | 10×2 | 10×3 | 10×4 | ||
Power |
| 3PH-380V/50HZ | ||||
Evaporator | Type | Water Tank with Coil(Shell and Tube) | ||||
| Pie Diameter | lnch | 2.5” | 3” | 3” | |
Refrigerant | Type | Shell Condenser | ||||
| Quantity | Kg | 11 | 12 | 18 | |
Water Cooled Condenser | Type | Shell Condenser | ||||
Pie Diameter | Inch | 2.5” | 3” | 3” | ||
Cooling water flow | M³/h | 8.84 | 13.6 | 17.75 | ||
Air Cooled Condenser | Type | Finned Copper Tube + Low Noise Outer Rotor Fan | ||||
Fan Power | KW | 0.46×3 | 0.85×3 | 0.46×6 | ||
Water Tank Capacity | Liter | 350 | 420 | 420 | ||
Pump | Power | Kw | 2.2 | 4 | 5.5 | |
hp | 3 | 5 | 7.5 | |||
Distance | m | 16 | 16 | 16 | ||
Fiow Rate | l/min | 360 | 700 | 700 | ||
Safety Protection | High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc. | |||||
Dimensions(L*W*H) | Water Cooled | mm | 1880*880*1650 | 2050*1000*1730 | 2150*1080*1950 | |
Air Cooled | mm | 2150*1000*1780 | 2400*1150*1800 | 2600*1150*1900 | ||
Weight | Water Cooled | KG | 800 | 1150 | 1200 | |
Air Cooled | KG | 835 | 1080 | 1125 | ||
| | |
Cooling System Plastic Industry Water Chiller | XieCheng CE standard 10HP Plastic processing Industrial Air Cooled Water Chiller | high effective cooling capacity screw chiller for injection factory |
