Gantry Nesting Table CNC Cutting Machine For Woodworking Furniture

Gantry Nesting Table CNC Cutting Machine For Woodworking Furniture thumbnail-1
Gantry Nesting Table CNC Cutting Machine For Woodworking Furniture photo-1
US$ 10000 - 13000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZK/CHANSON
Place of Origin:
China
Model Number:
MK40B
Contact Supplier Request Quote Chat Now
Foshan Zk (chanson) Machinery. Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shunde
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZK/CHANSON
Place of Origin China
Model Number MK40B
Use Woodworking
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12months
Weight 2000kg
Dimension(L*W*H) 8000×2300×2150mm
Condition New
Voltage 380v 50hz
Usage sawing
Power(W) 31.5kw
Type Table Panel Saw
Style Horizontal
Introduction:

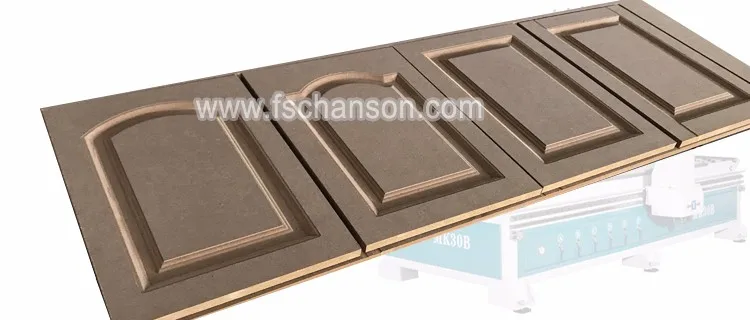

Perfect for large or workpieces of panel or solid wood furniture and doors,artificial marble countertops,light metal pieces.

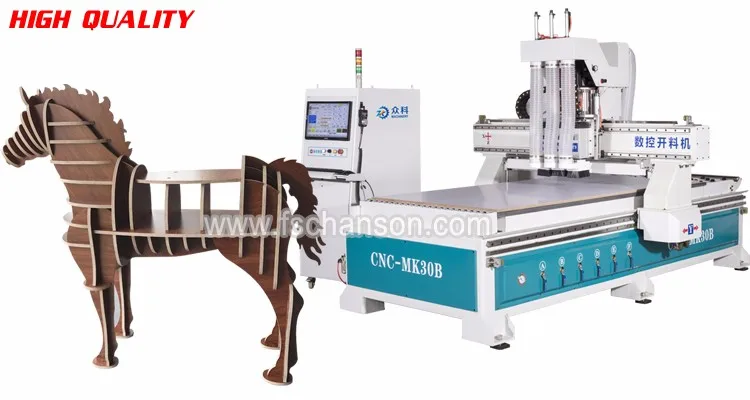

TECHNICAL DATA OF MK30B CNC CUTTING MACHINE
Worktable size
1300×2550mm
X , Y, Z working area stroke
1220×2440×200mm
Processing precision
±0.1mm
Worktable
Vaccum worktable
X,Y,Z Transmission
X,Y Axis: Taiwan rack gear
Z Axis: Taiwan TBI ball screw
Max. traverse speed
75m/min
Max. cutting speed
20m/min
Spindle power
6kw×3 air-cooling spindle
Spindle speed
18000rpm
Operation instruction
G-code,S-code,T-code,F-code
Working voltage
AC380V/50Hz
Operation system
Baoyuan servo(Taiwan)
Vacuum pump power
water cooling 7.5kw
Total power
28.9kw
Weight
2000kg
Overall dimensions
2300×3300×2150mm
Main Features

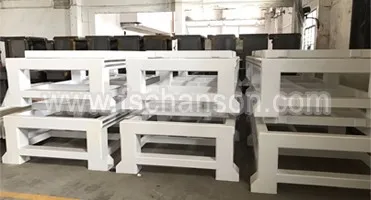

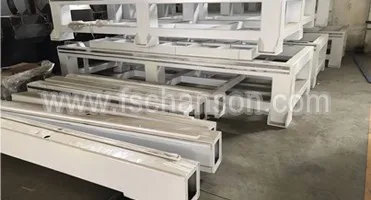

1) Machine body made by cast steel body with aging & tempering treatment, strong and durable.

2) X,Y,Z transmission use Taiwan rack gear .

3) Electrical components: Adopts Schneider brand safety, stable and reliable

4)Operation system:Baoyuan servo(Taiwan) high efficiency.


FAQ


Q1: How About After-Sale Services?
A: 1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.

Q2: Delivery Time
A: Usually, for normal model, within 30 days after get the deposit

Q4. Payment Terms
A: 1) T/T in advance
2) L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first
3) Other kinds of payment we can consider if acceptable for us

Packing & Delivery
PACKAGE:

1.Thick PE foam inner, plastic film outside, in case of damage during transportation

2.Seaworthy wooden case as the general export package should be additional charged

DELIVERY TIME:

30 days after confirming order and received the deposit,detail delivery date should be decided according to

production season and order quantity.
