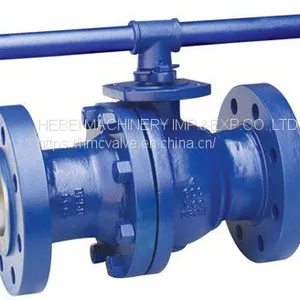

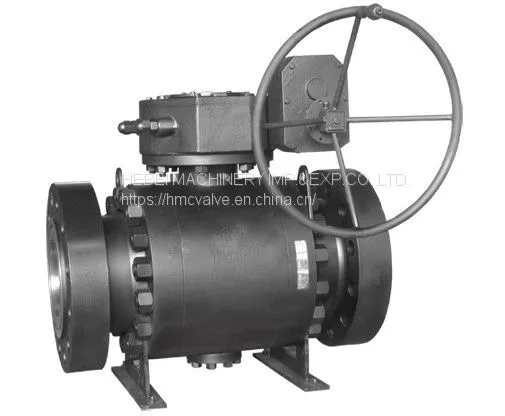

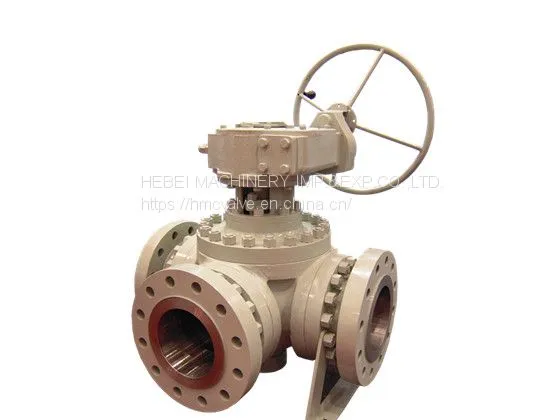

Api 6d Ball Valve
specification
Floating or Trunnion Mounted. Side /Top Entry.
Full Bore/Reduced Bore. Cast 2pcs Bolted Body /Forged 3pcs Bolted or Welded Body
Soft Insert Seat/Metal–to-Metal Seat
Anti-Blowout Stem. Fire Safe Design to API 6FA/607. Anti-static Device
Double Block & Bleed Function. With Vent and Drain Hole
Grease Injection on Stem & Seat . Extended Bonnet or Stem Optional
Design: API 6D API 608 BS5351 ASME B16.34
Size: 2"-40".
Pressure Rating: 150Lb-2500Lb
Face to Face: API 6D ,ANSI B16.10
End Connection: RF RTJ/ANSI B16.5&ANSI B16.47, BW (ANSI B16.25)
Body Material: WCB, A105, LCB, LF2,CF8,CF8M,CF3,CF3M,F304,F316,F304L, F316L ,F51.
Ball Coating: ENP,Tungsten Carbide Coat (TCC), Chrome Carbide Coat (CCC)
Test: API 6D API 598. Marking: MS SP-25
Actuation: Lever, Worm Gear, Electrical, Pneumatic, Hydraulic
