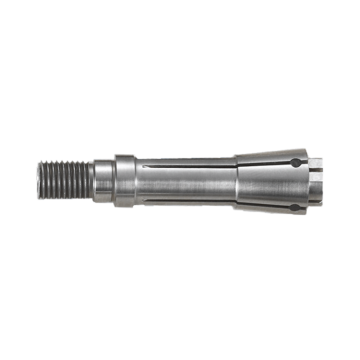

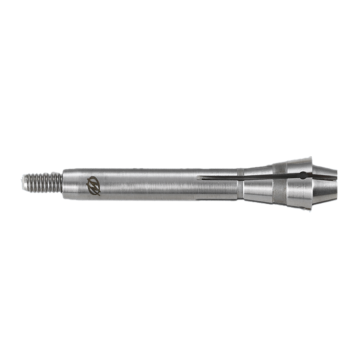

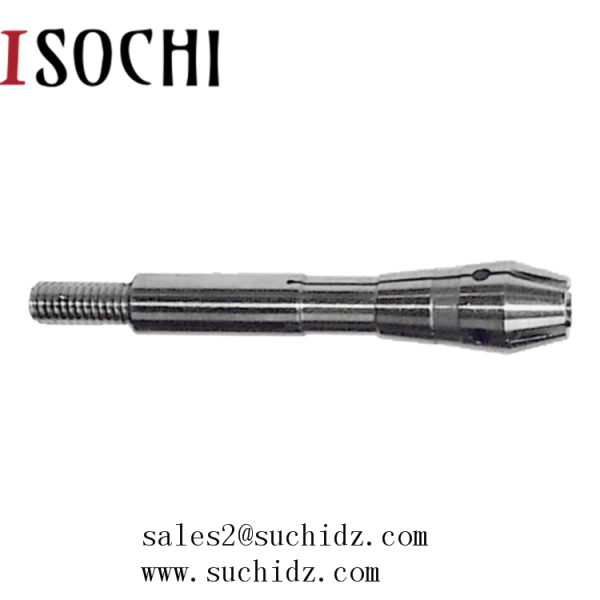

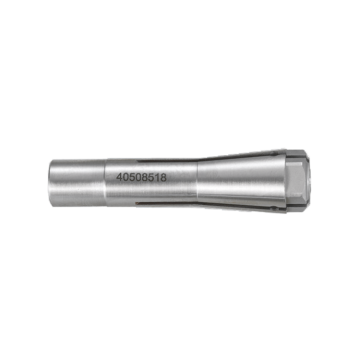

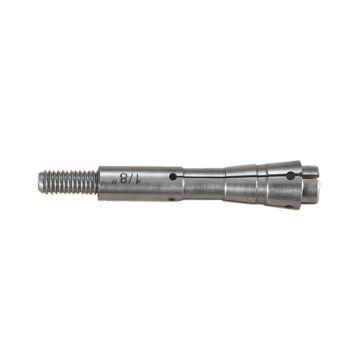

J7316A Collets & Chuck Set MT3 1331-48 Spindle Westwind Collet pneumatic cnc air collet chuck for Schmoll Hitachi Excellon Taliang Machine

J7316A Collets & Chuck Set MT3 1331-48 Spindle Westwind Collet  pneumatic cnc air collet chuck for Schmoll Hitachi Excellon Taliang Machine

What is collet?

Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.

We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.

Specifications:

Collet Maintenance:

Collet Maintenance - How Often?

It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.

ISOCHI suggest the following maintenance intervals:-

Removable collets every 100 operating hours

Bonded collets every 24 operating hours

The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.

Please contact ISOCHI if you would like advice on your particular situation.

Spindle models with removable Collet:

M320, D1199, D1201, D1251, D1263, D1303, D1331,

D1473, D1524, D1531, D1686, D1750, D1823-02R

Spindle models with bonded Collet:

D1080, D1264, D1600, D1686, D1722, D1748, D1733,

D1787, D1790, D1795, D1812, D1822, D1823-01

Removable Collet Types:

Removable Collet are either “dead stop” or “positive lock” type.

The “dead stop” type can be identified by a groove around the rear barrel of the collet.

Please ensure you use the correct maintenance instructions.

Bonded Collet – Do not remove the collet
