US$ 200 - 20,000
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
HODREAM
Model Number:
HD-C W series
Certification:
CE, ROHS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Quality Certified Hrv Heat Recovery Ventilator Ventilation Unit 295cfmUS$ 100 - 20,000MOQ: 5 Pieces -
Good Selling Heat Recovery Energy Saving Fresh Air Ecuperation SystemUS$ 200 - 3,800MOQ: 5 Pieces
-
Heat Exchanger Price With Trade AssuranceUS$ 200 - 1,000MOQ: 5 Pieces
-
Home, Commercial and Industry Heat Exchanger VentilatorUS$ 200 - 1,500MOQ: 1 Piece
-
High Efficiency Heat Recovery Air to Air Ventilation UnitUS$ 200 - 1,000MOQ: 5 Pieces
Brand Name
HODREAM
Model Number
HD-C W series
Certification
CE, ROHS
After-sales Service Provided
No overseas service provided
Warranty
one to two years
Weight
73 kgs
Dimension(L*W*H)
1110 x 880 x 388 mm
Condition
New
Voltage
220V 50Hz
Power(W)
410W
Products Parameter
| Product No. | Description | Product No. | Description | |||||||||
| main parameter of HD-C200ET ~ HD-C1000ET | ||||||||||||
| HD-C200ET | ralated voltage | 220V 50Hz | HD-C300ET | ralated voltage | 220V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air regulation | top grade | air regulation | top grade | |||||||||
| air volume (m3/h) | 100 | 150 | 200 | air volume (m3/h) | 200 | 250 | 300 | |||||
| static pressure (Pa) | 100 | 90 | 75 | static pressure (Pa) | 115 | 105 | 85 | |||||
| input power (W) | 65 | 65 | 70 | input power (W) | 95 | 99 | 105 | |||||
| Summer | temperature efficiency (%) | 76 | 75 | 75 | Summer | temperature efficiency (%) | 77 | 76 | 76 | |||
| enthalpy efficiency (%) | 59 | 58 | 58 | enthalpy efficiency (%) | 57 | 56 | 56 | |||||
| Winter | temperature efficiency (%) | 76 | 75 | 75 | Winter | temperature efficiency (%) | 77 | 76 | 76 | |||
| enthalpy efficiency (%) | 69 | 69 | 69 | enthalpy efficiency (%) | 68 | 67 | 67 | |||||
| noise (dB) | 28 | 29 | 30 | noise (dB) | 29 | 30 | 32 | |||||
| demension (mm) | 665 x 580 x 268 | demension (mm) | 745 x 600 x 268 | |||||||||
| weight (kgs) | 26 | weight (kgs) | 32 | |||||||||
| HD-C400ET | ralated voltage | 220V 50Hz | HD-C600ET | ralated voltage | 220V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air regulation | top grade | air regulation | top grade | |||||||||
| air volume (m3/h) | 200 | 300 | 400 | air volume (m3/h) | 400 | 500 | 600 | |||||
| static pressure (Pa) | 130 | 110 | 90 | static pressure (Pa) | 130 | 115 | 100 | |||||
| input power (W) | 148 | 152 | 155 | input power (W) | 186 | 190 | 198 | |||||
| Summer | temperature efficiency (%) | 77 | 77 | 76 | Summer | temperature efficiency (%) | 73 | 71 | 70 | |||
| enthalpy efficiency (%) | 55 | 55 | 54 | enthalpy efficiency (%) | 54 | 52 | 50 | |||||
| Winter | temperature efficiency (%) | 77 | 77 | 76 | Winter | temperature efficiency (%) | 73 | 71 | 70 | |||
| enthalpy efficiency (%) | 67 | 67 | 66 | enthalpy efficiency (%) | 65 | 64 | 63 | |||||
| noise (dB) | 30 | 33 | 34 | noise (dB) | 33 | 34 | 35 | |||||
| demension (mm) | 745 x 800 x 268 | demension (mm) | 820 x 900 x 268 | |||||||||
| weight (kgs) | 38 | weight (kgs) | 48 | |||||||||
| HD-C800ET | ralated voltage | 220V 50Hz | HD-C1000ET | ralated voltage | 220V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air regulation | top grade | air regulation | top grade | |||||||||
| air volume (m3/h) | 400 | 600 | 800 | air volume (m3/h) | 600 | 800 | 1000 | |||||
| static pressure (Pa) | 190 | 150 | 120 | static pressure (Pa) | 180 | 140 | 100 | |||||
| input power (W) | 350 | 390 | 410 | input power (W) | 375 | 400 | 435 | |||||
| Summer | temperature efficiency (%) | 76 | 75 | 73 | Summer | temperature efficiency (%) | 77 | 76 | 74 | |||
| enthalpy efficiency (%) | 57 | 55 | 50 | enthalpy efficiency (%) | 57 | 56 | 54 | |||||
| Winter | temperature efficiency (%) | 76 | 75 | 73 | Winter | temperature efficiency (%) | 77 | 76 | 74 | |||
| enthalpy efficiency (%) | 65 | 64 | 63 | enthalpy efficiency (%) | 68 | 67 | 66 | |||||
| noise (dB) | 34 | 35 | 37 | noise (dB) | 35 | 36 | 38 | |||||
| demension (mm) | 1110 x 880 x 388 | demension (mm) | 1110 x 1135 x 388 | |||||||||
| weight (kgs) | 73 | weight (kgs) | 92 | |||||||||

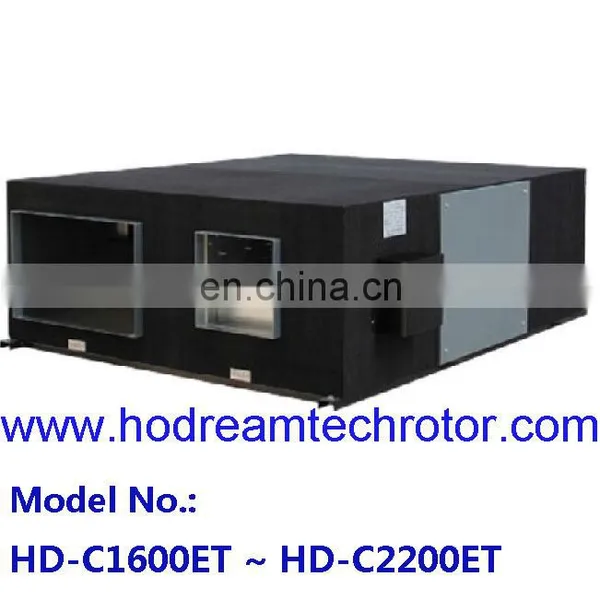

| main parameter of HD-C1600ET ~ HD-C2200ET | ||||||||||||
| HD-C1600ET | ralated voltage | 220V 50Hz | HD-C2000ET | ralated voltage | 220V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air regulation | top grade | air regulation | top grade | |||||||||
| air volume (m3/h) | 1000 | 1300 | 1600 | air volume (m3/h) | 1200 | 1600 | 2000 | |||||
| static pressure (Pa) | 200 | 150 | 100 | static pressure (Pa) | 240 | 200 | 100 | |||||
| input power (W) | 750 | 800 | 1050 | input power (W) | 1050 | 1150 | 1400 | |||||
| Summer | temperature efficiency (%) | 75 | 73 | 70 | Summer | temperature efficiency (%) | 77 | 75 | 72 | |||
| enthalpy efficiency (%) | 56 | 55 | 51 | enthalpy efficiency (%) | 57 | 57 | 55 | |||||
| Winter | temperature efficiency (%) | 75 | 73 | 70 | Winter | temperature efficiency (%) | 77 | 75 | 72 | |||
| enthalpy efficiency (%) | 65 | 63 | 60 | enthalpy efficiency (%) | 66 | 65 | 63 | |||||
| noise (dB) | 42 | 45 | 48 | noise (dB) | 47 | 50 | 52 | |||||
| demension (mm) | 1350 x 1220 x 437 | demension (mm) | 1450 x 1220 x 500 | |||||||||
| weight (kgs) | 95 | weight (kgs) | 110 | |||||||||
| HD-C2200ET | ralated voltage | 220V 50Hz | ||||||||||
| work condition point | 1 | 2 | 3 | |||||||||
| air regulation | top grade | |||||||||||
| air volume (m3/h) | 1600 | 2000 | 2200 | |||||||||
| static pressure (Pa) | 210 | 150 | 100 | |||||||||
| input power (W) | 1260 | 1450 | 1580 | |||||||||
| Summer | temperature efficiency (%) | 77 | 76 | 74 | ||||||||
| enthalpy efficiency (%) | 59 | 58 | 56 | |||||||||
| Winter | temperature efficiency (%) | 77 | 76 | 74 | ||||||||
| enthalpy efficiency (%) | 67 | 66 | 62 | |||||||||
| noise (dB) | 50 | 53 | 56 | |||||||||
| demension (mm) | 1500 x 1330 x 500 | |||||||||||
| weight (kgs) | 133 | |||||||||||

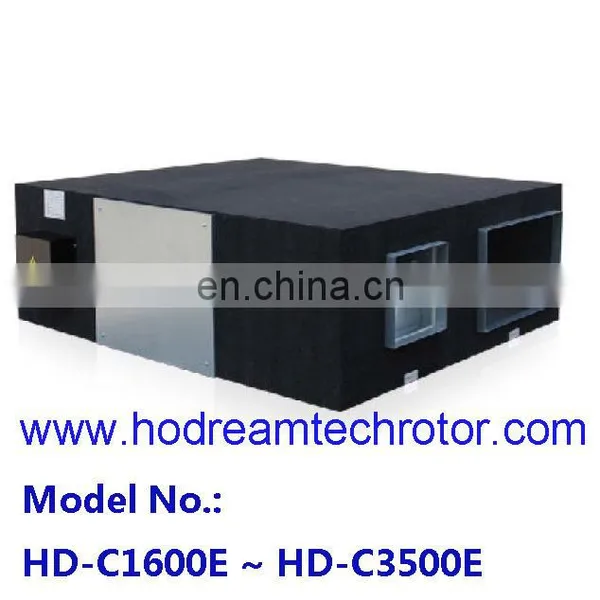

| main parameter of HD-C1600E ~ HD-C3500E | ||||||||||||
| HD-C1600E | ralated voltage | 380V 50Hz | HD-C2000E | ralated voltage | 380V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air volume (m3/h) | 1000 | 1300 | 1600 | air volume (m3/h) | 1200 | 1600 | 2000 | |||||
| static pressure (Pa) | 180 | 150 | 100 | static pressure (Pa) | 240 | 200 | 150 | |||||
| input power (W) | 415 | 550 | 650 | input power (W) | 800 | 925 | 1013 | |||||
| Summer | temperature efficiency (%) | 75 | 73 | 70 | Summer | temperature efficiency (%) | 77 | 75 | 72 | |||
| enthalpy efficiency (%) | 56 | 55 | 51 | enthalpy efficiency (%) | 58 | 57 | 55 | |||||
| Winter | temperature efficiency (%) | 75 | 73 | 70 | Winter | temperature efficiency (%) | 77 | 75 | 72 | |||
| enthalpy efficiency (%) | 65 | 63 | 60 | enthalpy efficiency (%) | 66 | 65 | 63 | |||||
| noise (dB) | 42 | 46 | 48 | noise (dB) | 47 | 51 | 53 | |||||
| demension (mm) | 1350 x 1220 x 437 | demension (mm) | 1450 x 1220 x 500 | |||||||||
| weight (kgs) | 98 | weight (kgs) | 125 | |||||||||
| HD-C2500E | ralated voltage | 380V 50Hz | HD-C3000E | ralated voltage | 380V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air volume (m3/h) | 1500 | 2000 | 2500 | air volume (m3/h) | 2000 | 2500 | 3000 | |||||
| static pressure (Pa) | 245 | 210 | 110 | static pressure (Pa) | 250 | 200 | 60 | |||||
| input power (W) | 910 | 1120 | 1875 | input power (W) | 1235 | 1420 | 1525 | |||||
| Summer | temperature efficiency (%) | 77 | 76 | 73 | Summer | temperature efficiency (%) | 73 | 72 | 70 | |||
| enthalpy efficiency (%) | 59 | 58 | 55 | enthalpy efficiency (%) | 55 | 54 | 51 | |||||
| Winter | temperature efficiency (%) | 77 | 76 | 73 | Winter | temperature efficiency (%) | 73 | 72 | 70 | |||
| enthalpy efficiency (%) | 66 | 65 | 60 | enthalpy efficiency (%) | 66 | 65 | 60 | |||||
| noise (dB) | 50 | 53 | 56 | noise (dB) | 53 | 56 | 59 | |||||
| demension (mm) | 1500 x 1330 x 500 | demension (mm) | 1550 x 1330 x 548 | |||||||||
| weight (kgs) | 146 | weight (kgs) | 165 | |||||||||
| HD-C3500E | ralated voltage | 380V 50Hz | ||||||||||
| work condition point | 1 | 2 | 3 | |||||||||
| air volume (m3/h) | 2500 | 3000 | 3500 | |||||||||
| static pressure (Pa) | 280 | 220 | 100 | |||||||||
| input power (W) | 2005 | 2150 | 2245 | |||||||||
| Summer | temperature efficiency (%) | 76 | 75 | 72 | ||||||||
| enthalpy efficiency (%) | 59 | 58 | 54 | |||||||||
| Winter | temperature efficiency (%) | 76 | 75 | 72 | ||||||||
| enthalpy efficiency (%) | 68 | 68 | 65 | |||||||||
| noise (dB) | 54 | 58 | 61 | |||||||||
| demension (mm) | 1630 x 1600 x 548 | |||||||||||
| weight (kgs) | 210 | |||||||||||

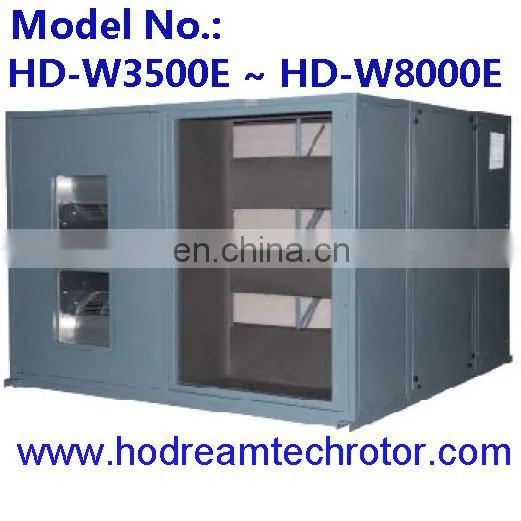

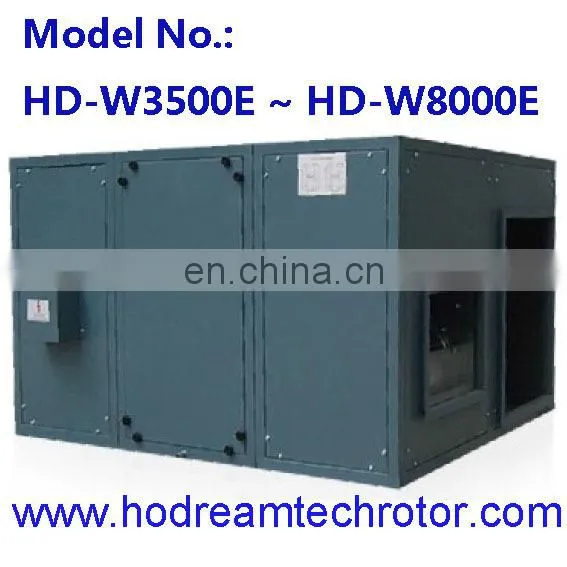

| main parameter of HD-W3500E ~ HD-W8000E | ||||||||||||
| HD-W3500E | ralated voltage | 380V 50Hz | HD-W4000E | ralated voltage | 380V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air volume (m3/h) | 2500 | 3000 | 3500 | air volume (m3/h) | 2500 | 3000 | 4000 | |||||
| static pressure (Pa) | 300 | 250 | 100 | static pressure (Pa) | 370 | 350 | 250 | |||||
| input power (W) | 1950 | 2100 | 2200 | input power (W) | 2510 | 2580 | 2650 | |||||
| Summer | temperature efficiency (%) | 76 | 75 | 72 | Summer | temperature efficiency (%) | 76 | 75 | 74 | |||
| enthalpy efficiency (%) | 59 | 58 | 54 | enthalpy efficiency (%) | 59 | 59 | 58 | |||||
| Winter | temperature efficiency (%) | 76 | 75 | 72 | Winter | temperature efficiency (%) | 76 | 75 | 74 | |||
| enthalpy efficiency (%) | 68 | 68 | 65 | enthalpy efficiency (%) | 68 | 67 | 66 | |||||
| noise (dB) | 54 | 58 | 61 | noise (dB) | 58 | 60 | 62 | |||||
| demension (mm) | 1620 X 1330 X 865 | demension (mm) | 1620 X 1330 X 990 | |||||||||
| weight (kgs) | 272 | weight (kgs) | 297 | |||||||||
| HD-W5000E | ralated voltage | 380V 50Hz | HD-W7000E | ralated voltage | 380V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air volume (m3/h) | 3000 | 4000 | 5000 | air volume (m3/h) | 5000 | 6000 | 7000 | |||||
| static pressure (Pa) | 400 | 320 | 250 | static pressure (Pa) | 280 | 250 | 160 | |||||
| input power (W) | 3062 | 3405 | 3900 | input power (W) | 3491 | 3990 | 4380 | |||||
| Summer | temperature efficiency (%) | 77 | 76 | 75 | Summer | temperature efficiency (%) | 76 | 75 | 73 | |||
| enthalpy efficiency (%) | 60 | 59 | 58 | enthalpy efficiency (%) | 60 | 59 | 57 | |||||
| Winter | temperature efficiency (%) | 77 | 76 | 75 | Winter | temperature efficiency (%) | 76 | 75 | 73 | |||
| enthalpy efficiency (%) | 68 | 68 | 65 | enthalpy efficiency (%) | 66 | 64 | 61 | |||||
| noise (dB) | 61 | 63 | 65 | noise (dB) | 62 | 64 | 66 | |||||
| demension (mm) | 1720 X 1660 X 990 | demension (mm) | 2000 X 2000 X 990 | |||||||||
| weight (kgs) | 382 | weight (kgs) | 495 | |||||||||
| HD-W8000E | ralated voltage | 380V 50Hz | ||||||||||
| work condition point | 1 | 2 | 3 | |||||||||
| air volume (m3/h) | 6000 | 7000 | 8000 | |||||||||
| static pressure (Pa) | 320 | 280 | 250 | |||||||||
| input power (W) | 4275 | 4750 | 5130 | |||||||||
| Summer | temperature efficiency (%) | 76 | 75 | 74 | ||||||||
| enthalpy efficiency (%) | 58 | 55 | 53 | |||||||||
| Winter | temperature efficiency (%) | 76 | 75 | 74 | ||||||||
| enthalpy efficiency (%) | 66 | 64 | 63 | |||||||||
| noise (dB) | 65 | 67 | 68 | |||||||||
| demension (mm) | 2240 X 2340 X 1090 | |||||||||||
| weight (kgs) | 603 | |||||||||||
| main parameter of HD-W10000E ~ HD-W20000E | ||||||||||||
| HD-W10000E | ralated voltage | 380V 50Hz | HD-W14000E | ralated voltage | 380V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air volume (m3/h) | 6000 | 8000 | 10000 | air volume (m3/h) | 10000 | 12000 | 14000 | |||||
| static pressure (Pa) | 420 | 360 | 280 | static pressure (Pa) | 300 | 280 | 180 | |||||
| input power (W) | 4760 | 6820 | 7900 | input power (W) | 6980 | 7980 | 8765 | |||||
| Summer | temperature efficiency (%) | 76 | 75 | 74 | Summer | temperature efficiency (%) | 73 | 72 | 70 | |||
| enthalpy efficiency (%) | 56 | 53 | 51 | enthalpy efficiency (%) | 58 | 57 | 55 | |||||
| Winter | temperature efficiency (%) | 76 | 75 | 74 | Winter | temperature efficiency (%) | 73 | 72 | 70 | |||
| enthalpy efficiency (%) | 66 | 65 | 64 | enthalpy efficiency (%) | 65 | 64 | 60 | |||||
| noise (dB) | 62 | 64 | 66 | noise (dB) | 63 | 65 | 68 | |||||
| demension (mm) | 2240 X 1980 X 1590 | demension (mm) | 2240 X 2340 X 1590 | |||||||||
| weight (kgs) | 761 | weight (kgs) | 903 | |||||||||
| HD-W16000E | ralated voltage | 380V 50Hz | HD-W20000E | ralated voltage | 380V 50Hz | |||||||
| work condition point | 1 | 2 | 3 | work condition point | 1 | 2 | 3 | |||||
| air volume (m3/h) | 12000 | 14000 | 16000 | air volume (m3/h) | 12000 | 16000 | 20000 | |||||
| static pressure (Pa) | 320 | 280 | 250 | static pressure (Pa) | 330 | 290 | 250 | |||||
| input power (W) | 8555 | 9510 | 10260 | input power (W) | 9500 | 11895 | 14800 | |||||
| Summer | temperature efficiency (%) | 74 | 72 | 70 | Summer | temperature efficiency (%) | 74 | 73 | 72 | |||
| enthalpy efficiency (%) | 59 | 57 | 53 | enthalpy efficiency (%) | 57 | 55 | 53 | |||||
| Winter | temperature efficiency (%) | 74 | 72 | 70 | Winter | temperature efficiency (%) | 74 | 73 | 72 | |||
| enthalpy efficiency (%) | 65 | 64 | 65 | enthalpy efficiency (%) | 66 | 64 | 63 | |||||
| noise (dB) | 65 | 67 | 69 | noise (dB) | 67 | 70 | 72 | |||||
| demension (mm) | 2240 X 2240 X 2100 | demension (mm) | 2400 X 2240 X 2600 | |||||||||
| weight (kgs) | 1080 | weight (kgs) | 1365 | |||||||||

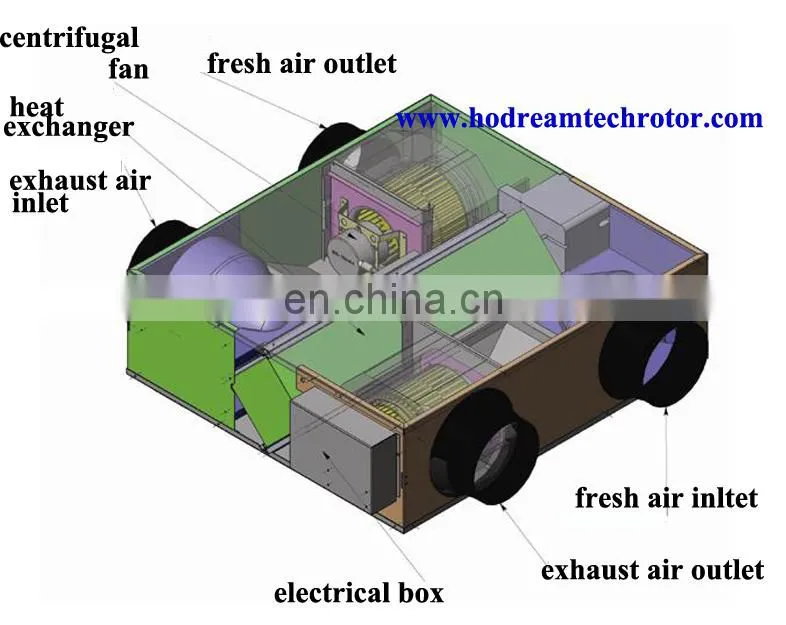

Main Parts
Advantages
1.Fresh the air for your house,keep your house air fresh
2.Recovery the energy from the exhaust air,so as save the energy
3.Can uesed for the air conditioning system

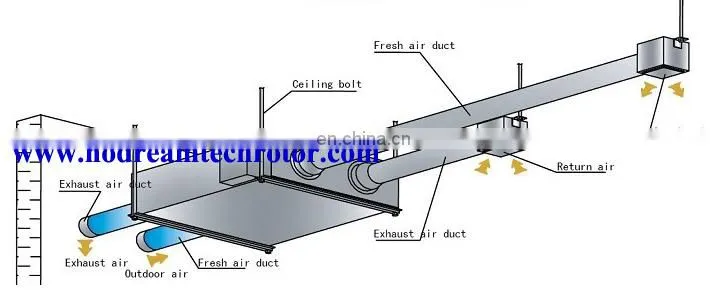

Installation Instruction
Package
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Distributor/Wholesaler
Year Established
2017
Annual Export Value
US$1 Million - US$1.5 Million
Main Markets
Southern Europe, Northern Europe, Central America, Western Europe, Eastern Asia, Mid East, Oceania, Africa, Southeast Asia, Eastern Europe, South America, North America
You May Also Like
-
Air Handling Unit/ Paper Exchanger VentilatorUS$ 200 - 900MOQ: 5 Pieces
-
Heat Recovery Ventilation System Air to Air ExchangerUS$ 200 - 1,500MOQ: 1 Piece
-
Residential Recuperator Heat ExchangerUS$ 200 - 20,000MOQ: 1 Piece
-
Recuperator Heat Exchanger UnitUS$ 200 - 20,000MOQ: 1 Piece
-
Ventilation System Air to Air Heat Recovery UnitUS$ 200 - 20,000MOQ: 1 Piece
-
Fresh Air Recuperator SystemUS$ 200 - 20,000MOQ: 1 Piece
-
Dual Flow Fresh Air Recuperator SystemUS$ 200 - 20,000MOQ: 1 Piece
-
Commercial Smoking Room Heat Recovery Recuperator SupplierUS$ 200 - 20,000MOQ: 1 Piece
-
Heat Recovery Air RecuperatorUS$ 200 - 20,000MOQ: 1 Piece
-
DC Motor Air RecuperatorUS$ 200 - 20,000MOQ: 1 Piece
