DC Motor Air Recuperator

FOB Price

US$ 200 - 20,000 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HODREAM	Model Number	HD- C W L series
Certification	CE, ROHS	After-sales Service Provided	No overseas service provided
Warranty	one to two years	Weight	196 kgs
Dimension(LWH)	1600 x 1100 x 540 mm	Condition	New
Voltage	380V 50Hz	Power(W)	1680W

Product Description

DC Motor Air Recuperator

Specifications

1. Airflow: 100-16000m3/h
2. Brushless DC motor

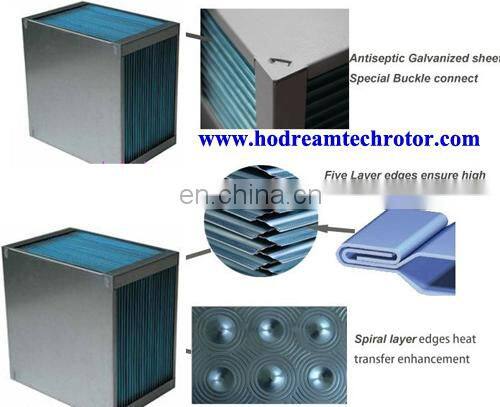

3. Counterflow heat exchanger
4. Intelligent control

Products Parameter

Product No.	Description				Product No.	Description
Main Parameter of HD-C200HT ~ HD-C1000HT
HD-C200HT	ralated voltage	220V 50Hz			HD-C300HT	ralated voltage	220V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air regulation	top grade				air regulation	top grade
	air volume (m³/h)	100	150	200		air volume (m³/h)	200	250	300
	static pressure (Pa)	100	90	70		static pressure (Pa)	105	95	75
	input power (W)	63	63	68		input power (W)	93	95	100
	temperature efficiency (%)	73	72	70		temperature efficiency (%)	74	73	70
	noise (dB)	28	29	30		noise (dB)	29	30	32
	demension (mm)	665 x 580 x 293				demension (mm)	74 5x 600 x 293
	weight (kgs)	30				weight (kgs)	35
HD-C400HT	ralated voltage	220V 50Hz			HD-C600HT	ralated voltage	220V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air regulation	top grade				air regulation	top grade
	air volume (m³/h)	200	300	400		air volume (m³/h)	400	500	600
	static pressure (Pa)	125	100	80		static pressure (Pa)	135	120	100
	input power (W)	144	148	150		input power (W)	190	192	200
	temperature efficiency (%)	75	73	71		temperature efficiency (%)	73	71	70
	noise (dB)	30	33	34		noise (dB)	33	34	35
	demension (mm)	745 x 800 x 293				demension (mm)	820 x 900 x 293
	weight (kgs)	42				weight (kgs)	50
HD-C800HT	ralated voltage	220V 50Hz			HD-C1000HT	ralated voltage	220V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air regulation	top grade				air regulation	top grade
	air volume (m³/h)	400	600	800		air volume (m³/h)	600	800	1000
	static pressure (Pa)	200	160	130		static pressure (Pa)	180	150	100
	input power (W)	365	400	415		input power (W)	382	405	440
	temperature efficiency (%)	75	72	70		temperature efficiency (%)	74	72	71
	noise (dB)	34	35	37		noise (dB)	35	36	38
	demension (mm)	1110 x 880 x 413				demension (mm)	1110 x 1135 x 413
	weight (kgs)	76				weight (kgs)	96
Main Parameter of HD-C1600H ~ HD-C6000H

HD-C1600H	ralated voltage	380V 50Hz			HD-C2000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	1000	1200	1600		air volume (m³/h)	1200	1600	2000
	static pressure (Pa)	200	170	120		static pressure (Pa)	240	210	150
	input power (W)	45	578	680		input power (W)	775	925	1247
	temperature efficiency (%)	74	72	70		temperature efficiency (%)	74	73	71
	noise (dB)	42	45	48		noise (dB)	47	51	53
	demension (mm)	1350 X 940 X 500				demension (mm)	1460 x 1020 x 500
	weight (kgs)	142				weight (kgs)	166
HD-C2500H	ralated voltage	380V 50Hz			HD-C3000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	1500	2000	2500		air volume (m³/h)	2000	2500	3000
	static pressure (Pa)	240	170	100		static pressure (Pa)	230	170	60
	input power (W)	960	1160	1375		input power (W)	1340	1520	1680
	temperature efficiency (%)	75	73	70		temperature efficiency (%)	73	72	70
	noise (dB)	50	53	56		noise (dB)	53	56	59
	demension (mm)	1460 x 1020 x 600				demension (mm)	1600 x 1100 x 540
	weight (kgs)	182				weight (kgs)	196
HD-C3500H	ralated voltage	380V 50Hz			HD-C4000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	2500	3000	3500		air volume (m³/h)	2500	3000	4000
	static pressure (Pa)	280	220	100		static pressure (Pa)	350	330	230
	input power (W)	1890	2080	2345		input power (W)	2280	2330	2400
	temperature efficiency (%)	73	72	70		temperature efficiency (%)	74	72	71
	noise (dB)	54	58	61		noise (dB)	58	60	62
	demension (mm)	1600 x 1100 x 620				demension (mm)	1750 x 1210 x 600
	weight (kgs)	230				weight (kgs)	260
HD-C5500H	ralated voltage	380V 50Hz			HD-C6000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	4000	5000	5500		air volume (m³/h)	4000	5000	6000
	static pressure (Pa)	310	250	150		static pressure (Pa)	360	320	250
	input power (W)	3655	4150	4400		input power (W)	3760	4120	4530
	temperature efficiency (%)	75	72	70		temperature efficiency (%)	76	75	72
	noise (dB)	61	63	65		noise (dB)	62	64	66
	demension (mm)	1800 x 1210 x 760				demension (mm)	1850 x 1210 x 900
	weight (kgs)	330				weight (kgs)	370
Main Parameter of HD-W4000H ~ HD-W16000H

HD-W4000H	ralated voltage	380V 50Hz			HD-W5000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	2500	3000	4000		air volume (m³/h)	3000	4000	5000
	static pressure (Pa)	370	350	250		static pressure (Pa)	400	330	250
	input power (W)	2280	2330	2400		input power (W)	3315	3655	4150
	temperature efficiency (%)	74	72	71		temperature efficiency (%)	75	72	70
	noise (dB)	58	60	62		noise (dB)	61	63	65
	demension (mm)	2340 X 840 X 1160				demension (mm)	2340 X 1030 X 1160
	weight (kgs)	333				weight (kgs)	413
HD-W7000H	ralated voltage	380V 50Hz			HD-W8000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	5000	6000	7000		air volume (m³/h)	6000	7000	8000
	static pressure (Pa)	290	250	150		static pressure (Pa)	330	300	250
	input power (W)	3650	4158	4545		input power (W)	4210	4675	5080
	temperature efficiency (%)	76	75	73		temperature efficiency (%)	76	74	73
	noise (dB)	62	64	66		noise (dB)	65	67	68
	demension (mm)	2700 X 910 X 1360				demension (mm)	2700 X 1130 X 1360
	weight (kgs)	488				weight (kgs)	553
HD-W12000H	ralated voltage	380V 50Hz			HD-W14000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	8000	10000	12000		air volume (m³/h)	10000	12000	14000
	static pressure (Pa)	350	270	130		static pressure (Pa)	310	280	170
	input power (W)	5470	6900	7295		input power (W)	7295	8310	8900
	temperature efficiency (%)	76	75	74		temperature efficiency (%)	76	75	72
	noise (dB)	66	68	69		noise (dB)	63	65	68
	demension (mm)	2700 X 1450 X 1460				demension (mm)	2700 X 1700 X 1360
	weight (kgs)	755				weight (kgs)	867
HD-W16000H	ralated voltage	380V 50Hz
	work condition point	1	2	3
	air volume (m³/h)	12000	14000	16000
	static pressure (Pa)	350	300	250
	input power (W)	8380	9450	10160
	temperature efficiency (%)	74	73	72
	noise (dB)	65	67	69
	demension (mm)	2700 X 2130 X 1360
	weight (kgs)	993
Main Parameter of HD-L4000H ~ HD-L16000H

HD-L4000H	ralated voltage	380V 50Hz			HD-L5000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	2500	3000	4000		air volume (m³/h)	3000	4000	5000
	static pressure (Pa)	380	360	250		static pressure (Pa)	400	320	250
	input power (W)	2280	2330	2400		input power (W)	3315	3655	4150
	temperature efficiency (%)	74	72	71		temperature efficiency (%)	75	72	70
	noise (dB)	58	60	62		noise (dB)	61	63	65
	demension (mm)	840 X 1200 X 1742				demension (mm)	1030 X 1200 X 1778
	weight (kgs)	332				weight (kgs)	408
HD-L7000H	ralated voltage	380V 50Hz			HD-L8000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	5000	6000	7000		air volume (m³/h)	6000	7000	8000
	static pressure (Pa)	320	270	160		static pressure (Pa)	350	320	270
	input power (W)	3650	4158	4545		input power (W)	4210	4675	5080
	temperature efficiency (%)	76	75	73		temperature efficiency (%)	76	74	73
	noise (dB)	62	64	66		noise (dB)	65	67	68
	demension (mm)	910 X 1400 X 1995				demension (mm)	1130 X 1400 X 1995
	weight (kgs)	483				weight (kgs)	541
HD-L12000H	ralated voltage	380V 50Hz			HD-L14000H	ralated voltage	380V 50Hz
	work condition point	1	2	3		work condition point	1	2	3
	air volume (m³/h)	8000	10000	12000		air volume (m³/h)	10000	12000	14000
	static pressure (Pa)	360	280	140		static pressure (Pa)	320	280	160
	input power (W)	5470	6900	7295		input power (W)	7295	8310	8900
	temperature efficiency (%)	76	75	74		temperature efficiency (%)	76	75	72
	noise (dB)	66	68	69		noise (dB)	63	65	68
	demension (mm)	1450 X 1540 X 2069				demension (mm)	1700 X 1400 X 1995
	weight (kgs)	745				weight (kgs)	842
HD-L16000H	ralated voltage	380V 50Hz
	work condition point	1	2	3
	air volume (m³/h)	12000	14000	16000
	static pressure (Pa)	370	320	270
	input power (W)	8380	9450	10160
	temperature efficiency (%)	74	73	72
	noise (dB)	65	67	69
	demension (mm)	2130 X 1400 X 1990
	weight (kgs)	958

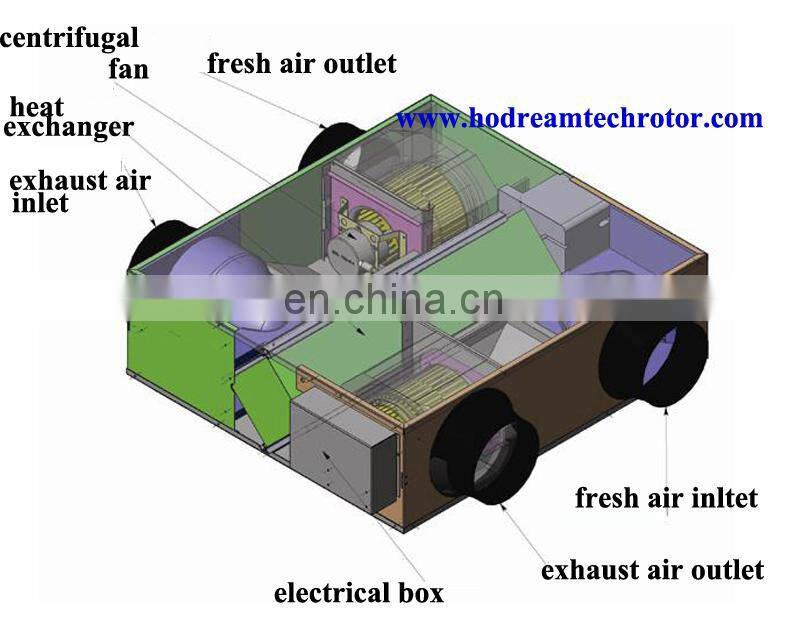

Main Parts

Advantages

1.Fresh the air for your house,keep your house air fresh

2.Recovery the energy from the exhaust air,so as save the energy

3.Can uesed for the air conditioning system

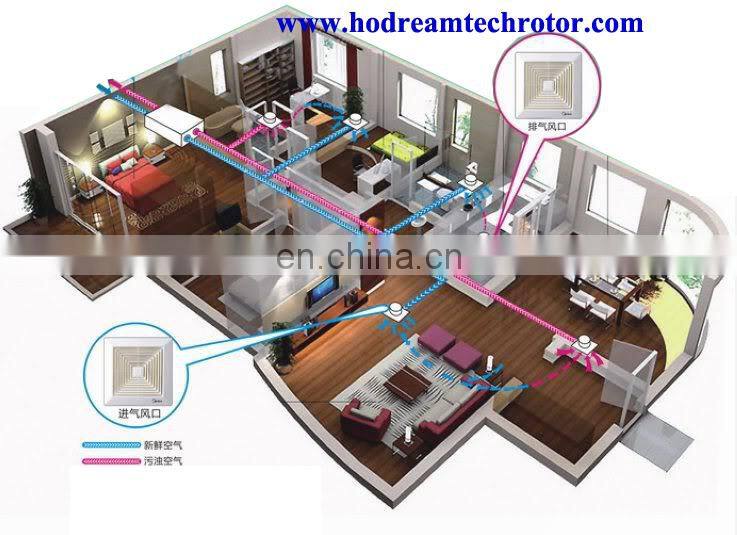

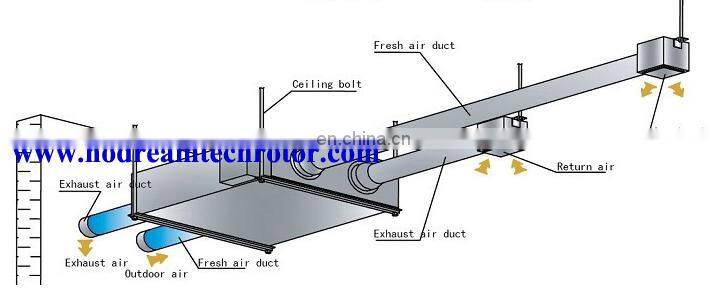

Installation Instruction

Package
