Small Air Flow Air Handling Unit

Hodream Environment Equipment Co., Ltd.
Small Air Flow Air Handling Unit thumbnail-1
Small Air Flow Air Handling Unit thumbnail-2
Small Air Flow Air Handling Unit thumbnail-3
Small Air Flow Air Handling Unit thumbnail-4
Small Air Flow Air Handling Unit photo-1
Small Air Flow Air Handling Unit photo-2
Small Air Flow Air Handling Unit photo-3
Small Air Flow Air Handling Unit photo-4
US$ 200 - 20,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HODREAM
Model Number:
HD- C W L series
Certification:
CE, ROHS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HODREAM
Model Number HD- C W L series
Certification CE, ROHS
After-sales Service Provided No overseas service provided
Warranty one to two years
Weight 196 kgs
Dimension(L*W*H) 1600 x 1100 x 540 mm
Condition New
Voltage 380V 50Hz
Power(W) 1680W

                                       small air flow Air Handling Unit

Specifications

1. Airflow: 100-16000m3/h
2. Brushless DC motor
3. Counterflow heat exchanger
4. Intelligent control

Products Parameter



Product No.                         Description  Product No.                                 Description
                               Main Parameter of HD-C200HT ~ HD-C1000HT
HD-C200HTralated voltage220V 50Hz HD-C300HTralated voltage220V 50Hz
work condition point123work condition point123
air regulationtop gradeair regulationtop grade
air volume (m3/h)100150200air volume (m3/h)200250300
static pressure (Pa)1009070static pressure (Pa)1059575
input power (W)636368input power (W)9395100
temperature efficiency (%)737270temperature efficiency (%)747370
noise (dB)282930noise (dB)293032
demension  (mm)665 x 580 x 293demension  (mm)74 5x 600 x 293
weight (kgs)30weight (kgs)35
HD-C400HTralated voltage220V 50HzHD-C600HTralated voltage220V 50Hz
work condition point123work condition point123
air regulationtop gradeair regulationtop grade
air volume (m3/h)200300400air volume (m3/h)400500600
static pressure (Pa)12510080static pressure (Pa)135120100
input power (W)144148150input power (W)190192200
temperature efficiency (%)757371temperature efficiency (%)737170
noise (dB)303334noise (dB)333435
demension  (mm)745 x 800 x 293 demension  (mm)820 x 900 x 293
weight (kgs)42weight (kgs)50
HD-C800HTralated voltage220V 50HzHD-C1000HTralated voltage220V 50Hz
work condition point123work condition point123
air regulationtop gradeair regulationtop grade
air volume (m3/h)400600800air volume (m3/h)6008001000
static pressure (Pa)200160130static pressure (Pa)180150100
input power (W)365400415input power (W)382405440
temperature efficiency (%)757270temperature efficiency (%)747271
noise (dB)343537noise (dB)353638
demension  (mm)1110 x 880 x 413demension  (mm)1110 x 1135 x 413
weight (kgs)76weight (kgs)96
                                            Main Parameter of HD-C1600H ~ HD-C6000H
HD-C1600Hralated voltage380V 50Hz HD-C2000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)100012001600air volume (m3/h)120016002000
static pressure (Pa)200170120static pressure (Pa)240210150
input power (W)45578680input power (W)7759251247
temperature efficiency (%)747270temperature efficiency (%)747371
noise (dB)424548noise (dB)475153
demension  (mm)1350 X 940 X 500demension  (mm)1460 x 1020 x 500
weight (kgs)142weight (kgs)166
HD-C2500Hralated voltage380V 50HzHD-C3000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)150020002500air volume (m3/h)200025003000
static pressure (Pa)240170100static pressure (Pa)23017060
input power (W)96011601375input power (W)134015201680
temperature efficiency (%)757370temperature efficiency (%)737270
noise (dB)505356noise (dB)535659
demension  (mm)1460 x 1020 x 600demension  (mm)1600 x 1100 x 540
weight (kgs)182weight (kgs)196
HD-C3500Hralated voltage380V 50HzHD-C4000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)250030003500air volume (m3/h)250030004000
static pressure (Pa)280220100static pressure (Pa)350330230
input power (W)189020802345input power (W)228023302400
temperature efficiency (%)737270temperature efficiency (%)747271
noise (dB)545861noise (dB)586062
demension  (mm)1600 x 1100 x 620demension  (mm)1750 x 1210 x 600
weight (kgs)230weight (kgs)260
HD-C5500Hralated voltage380V 50HzHD-C6000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)400050005500air volume (m3/h)400050006000
static pressure (Pa)310250150static pressure (Pa)360320250
input power (W)365541504400input power (W)376041204530
temperature efficiency (%)757270temperature efficiency (%)767572
noise (dB)616365noise (dB)626466
demension  (mm)1800 x 1210 x 760demension  (mm)1850 x 1210 x 900
weight (kgs)330weight (kgs)370
                                                    Main Parameter of HD-W4000H ~ HD-W16000H
HD-W4000Hralated voltage380V 50Hz HD-W5000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)250030004000air volume (m3/h)300040005000
static pressure (Pa)370350250static pressure (Pa)400330250
input power (W)228023302400input power (W)331536554150
temperature efficiency (%)747271temperature efficiency (%)757270
noise (dB)586062noise (dB)616365
demension  (mm)2340 X 840 X 1160demension  (mm)2340 X 1030 X 1160
weight (kgs)333weight (kgs)413
HD-W7000Hralated voltage380V 50HzHD-W8000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)500060007000air volume (m3/h)600070008000
static pressure (Pa)290250150static pressure (Pa)330300250
input power (W)365041584545input power (W)421046755080
temperature efficiency (%)767573temperature efficiency (%)767473
noise (dB)626466noise (dB)656768
demension  (mm)2700 X 910 X 1360demension  (mm)2700 X 1130 X 1360
weight (kgs)488weight (kgs)553
HD-W12000Hralated voltage380V 50HzHD-W14000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)80001000012000air volume (m3/h)100001200014000
static pressure (Pa)350270130static pressure (Pa)310280170
input power (W)547069007295input power (W)729583108900
temperature efficiency (%)767574temperature efficiency (%)767572
noise (dB)666869noise (dB)636568
demension  (mm)2700 X 1450 X 1460demension  (mm)2700 X 1700 X 1360
weight (kgs)755weight (kgs)867
HD-W16000Hralated voltage380V 50Hz
work condition point123
air volume (m3/h)120001400016000
static pressure (Pa)350300250
input power (W)8380945010160
temperature efficiency (%)747372
noise (dB)656769
demension  (mm)2700 X 2130 X 1360
weight (kgs)993

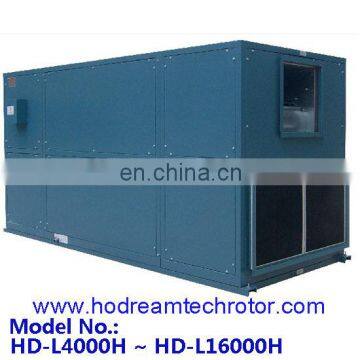

                                                     Main Parameter of HD-L4000H ~ HD-L16000H
HD-L4000Hralated voltage380V 50Hz HD-L5000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)250030004000air volume (m3/h)300040005000
static pressure (Pa)380360250static pressure (Pa)400320250
input power (W)228023302400input power (W)331536554150
temperature efficiency (%)747271temperature efficiency (%)757270
noise (dB)586062noise (dB)616365
demension  (mm)840 X 1200 X 1742demension  (mm)1030 X 1200 X 1778
weight (kgs)332weight (kgs)408
HD-L7000Hralated voltage380V 50HzHD-L8000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)500060007000air volume (m3/h)600070008000
static pressure (Pa)320270160static pressure (Pa)350320270
input power (W)365041584545input power (W)421046755080
temperature efficiency (%)767573temperature efficiency (%)767473
noise (dB)626466noise (dB)656768
demension  (mm)910 X 1400 X 1995demension  (mm)1130 X 1400 X 1995
weight (kgs)483weight (kgs)541
HD-L12000Hralated voltage380V 50HzHD-L14000Hralated voltage380V 50Hz
work condition point123work condition point123
air volume (m3/h)80001000012000air volume (m3/h)100001200014000
static pressure (Pa)360280140static pressure (Pa)320280160
input power (W)547069007295input power (W)729583108900
temperature efficiency (%)767574temperature efficiency (%)767572
noise (dB)666869noise (dB)636568
demension  (mm)1450 X 1540 X 2069demension  (mm)1700 X 1400 X 1995
weight (kgs)745weight (kgs)842
HD-L16000Hralated voltage380V 50Hz
work condition point123
air volume (m3/h)120001400016000
static pressure (Pa)370320270
input power (W)8380945010160
temperature efficiency (%)747372
noise (dB)656769
demension  (mm)2130 X 1400 X 1990
weight (kgs)958



 Main Parts

small air flow Air Handling Unit

Advantages

1.Fresh the air for your house,keep your house air fresh

2.Recovery the energy from the exhaust air,so as save the energy

3.Can uesed for the air conditioning system

small air flow Air Handling Unit

Installation Instruction

 small air flow Air Handling Unit

small air flow Air Handling Unit

 Package

small air flow Air Handling Unit

small air flow Air Handling Unit
