Overview
Quick Details
| Place of Origin:Shenzhen,china(mainland) | Brand name:Neware |
| Model Number:CT-4008-5V12A-DB | application:battery tester |
Per Channel Voltage Range: Charge：25mV~5V；Discharge：25mV~5V | Per Channel Current Range:Range 1: 5mA~1A, Range 2: 1A-12A |
Input Power:826W | Input Resistance:≥1MΩ |
cycle times:1~65535 times | noise:<85dB |
| Dimensions:3U，480*380*130(mm) | Per Unit Main Channels No.:8 |
Description:
CT-4000 entered into market in the year of 2008. Now it is one of the most successful and most popular
battery testing system in China. Thousands of battery manufacturers, battery research institutes and
laboratories use it as their primary testing partner for their various testing activities.
1.CT-4008-5V12A has 8 channels in a set which can test 8 cells at once, no matter how many cells you need to test at once, this device can meet your requirement. All channels will display on the software, which can be controlled independently, due to each channel has its own constant-current and constant-voltage source.
2.The voltage and current ranges of each channnel are 0~5V and 0~12A.Both of the high accuracy of 0.05% and measurement resolution meet the international standards completely.
3.This device is suitable for most of the rechargeable cells or battery materials, for example: lithium battery, NI-MH battery, Zn-Mn watch battery,Zn-Air battery, Li-Air battery and some new founded materials.
4.Wide range of application such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.
Production display:

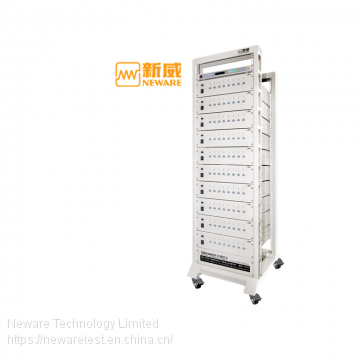

BTS-5V12A Battery Testing Equipment Equipment Item Code：CT-4008-5V12A-DB
Project index | Parameter index | |
Input Power | AC 220V ±10% / 50Hz | |
resolution | AD：16bit；DA：16bit | |
Input Resistance | ≥1MΩ | |
Input Power | 826W | |
Channel Control Mode | Independent Control | |
Voltage | Per Channel Voltage Range | Charge：25mV~5V；Discharge：25mV~5V |
Accuracy | ± 0.05% of FS | |
Stability | ± 0.05% of FS | |
Current | Per Channel Current Range | Range 1: Charge：5mA~1A；Discharge：5mA~1A Range 2: Charge：1A~12A；Discharge：1A~12A |
Accuracy | ± 0.05% of FS | |
Stability | ± 0.05% of FS | |
Power | Per Channel Output Power | 60 W |
Stability | ± 0.1% of FS | |
Time | Current Response Time | 1ms (0-Full Range) |
Step Time Range | ≤(365*24 )hour/step， Time Form Support 00：00：00(h、min:s、ms) | |
Data Recording | Record Condition | Time△t：（100ms ~60000s） |
Voltage△U：（0.01mV~5V） | ||
Current△I：（range1:2mA range2:24mA） | ||
Record Frequency | 100ms | |
Charge | Charge Mode | Constant Current Charge、Constant Voltage Charge、 Constant Current and Constant Voltage Charge、CPC |
End Conditon | Voltage、Current、Relative Time、Capacity、-△V | |
Discharge | Discharge Mode | CCD、CPD、CRD、 |
End Condition | Voltage、Current、Relative Time、Capacity | |
DCIR test | DCIR supported custom check points calculation | |
Cycle | Loop Measure Range | 1~65535 times |
Max Steps Per Loop | 254 | |
Nested Loop | Nested loop Function，Max Support 3 Layers | |
Protection | Software Protection | l Power-down Data Protection |
l Off-line Testing Function | ||
l Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time | ||
Hardware Protection | Additional Anti-reverse Protection Model | |
Voltage and Current Testing Sample | 4-wire connecting | |
Noise | <85dB | |
Database | MySQL Database | |
A Means of Communication of Upper Machine | TCP/IP Protocol | |
Data Output | EXCEL、TXT、Graph | |
Communication Interface | Ethernet Port | |
Per Unit Main Channels No. | 8 | |
Dimensions | 3U3F，480*730*130mm | |
About us:
Founded in 1998,Neware has been committed to providing reliable battery testing system.Thus far, Neware has provided flexible, high accuracy battery testing equipment to more than 26,000 customers worldwide ranging from battery manufacturers to R&D institutes. Customers state they love the stable, cost-effective battery testing equipment,along with the great service of Neware.
Why choose Neware:
1.21 years quest of battery test system, growing up with global battery industry, through our effort, we have been getting more and more customers' trust, for example:Tsinghua University, APPLE, SAMSUNG,3M,BYD,ATL... ...
2.There is strong after sales team, our team can long-range control the wrong machine to give you better using experience;
3.Due to Neware explore by ourselves, and we have our own factory, we can supply you the first source, no matter the price, quantity or service.
