Help CenterNeware-electronic E-rickshow Battery Tester, Lead-acid Battery Monitor-IGBT-7001-60V100A
Related Products
-
Neware-electronic Vehicle Bicycle,homely Energy Storage Battery Test System-IGBT-7001-60V100AUS$ 19402.98 - 23406.55MOQ: 1 Set -
Neware-5V12A Battery Tester for Ni-Cd Battery,Lithium-ion BatteryUS$ 1000 - 1500MOQ: 1 Piece
-
Neware Button Cell Battery Test System-5V 100mA-activity Trackers, Smartwatch, Blue-tooth Headset,electric Toothbrush CellUS$ 1100 - 1500MOQ: 1 Set
-
Neware-5V6A Battery Tester for Credit Card Machine,gas Meter,learning Machine Cell, Phone CellUS$ 1000 - 1500MOQ: 1 Piece
-
Neware Cylindrical Battery Activating and Grading SystemUS$ 3776.12 - 3940.30MOQ: 1 Set
Overview
Quick Details
| Place of origin:china | Brand name:Neware |
| Model number:CE-7001-120V200A |
input power:27KW |
| color:as customer's requirement | export country:global |
| Related industry:lithium-ion,Electronic BUS,energy storage battery | applications:DCIR/Pulse Test/HPPC/C-Rate,Static capacity,Cycle Life,etc |
| Parallel channel:Up to 2 channels | digital circuit:digital signal processor(DSP) |
| Accuracy:0.1%FS | Data acquisition frequency:10HZ |
| Dimensions：W*D*H：1350*733*1800(mm) | Per Unit Main Channels No.:1 |
Production description:
CE-7001-120V200A
Project index |
Parameter index |
|
Input Power |
AC 380V ±10% / 50Hz |
|
resolution |
AD:16bit；DA:16bit |
|
Output Power |
24KW |
|
Input Power |
27KW |
|
Channel Control Mode |
Independent Control |
|
Voltage |
Constant Voltage Range |
Charge：12V~120V |
Accuracy |
± 0.1% of FS |
|
Stability |
± 0.1% of FS |
|
Current |
Per Channel output Current Range |
1A~200A |
Accuracy |
± 0.1% of FS |
|
Stability |
± 0.1% of FS |
|
Power |
Per Channel Output Power |
24KW |
Stability |
± 0.2% of FS |
|
Time |
Current Response Time |
10ms |
Step Time Range |
≤(365*24 )hour/step， Time Form Support 00：00：00(h、min:s、ms) |
|
Data Recording |
Record Condition |
Time△t:100ms |
Voltage△U:0.24V | ||
Current△I:0.4A | ||
Record Frequency |
10Hz |
|
Charge |
Charge Mode |
Constant Current Charge(CCC)、Constant Voltage Charge(CVC)、 Cell or Battery module Constant Current and Constant Voltage Charge、Constant Power Charge(CPC) |
End Condition |
Voltage、Current、Relative Time、Capacity、-△V |
|
Discharge |
Discharge Mode |
CCD、CPD、CRD、CVD |
End Condition |
Voltage、Current、Relative Time、Capacity |
|
DCIR test |
Direct Current Internal Resistance supported custom check points calculation |
|
Cycle |
Loop Measure Range |
1~65535 times |
Max Steps Per Loop |
254 |
|
Nested Loop |
Nested loop Function，Max Support 3 Layers |
|
Protection |
Software Protection |
l Power-down Data Protection |
l Off-line Testing Function | ||
l Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time | ||
Hardware Protection |
Additional Anti-reverse Protection Model |
|
Voltage and Current Testing Sample |
4-wire connecting |
|
Noise |
||
Database |
MySQL Database |
|
A Means of Communication of Upper Machine |
TCP/IP Protocol |
|
Data Output |
EXCEL、TXT、Graph |
|
Communication Interface |
Through Ethernet Port & CanBus to contact with BMS for cell temperature&voltage |
|
Per Unit Main Channels No. |
1 |
|
Dimensions |
W*D*H：1350*733*1800(mm) |
|

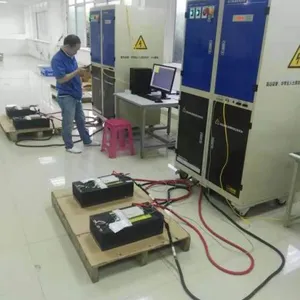

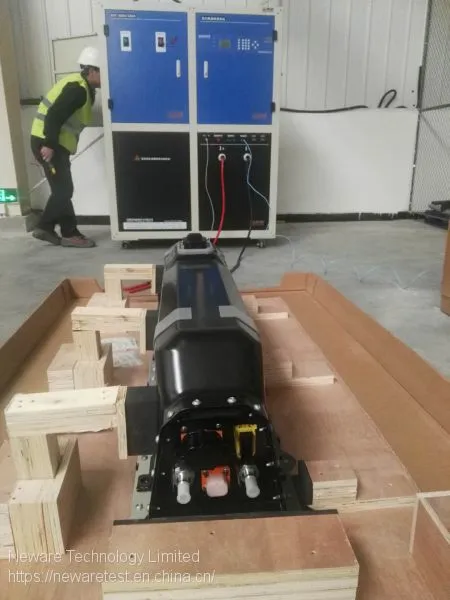

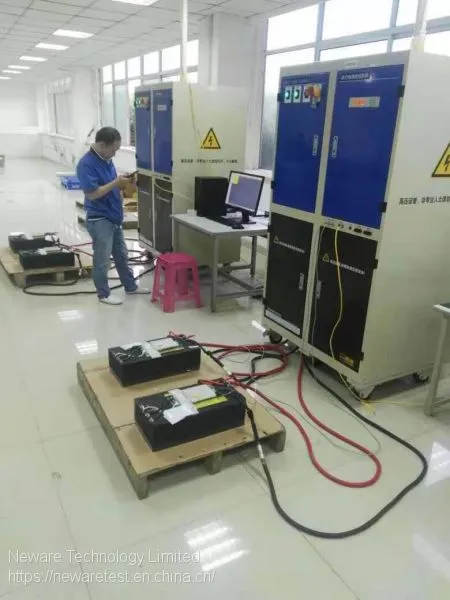

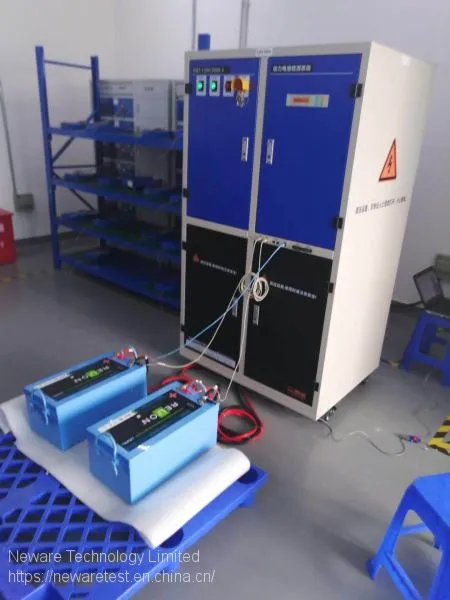

Electric vehicle is becoming more and more popular. At the same time, its safety is more and more importance. so we make CE-7000 being come out.CE-7001-120V200A battery tester is designed for the test of battery pack with IGBT(Insulated Gate Bipolar Transistor) technology, which system can successfully finish capacity test,cycle life test,charge and discharge test, Pulse /HPPC test and so on.This item is useful for electric vehicle & energy storage battery & solar energy storage battery, and so on.
About us:
Founded in 1998,Neware has been committed to providing reliable battery testing system.Thus far, Neware has provided flexible, high accuracy battery testing equipment to more than 26,000 customers worldwide ranging from battery manufacturers to R&D institutes. Customers state they love the stable, cost-effective battery testing equipment,along with the great service of Neware.
Why choose Neware:
1.21 years quest of battery test system, growing up with global battery industry, through our effort, we have been getting more and more customers' trust, for example:Tsinghua University, APPLE, SAMSUNG,3M,BYD,ATL... ...
2.There is strong after sales team, our team can long-range control the wrong machine to give you better using experience;
3.Due to Neware explore by ourselves, and we have our own factory, we can supply you the first source, no matter the price, quantity or service.
