Features:
1oil separator adopts Imported filter material, which is more efficient and has a longer service life;
2.Larger filtration area, and smaller pressure loss;
3. Reduce the loss of lubricating oil and improve the quality of compressed air;
Description:
1. Oil separator filter material is made of ultra-fine fiberglass composite filter material of American HV Company
2. The misty oil and gas mixture can be completely filtered out when passing through the oil separator.
3. Compressed air / oil content can be controlled at 3~6PPm, oil mist particles can be controlled below 0.1um.
4. Oil separator life is 3500-5200 hours, the quality of lubricating oil, the environment has a serious impact on its life.
5. Initial oil difference: ≦ 0.02 Mpa.

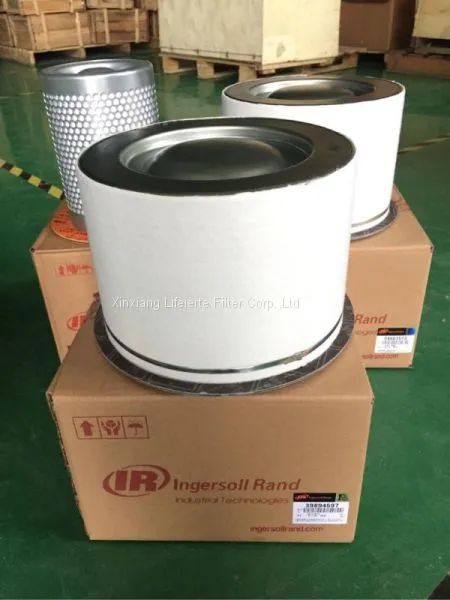

Ingersoll Rand Oil Separator 39894597
Product application: wind power / coal machine / metallurgy / electronics / pharmaceutical industry / petroleum gasification / thermal power nuclear power, etc.
39894597 Technical data: |
||
|
Manufacturer |
Lefilter |
Part number |
39894597 |
|
Type of |
Oil separator |
|
Flange Outer Diameter (OD1) |
300mm |
|
Body Outer Diameter (OD2) |
270mm |
|
Inner Diameter (ID) |
159mm |
|
Height(H) |
189mm |
|
Related Product
Models |
Models |
Filter Models |
OD |
H |
Thread Size |
|
USP22 |
54672654/B |
94 |
212 |
1-12UNF |
ML22,30S,ML37,50S |
39907175 |
94 |
212 |
1-12UNF |
|
M37,M22 |
42888198 |
94 |
212 |
1-12UNF |
|
M55 |
39911631 |
118 |
283 |
13/4-12UNF |
|
75S |
42843797 |
135 |
200 |
M38×1.5 |
|
150S |
42843805 |
135 |
302 |
M38×1.5 |
|
M90 |
39856836 |
118 |
283 |
13/4-12UNF |
|
ML250,M250 |
92888262 |
135 |
302 |
11/2-12UNF |
|
EP100,VHP400SCU |
99270134 |
102 |
202 |
Oil Filter |
|
EP200,VHP700E |
99274060 |
102 |
402 |
Oil Filter |
