Motorized Cast Iron Flange Ball Valve Mini Motorized 2'' Ball Valve

One.Product data:

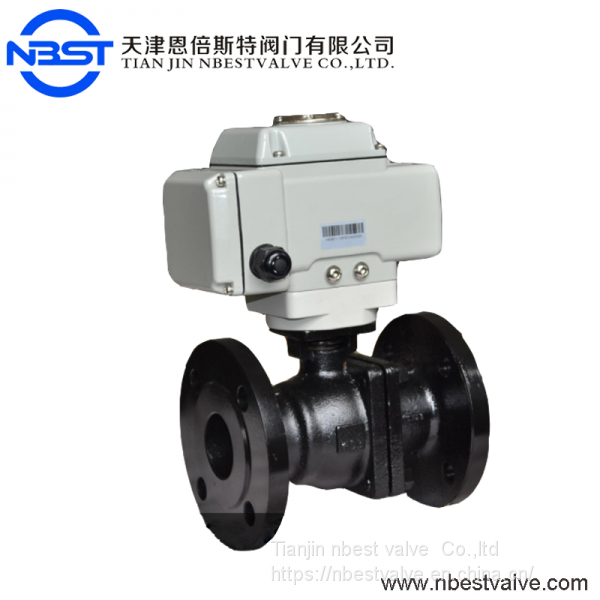

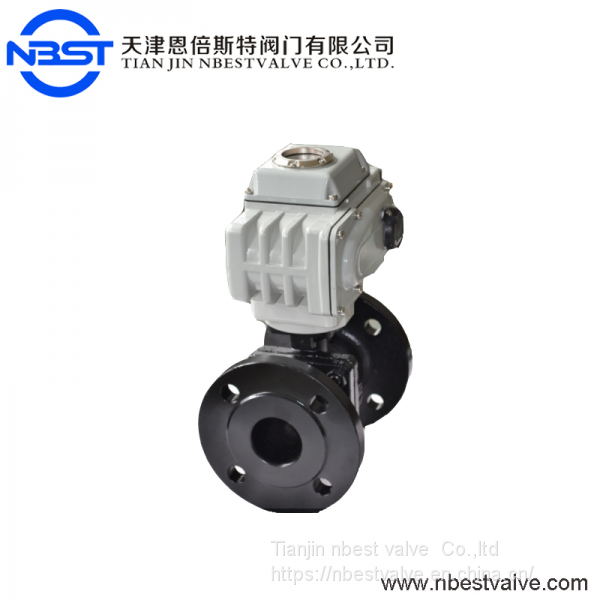

Q941H-16Q motorized cast iron flange ball valve DN50

ball valve with electric actuator
Electric ball valve is a form of quarter-turn valve, it is characterized by well sealed, low resistance, compact structure, easy maintain, long service life. It perfect connects with pipe,  allow medium to flow without loss, is suitable for the field that required strictly for seal. Applicative medium like gas, liquid, water, steam and other fibrous material medium in sewage is ok for electric ball valve. It is widely used in food, pharmacy, cosmetics, clean steam, wine industry, beverage industry, chemical industry etc.

Electric Ball Valve is a rotary ball valve by turning 90°, with the characteristics of tine sealing performance, large flow capability, small flow resistant coefficient, simple structure and long service life. The valve passage is equal to the connecting pipe and the medium can nearly flow through it without the loss.

By connected with electric actuator the valve is widely applicable for the working fields such as petroleum, chemical, industry, metallurgy, paper making, power station etc. It can control not only the medium like the air liquid and steam, but also the medium containing the fibers.

Product features
High precision ball& High tightness seat
Long life ball&seat
The most economical material combination
The best fire safe and static resistance safety
Widely applicable
Various driving types

Body
Nominal size: DN15-DN200
Body material: WCB, 304, 316, 316L
Connection type: Flange
Pressure class: PN16-PN4.0MPa
Structure type: Floating ball core Valve components
Seat material: PTFE: -30~180C
PPL: -30~250C
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: Water, oil, steam, etc Performance

Fire protection design
ISO5211 standard direct mounting actuator
Antistatic device between the core and the valve body
Stem explosion-proof design
Double butterfly shaped spring automatic compression packing design
Allow pressure differential: Less than nominal pressure 1.6MPa
Leakage: Zero leakage
Return difference: ±2.5%

Material

Valve actuator Specification

Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V380V110V24V,DC12V24V etc; Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4

Two related product:

Three.Company information:

Three.Company profile

Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.

Four.Aplication Area

a. Domestic sewage treatment.

b. industrial wastewater treatment.

c. industrial irrigation treatment.
