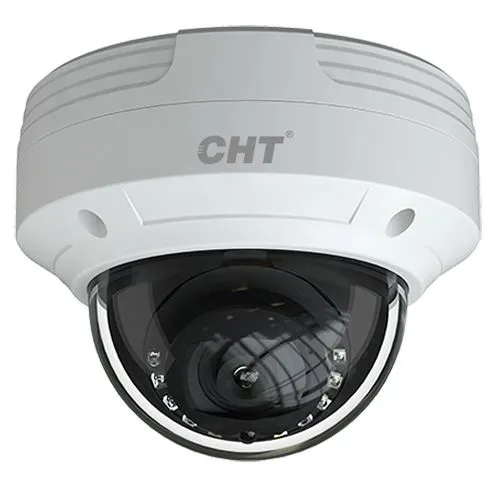

Help CenterIPC-TW12MU-B 2MP Super Starlight HD Network Water - Proof Dome Camera
Related Products
-
2MP Network IR Water - Proof Dome CameraNegotiableMOQ: 10 Sets -
Intelligent Dome CameraNegotiableMOQ: 2400 Pieces
-
OEM Custom CCTV Dome Camera Enclosure, Custom Camera HousingNegotiableMOQ: 1
-
2.0M HD Network Speed DOME CameraNegotiableMOQ: 1 Piece
-
30M IR Array Dome Camera JT-C152-60US$ 12.79 - 12.79MOQ: 1 Set
Scenes
Applicable to financial, telecommunications, government, schools, airports, factories, hotels, museums, traffic monitoring which are dim and require high-definition quality monitoring, especially for the lobby and other backlight environment.
Key Features
l H.265 main profile video compression technology, excellent
l low-illumination level
l 2MP（1920x1080） full real time coding
l Max.resolution: 2048 x 1536
l ICR auto switch, true day / night
l 10 ~ 20 m IR night view distance optional
l 3D DNR, digital WDR
l Support 8 ROI coding
l Support TF card local storage, up to 64 GB
l Support CVBS video output and one-way audio
l Support hardware reset
l Support PoE power supply
l Support smart phone, iPad, remote monitoring
l Support P2P
l IP66 & IK10 ingress protection
l Support three streams
Model Specifications |
IPC-TW12MU-BDPIR1 |
IPC-TW12MU-BDP |
Camera | ||
Image Sensor |
1 / 2.8 "CMOS |
|
Image Size |
1920x1080 |
|
Electronic Shutter |
1 / 25s~ 1 /100000s |
|
Min. Illumination |
Color : 0.001 lux @F1.2, AGC ON; |
Color : 0.001 lux @F1.2, AGC ON; |
B / W :0lux with IR |
B / W :0.0005lux with IR |
|
Lens |
3.6 mm @F1.6, angle of view : 70° (6 mm, 8 mm optional ) |
|
Lens Mount |
M12 |
|
Day & Night |
ICR |
|
Wide Dynamic Range |
Digital WDR |
|
Digital NR |
2D/3D DNR |
|
Angle Adjustment |
Pan : 0°~240°, Tilt : 0°~68°, Rotation : 0°~220° |
|
Image | ||
Video Compression |
H.265 / H.264 / MJPEG |
|
H.265 Compression Standard |
Main Profile @Leve4.1 High Tier |
|
Resolution |
1080P ( 1920 x 1080 ), 720P ( 1280 x 720), D1, CIF, 480 x 240 |
|
Main Stream |
60Hz :1080P 1 ~30fps ) / 720P ( 1 ~30fps ) 50Hz : 1080P 1 ~25fps ) / 720P ( 1 ~25fps ) |
|
Bit Rate |
64Kbps ~ 8Mbps |
|
Encode Mode |
VBR/CBR |
|
Quality |
Five levels under VBR; Freely adjustable under CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
|
Audio Compression |
G.711A / U |
|
ROI |
Each ROI to be configured separately |
|
Interfaces | ||
Network |
RJ45, 10M/100M self-adaptive |
|
Audio |
MIC IN x1 |
|
Video Output |
CVBS video output ( BNC x 1) |
|
Functions | ||
Remote Monitoring |
IE browsing,CMS remote control |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|
Protocol |
TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
|
Interface Protocol |
ONVIF, GB-T / 28181-2011 |
|
Storage |
Network remote storage |
|
Smart Alarm |
Motion alarm |
|
PoE |
Yes |
|
IR Distance |
10 ~ 20 m optional |
No |
Water-proof |
IP66 |
|
Others | ||
Power Supply |
DC 12V / PoE |
|
Power Consumption |
||
IR Consumption ON |
||
Operating Environment |
-20 °C ~ 50 °C,10 % ~ 90 % humidity |
|
Dimensions ( mm ) |
O 116 x 91 |
|
Weight ( net ) |
599g |
|
Installation |
Pendent mounting ( Wall mounting available with the junction box and bracket ) |
|
