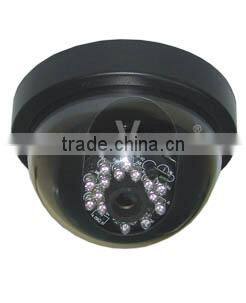

Dome CCTV Camera / Indoor IR Dome Camera Features:
Compact profile surveillance dome for indoor applications
Hard ceiling or suspended ceiling applications
High resolution
1/3" Color CMOS Sensor Specifications:
1) Image Device: OV7910
2) TV System: PAL / NTSC
3) Effective Pixels: 628 x 582 pixels / 510 x 492 pixels
4) Sensing Area: 5.78mm x 4.19mm / 4.69mm x 3.54mm
5) Resolution: 380 TV lines
6) Horizontal Sync Frequency: 15,625KHz / 15,734KHz
7) Vertical Sync Frequency: 50Hz / 60Hz
8) Minimum Illumination: 3Lux/F1.2 with IR
9) Video Output: 1.0vp-p, 75Ohm
10) Electronic Shutter: 1/60~1/15,000 Second
11) Current Consumption: 50mA
12) Power Supply: DC12V
13) Lens: F = 6.0mm / F = 2.0
14) Lens Angle: 69o
15) Microphone: Optional
1/3" Color CCD Sensor Specifications:
1) Image Device: SHARP
2) TV System: PAL / NTSC
3) Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
4) Sensing Area: 4.9mm x 3.7mm
5) Resolution: 420 TV lines
6) Horizontal Sync Frequency: 15,625KHz / 15,734KHz
7) Vertical Sync Frequency: 50Hz / 60Hz
8) Minimum Illumination: 1.0Lux/F1.2
9) Video Output: 1.0vp-p, 75Ohm
10) Electronic Shutter: 1/60 (NTSC) / 1/50 (PAL) ~ 1/10,000 Second
11) Current Consumption: Max. 100mA
12) Power Supply: DC12V
13) Lens: F = 3.6mm / F = 2.0
14) Lens Angle: 92o
15) Microphone: Optional
1/3" B/W CCD Sensor Specifications:
1) Image Device: SAMSUNG
2) TV System: CCIR/ EIA
3) Effective Pixels: 500 x 582 pixels / 510 x 492 pixels
4) Sensing Area: 4.9mm x 3.7mm
5) Resolution: 420 TV lines
6) Horizontal Sync Frequency: 15,625KHz / 15,734KHz
7) Vertical Sync Frequency: 50Hz / 60Hz
8) Minimum Illumination: 0.05 Lux/F1.2 with IR
9) Video Output: 1.0vp-p, 75Ohm
10) Electronic Shutter: 1/60 (CCIR) / 1/50 (EIA) ~ 1/10,000 Second
11) Current Consumption: 110mA
12) Power Supply: DC12V
13.Lens: F = 3.6mm / F = 2.0
14) Lens Angle: 92o
15) Microphone: Optional
1/4" Color CCD Sensor Specifications:
1) Image Device: SHARP
2) TV System: PAL / NTSC
3) Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
4) Sensing Area: 3.6mm x 2.7mm
5) Resolution: 420 TV lines
6) Minimum Illumination: 1 Lux/F1.2
7) Horizontal Sync Frequency: 15,625KHz / 15,734KHz
8) Vertical Sync Frequency: 50Hz / 60Hz
9) Video Output: 1.0vp-p, 75Ohm
10) Electronic Shutter: 1/60 (NTSC) / 1/50 (PAL) ~ 1/10,000 Second
11) Current Consumption: Max. 100mA
12) Power Supply: DC12V
13) Lens: F = 3.6mm / F = 2.0
14) Lens Angle: 69o
15) Microphone: Optional
Testing Standard: MIL-STD-105E

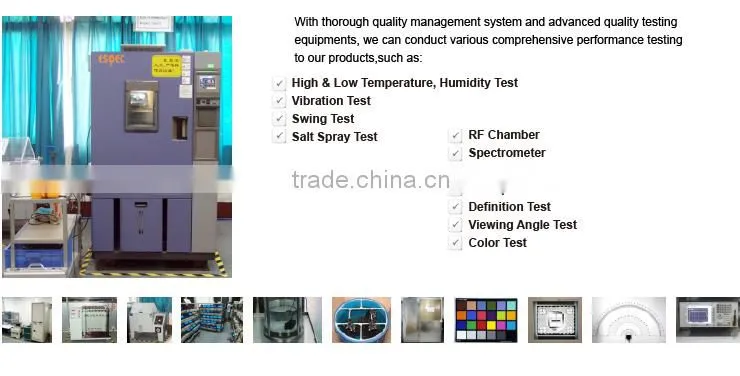

Tests

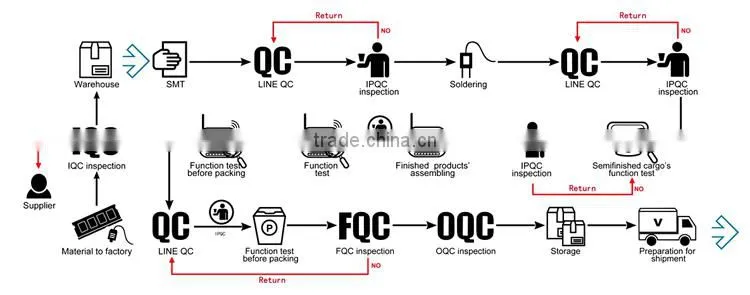

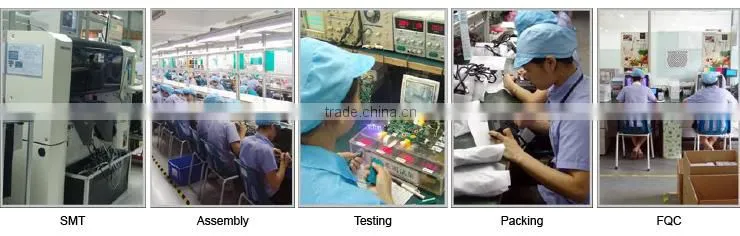

Manufacturing Process
Tests
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
