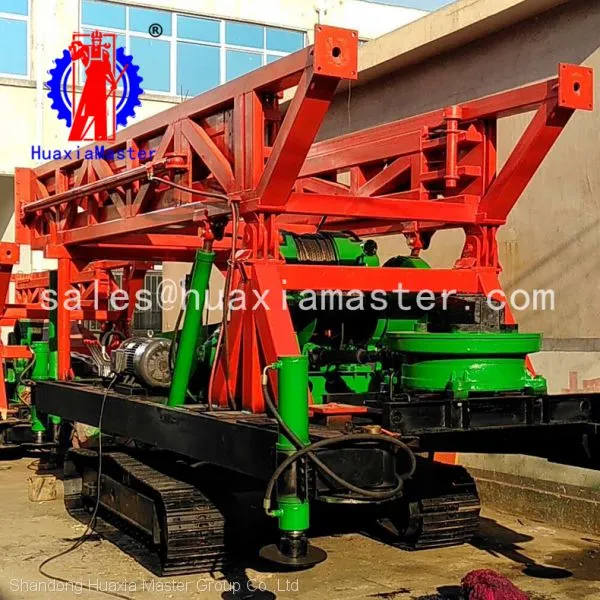

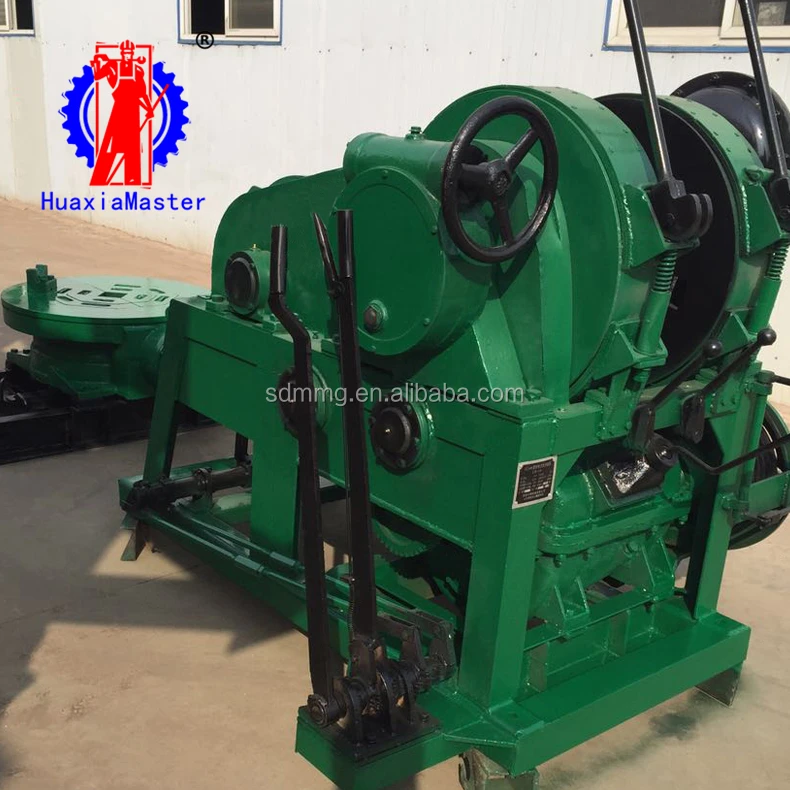

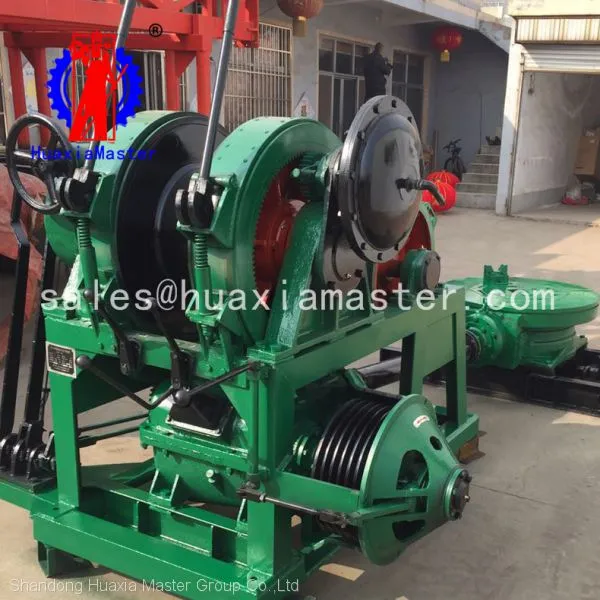

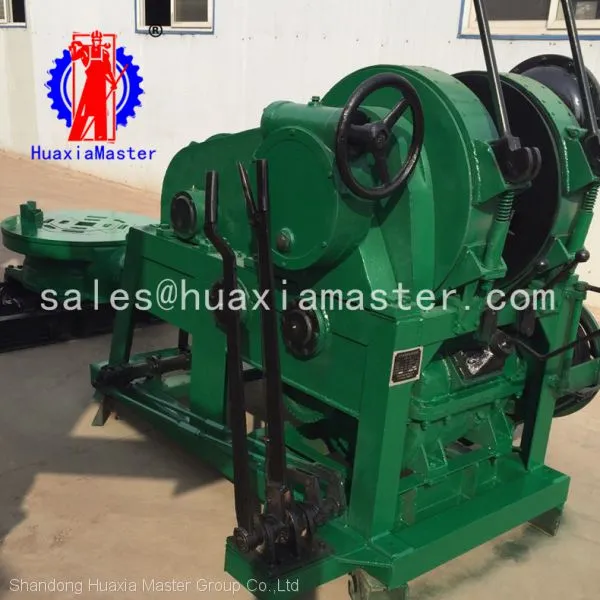

SPJ-400 water well drilling rig
1. The features of SPJ-400 water well drilling rig
· SPJ-400 water well drilling rig is powered by diesel engine, and can also be driven by motor in electric power area.

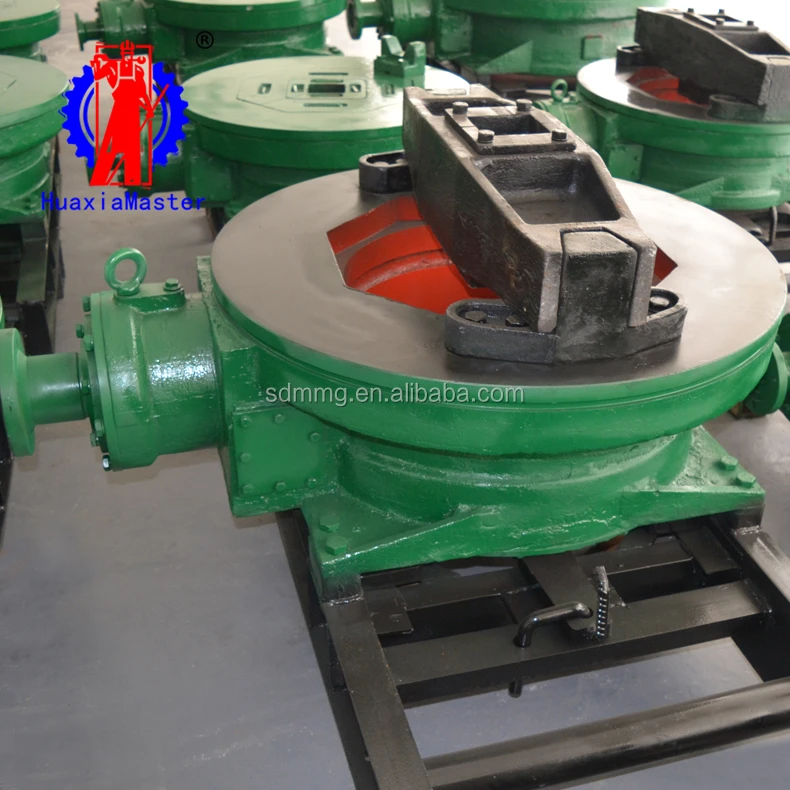

· The drilling rig is a bulk rotary table drill, which is mainly used for middle Quaternary, fine grained strata and soft rock layers. The main usageis: the hydrogeological conditions at the bottom of the exploration and survey; the drilling and drilling for the agricultural irrigation, the industrial water use, the underground tunnel ventilation, the bridge and other engineering drilling.

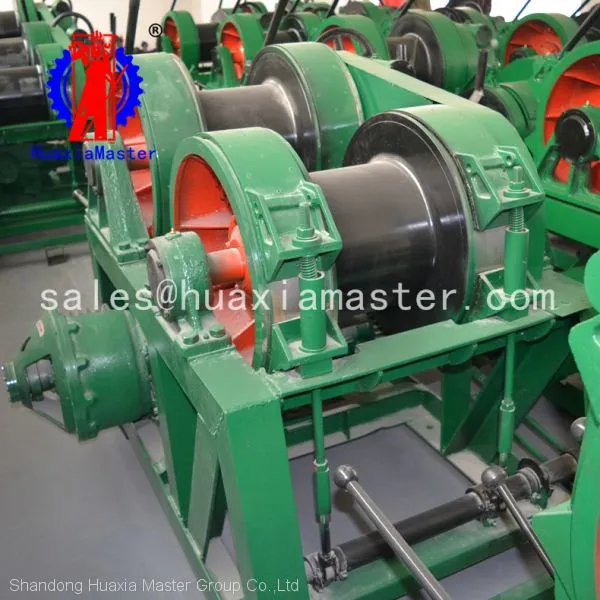

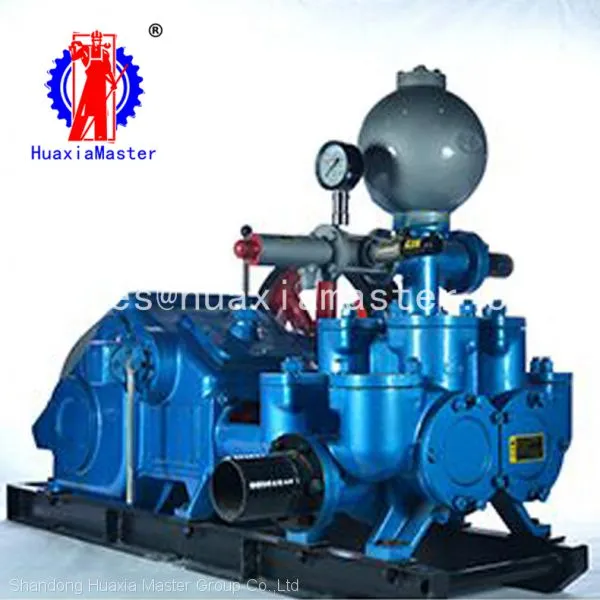

· When drilling rig works, mud flushing fluid (positive circulation) and rotary table are used to drive the drilling tools to rotate. Use winch system to realized ecompression drilling, lifting drilling,down pipe, impact sampling, vertical drilling tower.
2.The specifications of SPJ-400 water well drilling rig
|
Borehole diameter
|
500mm-1800mm |
Drilling depth |
400m |
Maximum output torque |
18kn.m |
Active drill rod |
108*108*12mm |
Drilling pipe |
89mm |
Main indlasslifting power |
30kn |
Assistant windlasslifting power |
20kn |
Rotary table latus rectum |
500mm |
Rotating speed (forward and inversion) |
40/70/128r/min |
height of the drilling tower |
13m |
Gross weight (excluding drill pipe) |
9t |
External dimension |
2200*6000*13000mm
|
Drilling tower |
type A / hydraulic drilling tower |
This product is widely used inwater conservancy project , pile foundation engineering, bridge construction and so on. | |
