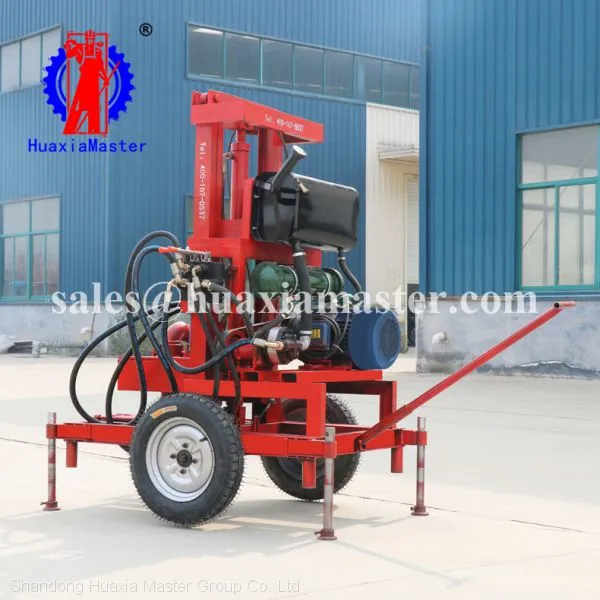

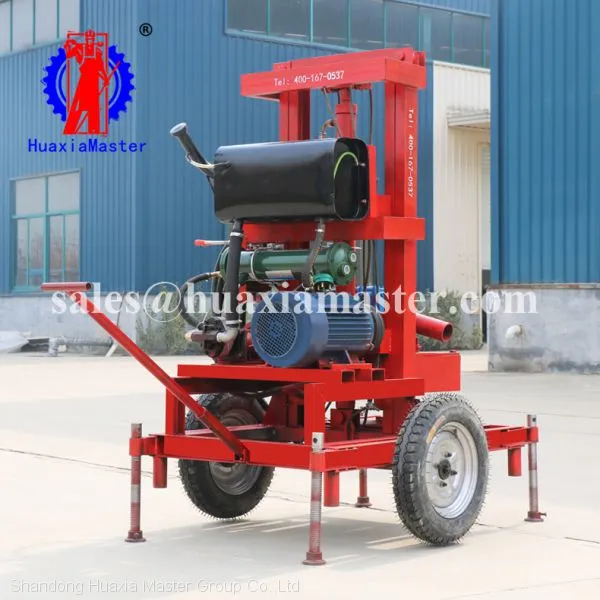

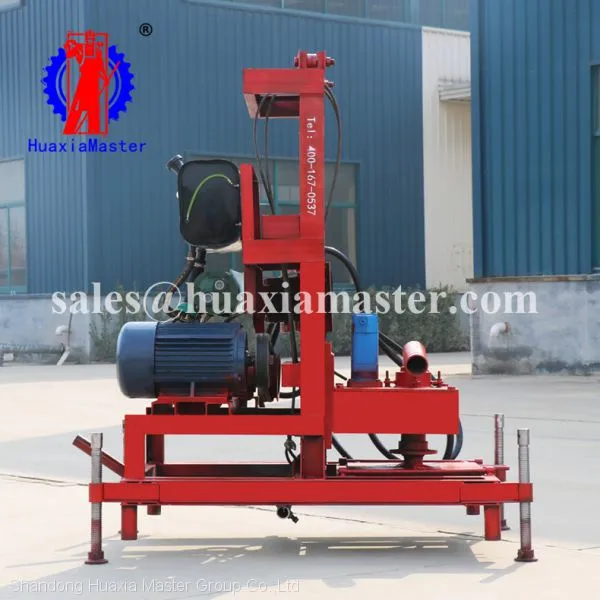

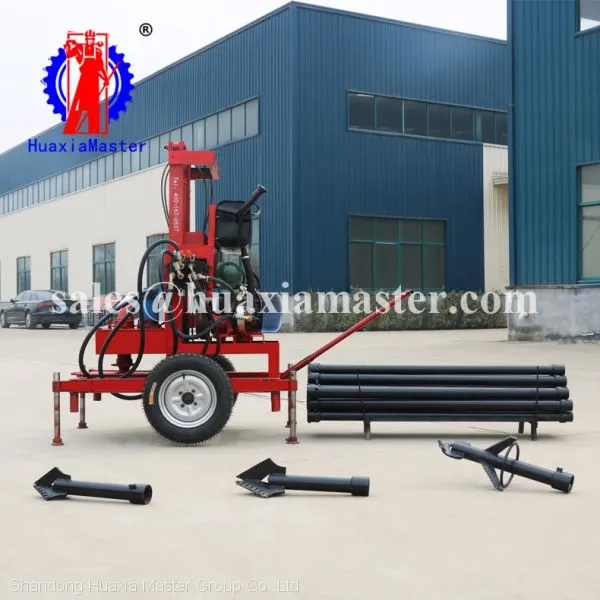

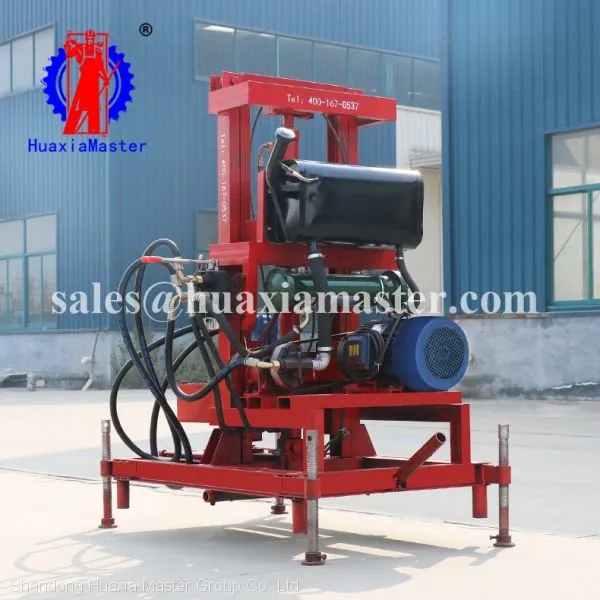

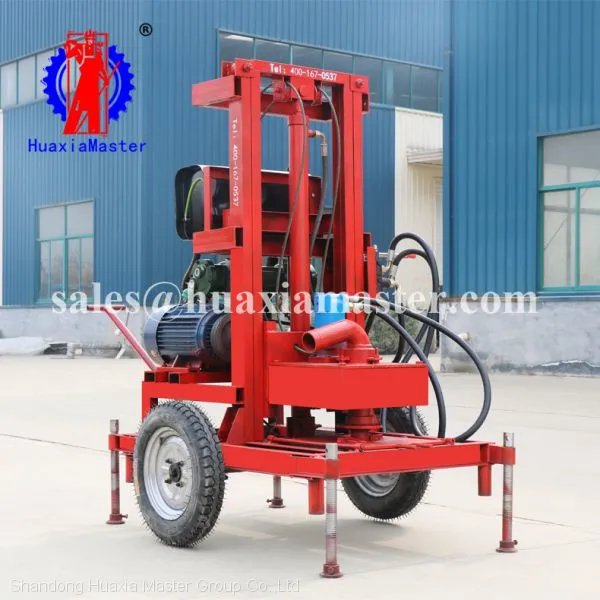

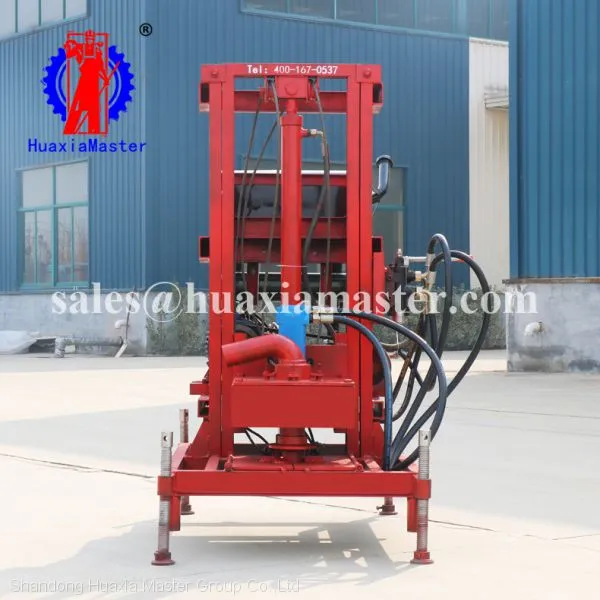

SJDY-3 Three-phase Electric Full Hydraulic Water Well Drilling Rig
1.Introduction of SJDY-3 three-phase electric full hydraulic water well drilling rig
SJDY-3 three-phase electric full hydraulic water well drilling rig is suitable for soil layer, sand layer and a small amount of rock layers. It is mainly used for drilling civil water wells, irrigation wells, ground source heat pump air conditioning wells, precipitation wells, small foundation piles, and sound measurement tube and so on. SJDY-3 three-phase electric hydraulic water well drilling rig is light and compact with high hole-forming speed and low noise. The machine automatically unloads the drill pipe and is easy to move.
2. Parameters of SJDY-3 three-phase electric full hydraulic water well drilling rig
Drilling depth |
m |
0~120 |
Maximum opening hole diameter |
mm |
500 |
Final hole diameter |
mm |
150~500 |
Drill pipe specifications |
mm |
Φ60*1500 |
Rated voltage |
V |
380 |
Rated power |
kw |
7.5 |
Spindle torque |
N.m |
500 |
Rated lifting force |
kn |
10 |
Lift stroke |
mm |
900 |
Rig weight |
kg |
320 |
Number of operators |
2 |
(Please specificy if order screw bracing, wheel and tow bar)
