CNC Corner Cleaning Machine
SQJB-CNC-120
For cleaning PVC profile weeding seam,cleaning the up/botton surface and the external conner
1.Equipment Features
1.1 For cleaning PVC profile weeding seam .
1.2 Doable -axis control systme
1.3 Cleaning the up/button surface and the external conner
1.4 High processing precision due to size error compenstion function .
1.5 Can store many programes for various profile processing .
2.Technical Parameter
2.1 Input power :1.5kw
2.2 Power supply: 380V/50Hz
2.3 Working pressure :0.4-0.7Mpa
2.4 Motor rotary speed :2800r/min
2.5 Air consumption: 80L/min
2.6 Cutting width :20-100mm
2.7 Cutting height:20-150mm
2.8 Drawing groove width:0.3mm
2.9 Overall dimension:1600x880x1650
3.0 Weight:600kg
3.Parameter
Input power |
1.5kw |
Power supply |
380V/50Hz |
Working pressure |
0.4-0.7Mpa |
Motor rotary speed |
2800r/min |
Cutting width |
20-100mm |
Cutting height: |
20-150mm |
Drawing groove width |
0.3mm |
Overall Dimension |
1600x880x1650 |
Weight about |
600kg |

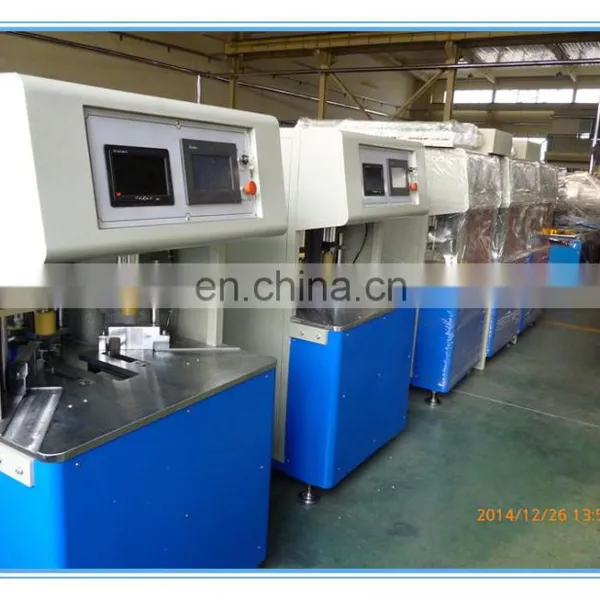

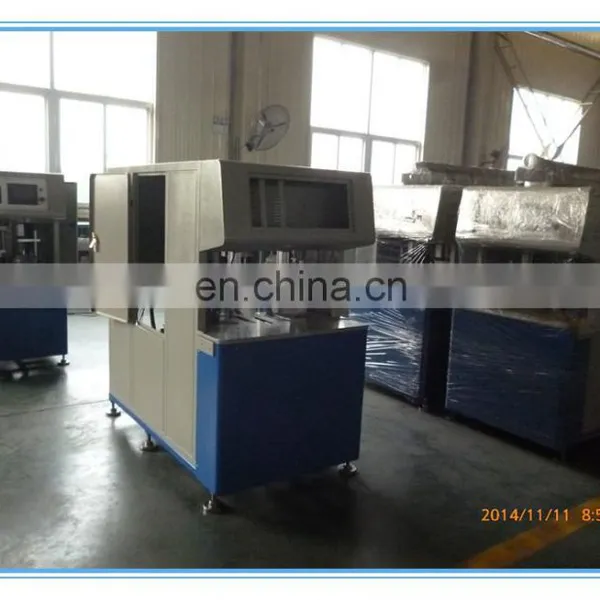

4.Picture of machine
