CNC Corner Cleaning Machine
For cleaning PVC Profile weeding seam,cleaning the up/botton surface and the exteral conner
1.Equipment Features |

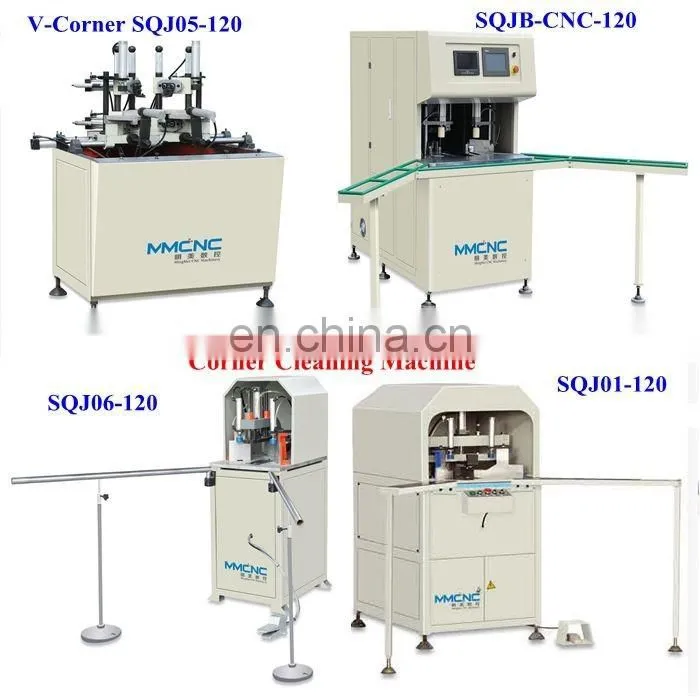

We have four types of corner cleaning machine |
This machine is used for plastic door window

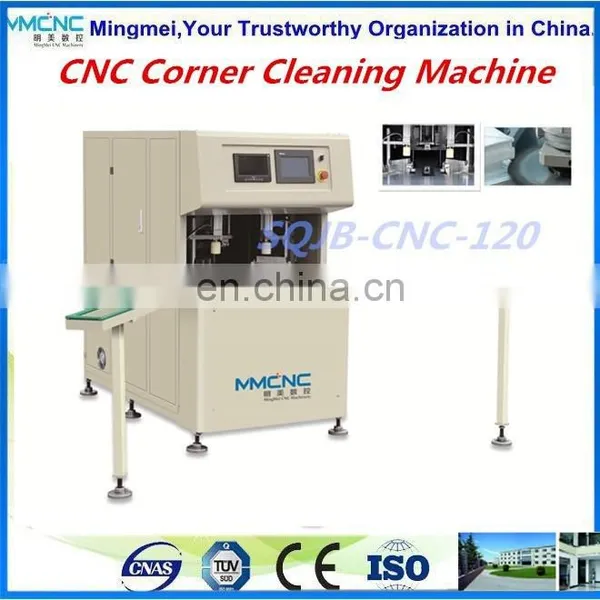

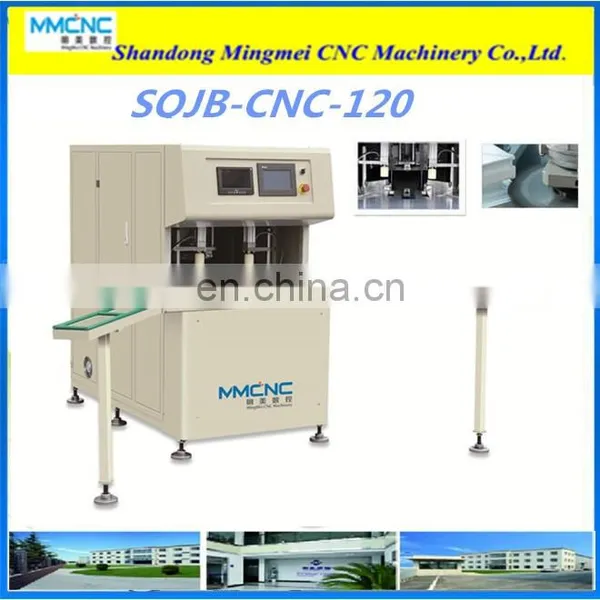

SQJB-CNC-120
For cleaning PVC profile weeding seam,cleaning the up/botton surface and the external conner.
1.1 For cleaning PVC profile weeding seam .
1.2 Doable -axis control system
1.3 Cleaning the up/button surface and the external corner
1.4 High processing precision due to size error compensation function .
1.5 Can store many program for various profile processing .
SQJ01-120
For 90° glass batten cutting of aluminium and PVC profile
1.1 Cleaning the up/bottom surface and the external corner
1.2 Special cutter to clean the external corner
1.3 Need change cutter to clean different kinds of profiles
SQJ06-120
Cleaning the 90°corner of frame or sash(only for up/bottom surface).
1.1 Cleaning the 90 conner of frame or sash (only for up/botton surface)
1.2 High processing quality
1.3 Easy operation,high efficiency.
SQJ05-120
1.1 special for mullion V-shaped welding and cross welding cleaning
1.2 Special centering device for easy adjusting
1.3 Reliable clamping and high processing quality
1.4 Two hand safety operation
2.Technical Parameter |
For Corner Cleaning Machine |
1 |
Model |
SQJB-CNC-120 |
2 |
Air Pressure |
0.4~0.7Mpa |
3 |
Air Consumption |
80L/min |
4 |
Input Voltage |
380V/50Hz |
5 |
Input Power |
1.5Kw |
6 |
Profile Height |
20-150mm |
7 |
Profile Width |
20-100mm |
8 |
Drawing groove width Drawing groove depth |
3 mm 0.3mm |
9 |
Overall Dimension |
1600x880x1650mm |
10 |
Weight |
about 600kg |
4.Detailed photos |

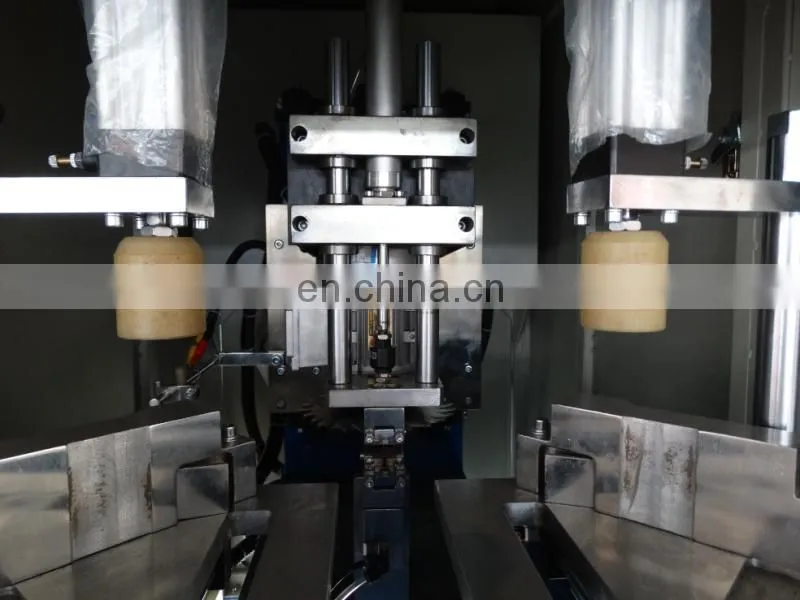

Some parts of the machine |

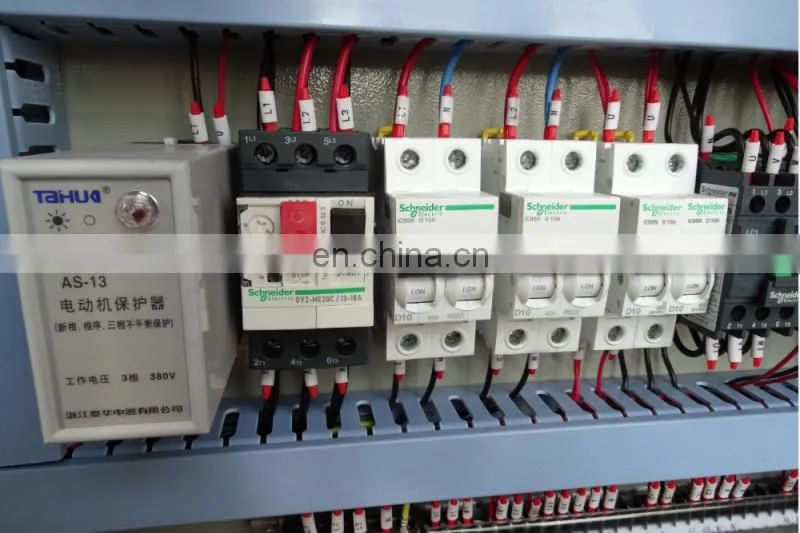

Three cutters,cleaning the up/botton surface and the external corner(Five cutters optional) CNC Control SystemFrance Schneider Electric Parts

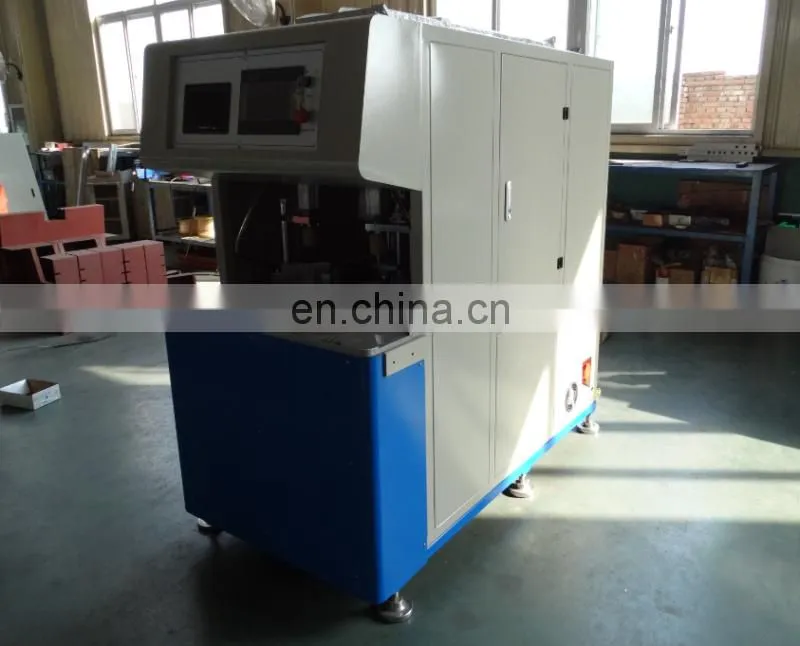

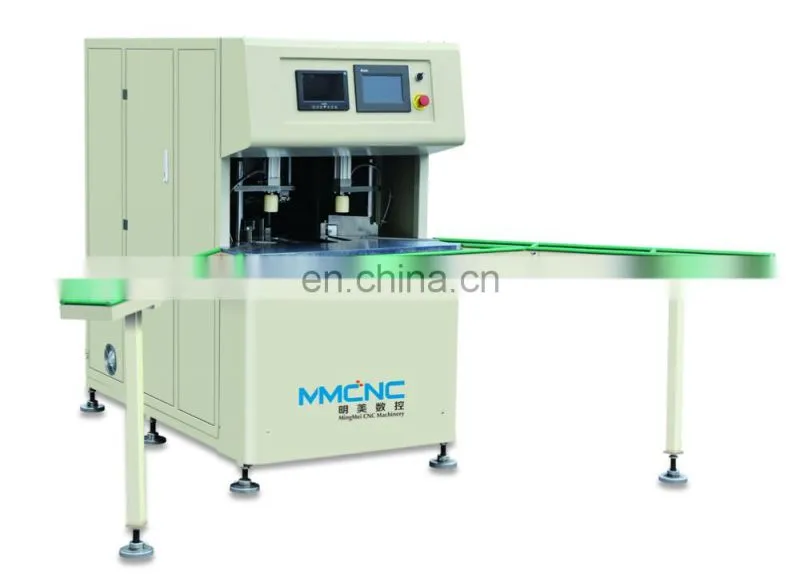

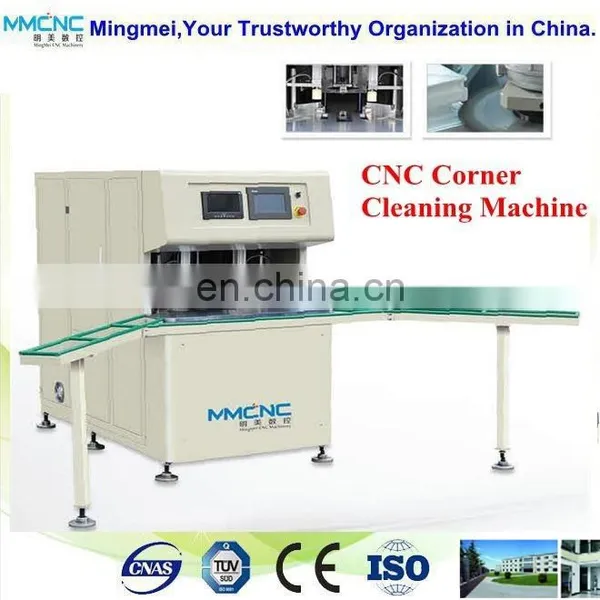

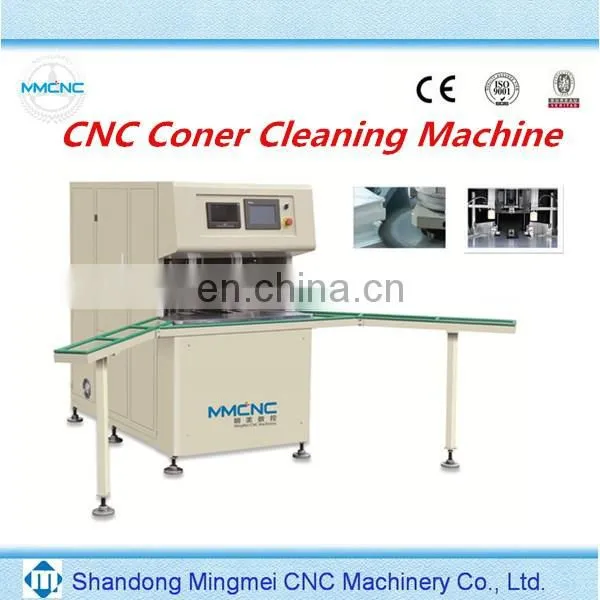

Overall Machine Photos
