Multi Spindle Copy Router/curtain Wall Machine
- Qingdao China Multi Spindle Copy Router for Aluminum Profile
- T/T Credit Card
You May Like
-
Kt-393b Single Spindle Copy Milling Precise Routers
-
Look for Distributor Poland Lw-100 Top Quality Lowest Price Aluminum Window Door Bending Machine
-
Look for Distributor Vietnam Door and Window Machinery
-
Look for Distributor Vietnam Bending Machine for Aluminum Window and Door
-
V-shape 45 Degree Cutting Saw Aluminum Pvc Profile v Notch Saw Hot Sale in Australia
-
Pvc Window and Door Profile Aluminum Cut off Saw
Product Details
| Brand Name | Mingmei | Model Number | ZLXF2-1900*125 |
Iron frame or plywood box curtain wall machine
Product Description
curtain wall machine
Multi Spindle Copy Router for Aluminum Profile
ZLXF2-1900X125
It is used for several of holes,grooves and eater-slots on aluminum windows & doors or curtain
walls.
1.Equipment Features
1.1It is used for several of holes, grooves and water-slots on aluminum window&doors or
curtain walls.
1.2It has the features of compact structure, nice design.
1.3The air pressure drives large horizontal shift range, the clamping of the profile.
1.3The easy copy-routing plate replacement.
1.4Large useful scope, high efficiency and convenient operation achieve the continuous
processing and sat operation.
1.5Adopt two drive-head level and vertical, and can finish the clamping in two directions
simultaneously.
2.Technical Parameter
Power supply | 380V/50Hz |
Motor power | 2 x 3.0 kw |
Motor rotary speed | 0~18000r/min |
Working air pressure | 0.5~0.8MPa |
Milling cutter diameter | φ5,φ8 |
Copy-routing range | 1900 x 125mm |
Profile section Up | Up:W230 x H150 SIDE:W230 x H135 |
Contour dimension | 2600 x 1400 x 1700mm |
Weight about | 502kg |

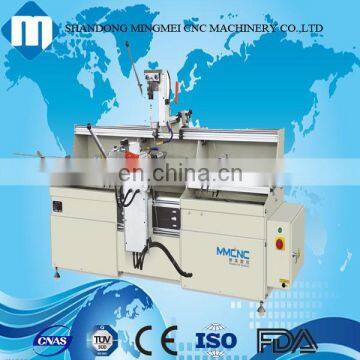

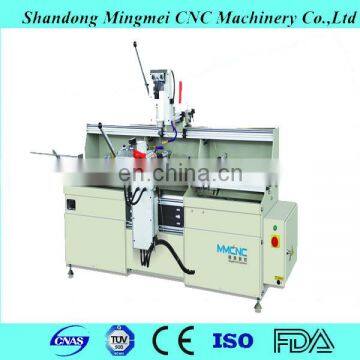

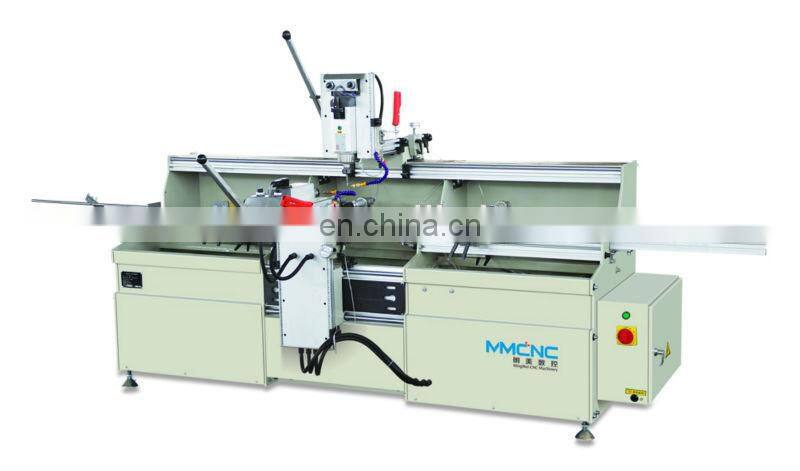

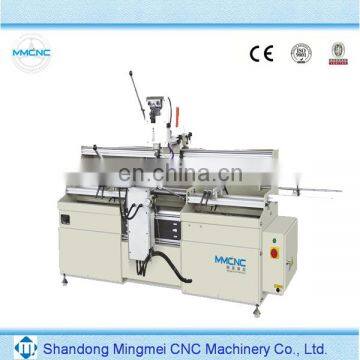

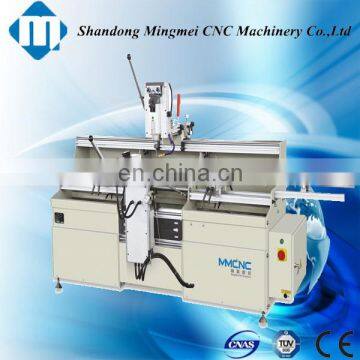

3. Picture of Machine

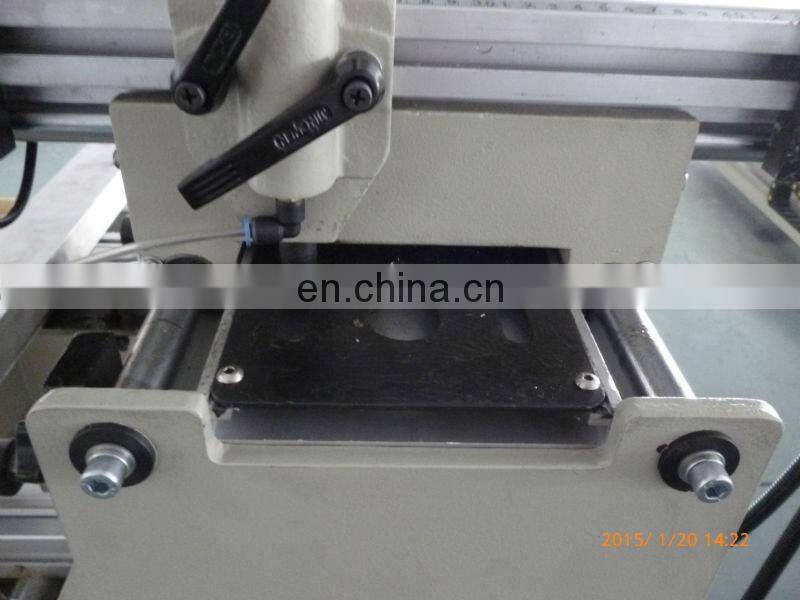

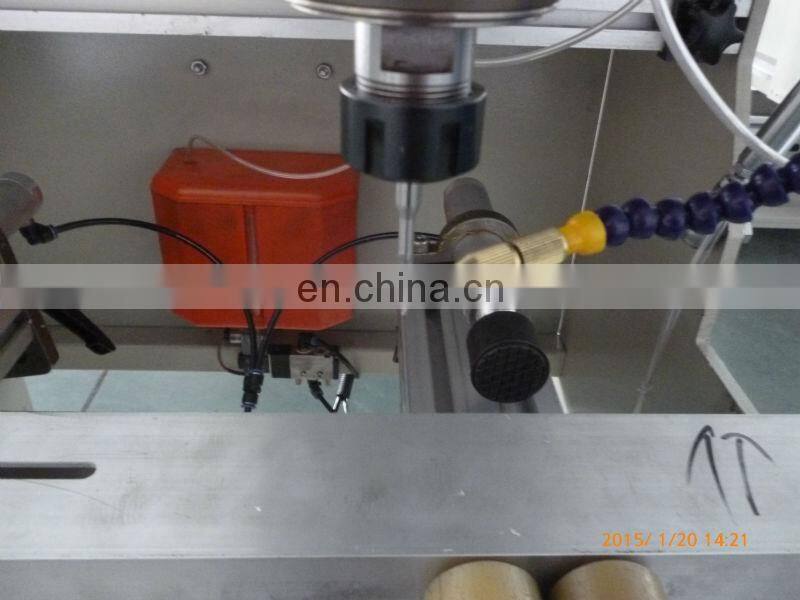

4.Detailed Picture
5.Our factory-Showroom
l 1.One year warranty time, we can repair and replace parts for free in one year.
l 2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
l 3.Life time free maintenance service.
l 4.Free training course at our factory with professional engineers.
l 5.We provide the consumable parts at agent price when you need replacement.
l 6.Engineer available overseas.
Our Certificates
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
