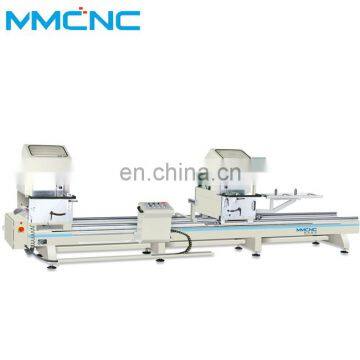

aluminum profile Digital Display Double Head Cutting Off Saw Machine
LJZ2X-500x4200(Digital Display) |
1. Feature 1.1 Imported carbides blade is of accurate processing and high endurance . 1.2 Saw blade rotates smoothly due to high accurate main spindle . 1.3 Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder. 1.4 The feeding system adopts the imported linear guide pair ,with high accuracy and stability. 1.5 Two saw heads are adjustable and cut the profiles in 67.5°, 45° ,90°freely 1.6 Auto -opening shield make the operation safety . 1.7 The machine adopts digital display device ,the length is more accurate ,more intuitive to operate |
Double Head Cutting Saw Configurations | |
Model | LJZ2X-500x4200 |
Input power | 2x2.2Kw |
Power supply | 380V/50Hz or according to customer requests |
Air pressure | 0.5~0.8MPa |
Motor rotary speed | 2800r/min |
Saw Blade specification | Θ500xΘ30 |
Cutting angle |
45° 67.5° 90°
|
Cutting length | 400~4200mm |
Cutting width x height | 135x200mm |
Weight | 1480kg
|
Details Showing of double head cutting saw |
1) Detail Photos
2) Double head cutting saw under cutting testing before shipment
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.Company cover an area of 70000
square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door as
well as curtain wall, such as---Double head Cutting Saw;Corner Crimping Machine;End miller;
Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.
which these machine have got CE,ECM,EEC authorization .and it has won good market
reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
Customers visit our company:
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
-Why chose MMCNC?
- Richful experience on aluminum profile cnc machining such like drilling milling on aluminum profile, industry include windows doors making, curtain wall, industrial aluminum profile SINCE 1995.
