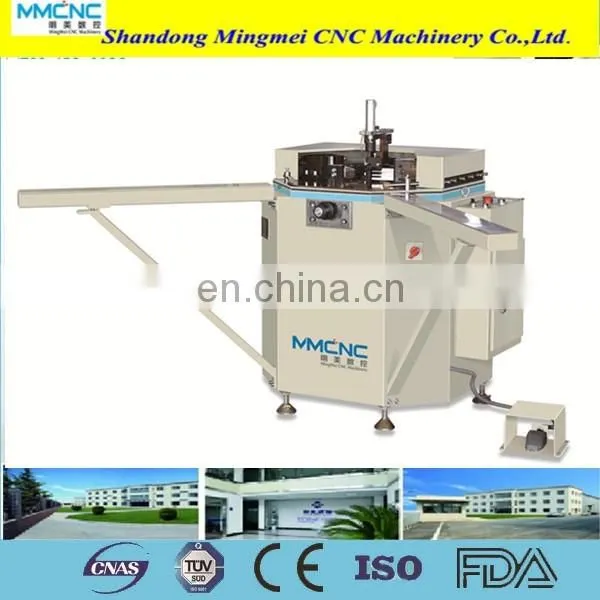

Corner Combining Machine
LMB-120
Used for corner punching combination of aluminum window & door,one corners connecting at one time is available
1.Equipment Feature
1.1 Strengthened machine structure and rack to make it work more stable and low malfunctions;
1.2 Auto up-down inner localization to make workpiece clamping convenient;
1.3 Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness;
1.4 Special high speed hydraulic system to supply fast crimping and high efficiency.
2.Technical Parameter
2.1. Input Power:3kw
2.2. Power supply : 380V/50Hz
2.3. Rated pressure : 20MPa
2.4 General pressure of corner combining : 26-41.6KN
2.5 Corner combining casing movement journey :0~ 95mm
2.6 Capability of oil box:60L
2.7 Profile processing width: 90mm.
2.8 Overall dimension :1150x1100x1300
2.9 Weight:about534kg
3.Parameter
Input Power |
3kw |
Power supply |
380V/50Hz |
Rated pressure |
20MPa |
General pressure of corner combining |
26-41.6KN |
Corner combining casing movement journey |
0~ 95mm |
Capability of oil box |
60L |
Profile processing width |
90mm |
Overall dimension |
1150x1100x1300 |
Weight:about |
534kg |

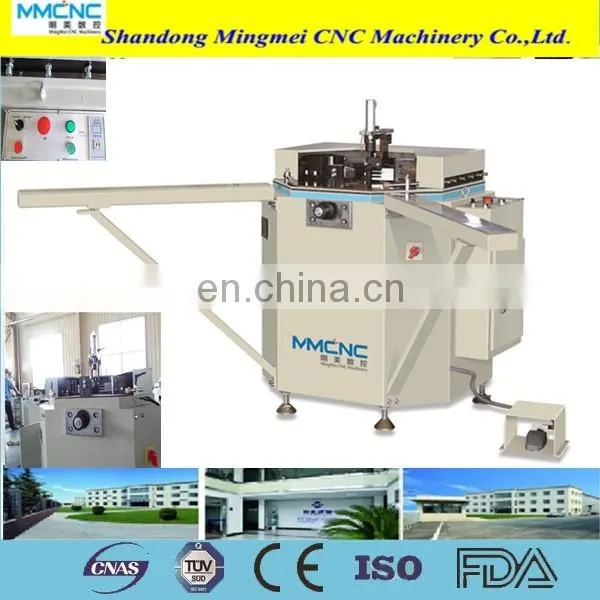

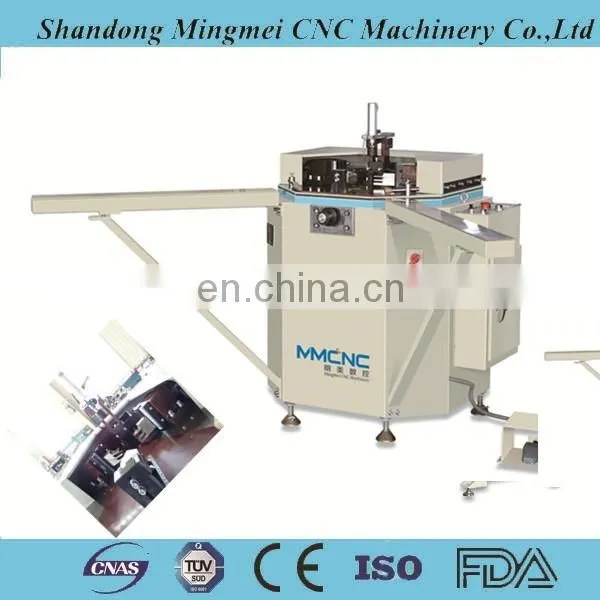

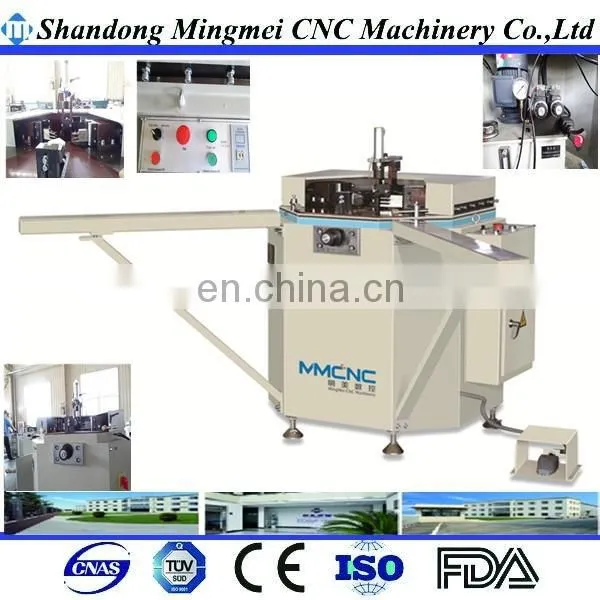

4.Picture of Machine

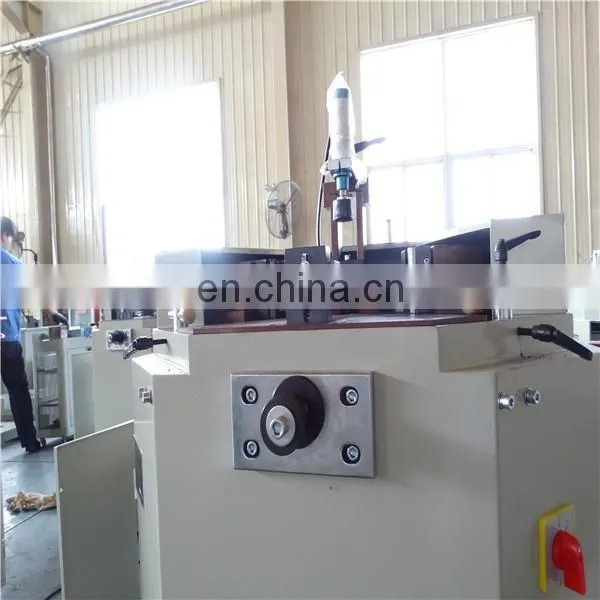

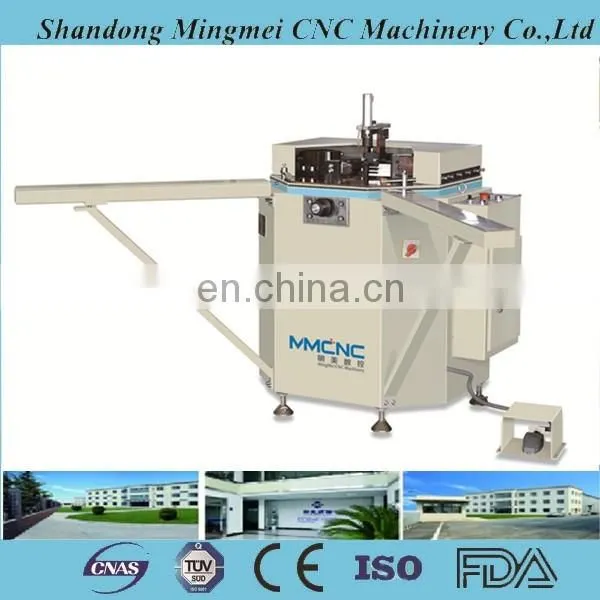

The machine for aluminium windows assembly in the factory

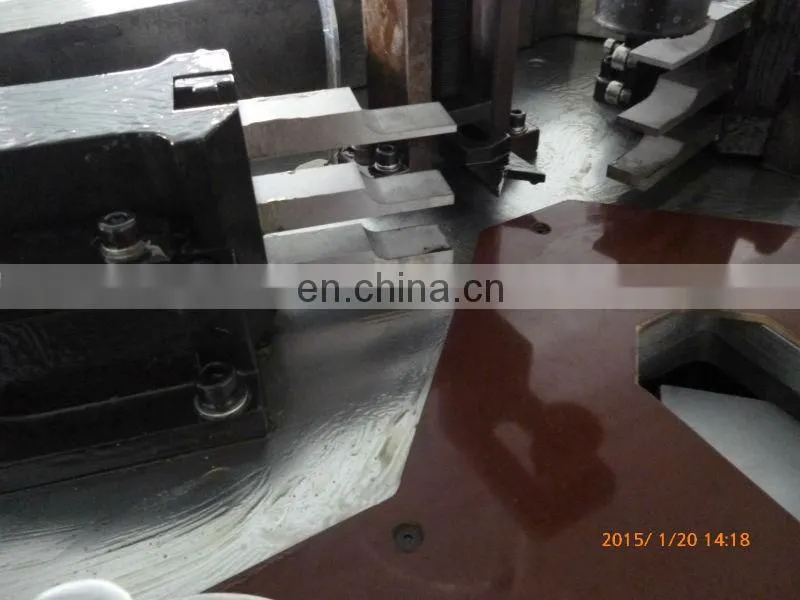

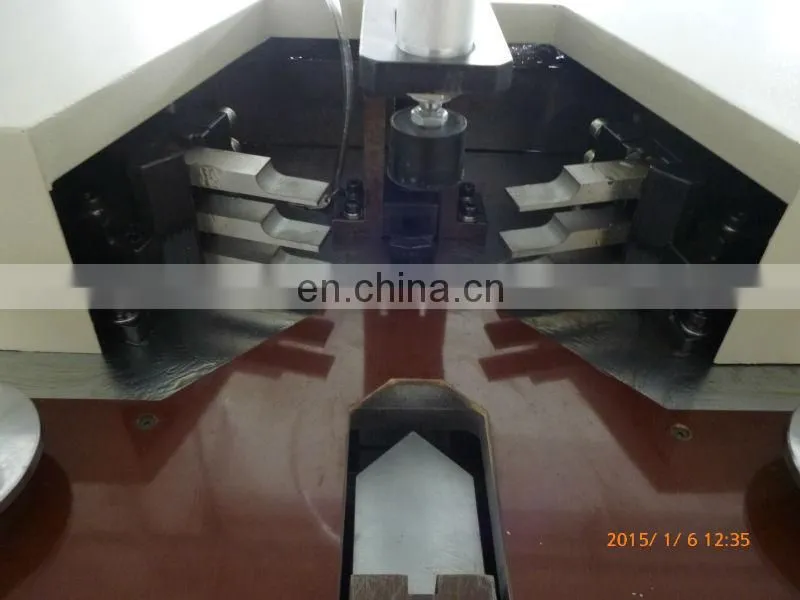

The cutter

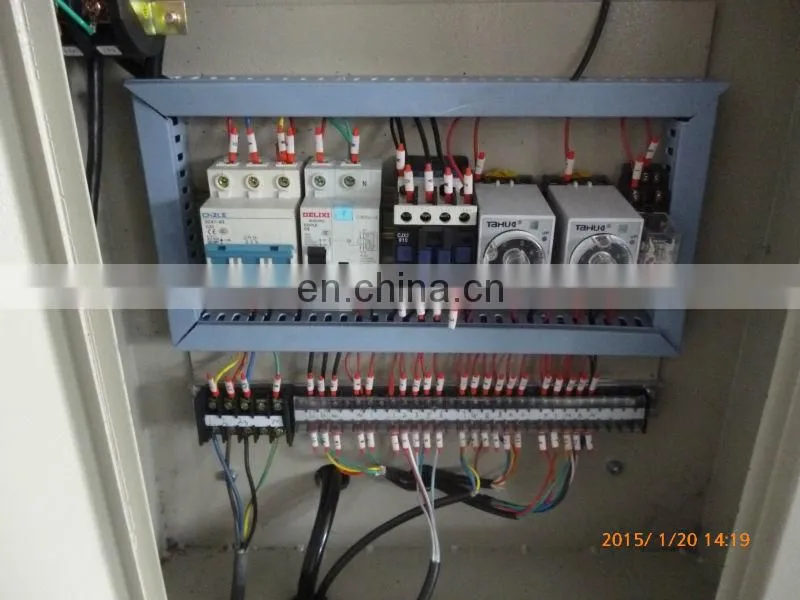

The control box

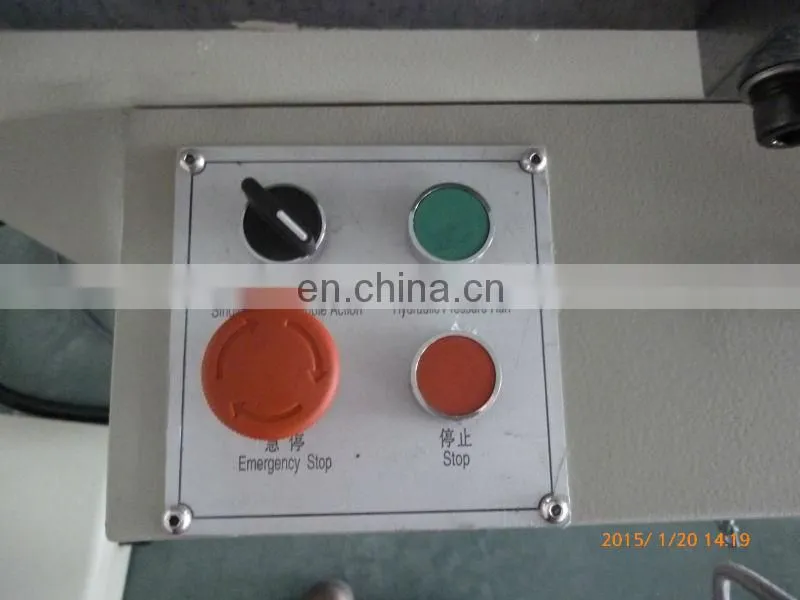

The switch
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
Why choose us

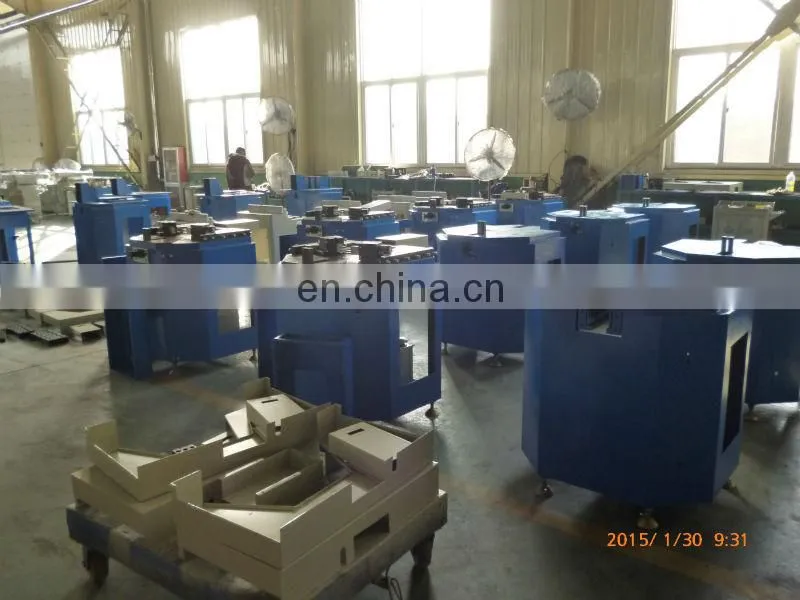

Our factory
