Help CenterMMCNC Manufacturing High Quality Window Screen Making Machine
Related Products
-
Corner Cutting Saw Heavy-duty Aluminum Window Corner Connector SawUS$ 800 - 5,000MOQ: 1 Set -
Mingei Aluminum Profile Combining Machine/ Aluminum Corner Combining Machine/ Aluminum Window Crimping Machine LJZ CombiUS$ 800 - 3,000MOQ: 1 Set
-
MMCNC Manufacturing High Quality Corner Combination Machine for Aluminum Win-doorUS$ 800 - 3,000MOQ: 1 Set
-
Corner Cutting Saw Heavy-duty Aluminum Profile Cutting SawUS$ 800 - 5,000MOQ: 1 Set
-
Corner Connector Cutting Saw Aluminum Window MachineUS$ 800 - 5,000MOQ: 1 Set

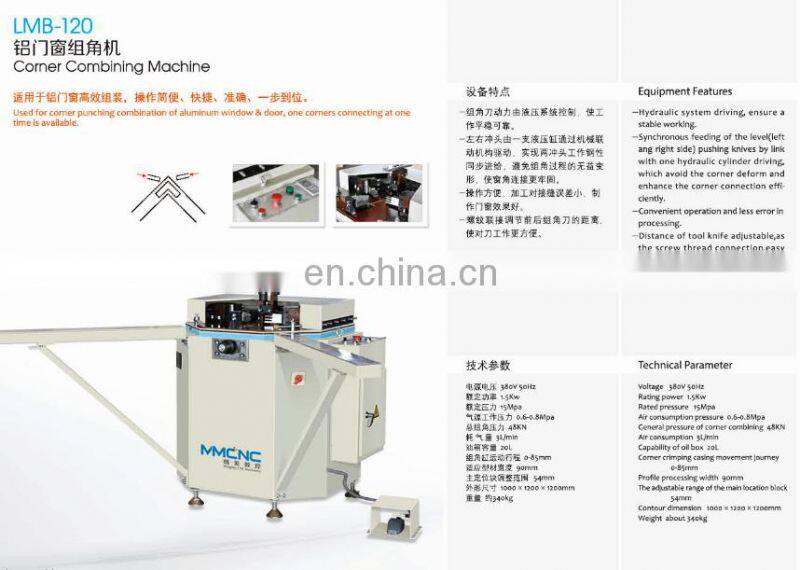

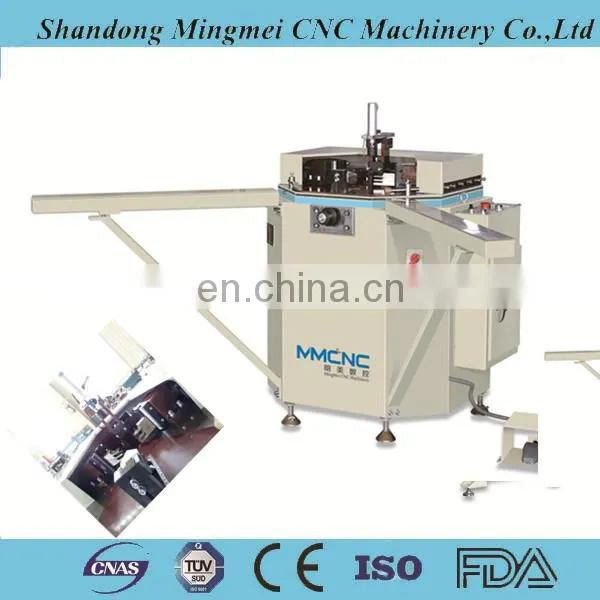

Used for corner punching combination of aluminum window & door,one corners connecting at one time is available
1.Equipment Feature

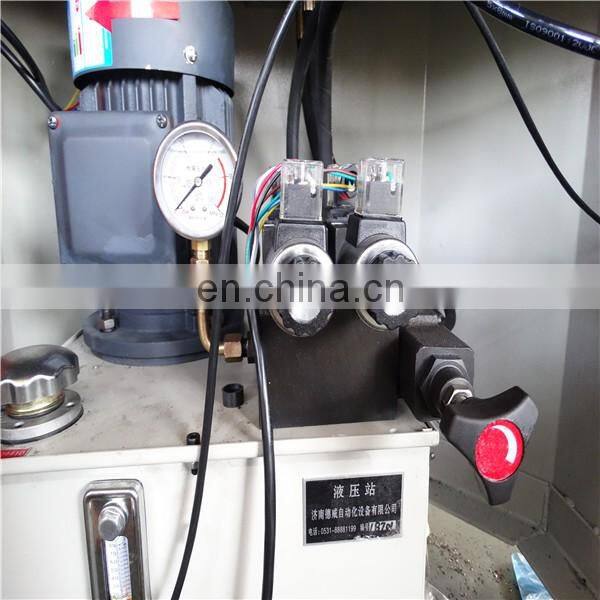

1.1 ·Hydraulic system driving, ensure a stable working

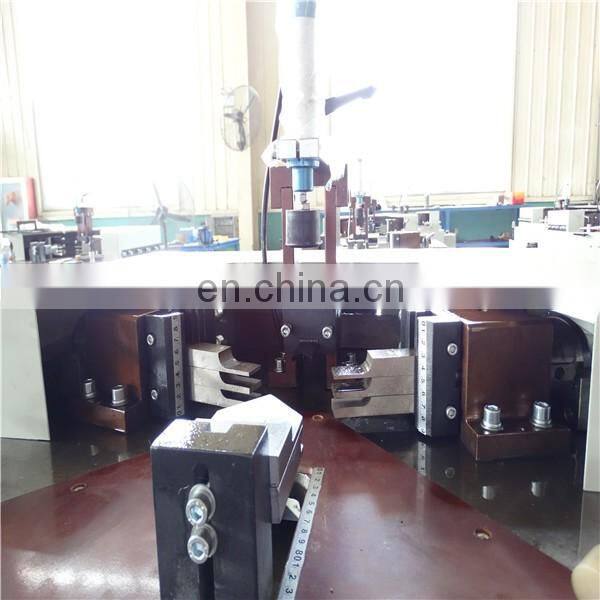

1.2 ·Synchronous feeding of the level(left ang right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently

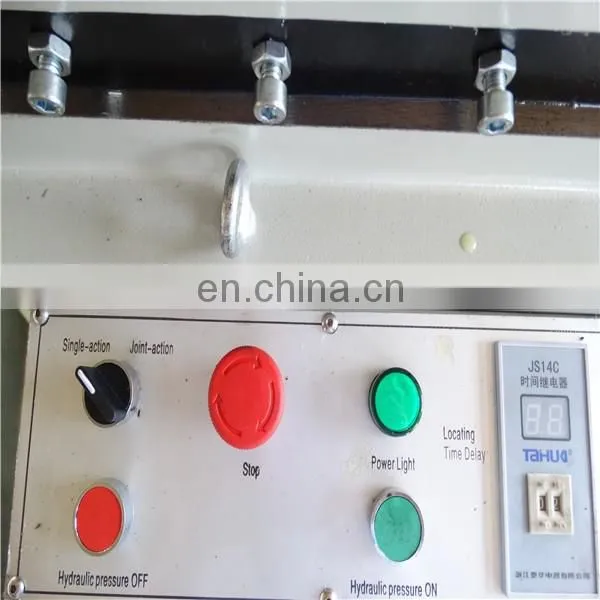

1.3 ·Convenient operation and less error in processing
1.4 ·Distance of tool knife adjustable,as the screw thread connection,easy working for tools
2.Technical Parameter
2.1. Voltage 380V/50Hz
2.2 Rating power 1.5kw
2.3 Rated pressure 15MPa
2.4 Air Consumption pressure 0.6~0.8MPa
2.5 General pressure of corner combining 48KN
2.6 Air consumption 3L/MIN
2.7 Capability of oil box 20L
2.8 Corner crimping casing movement journey 0~85mm
2.9 Profile processing width 90mm
2.10 The adjustable range of the main location block 54mm
2.11 Contour dimension 1000 x 1200 x 1200mm
2.12 Weight about 340kg
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.

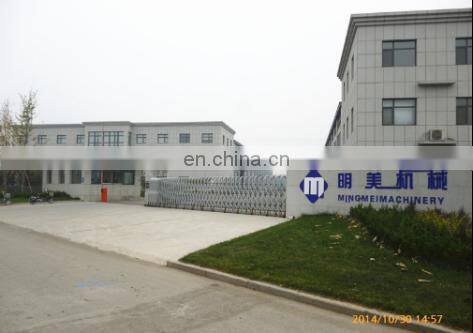

Factory

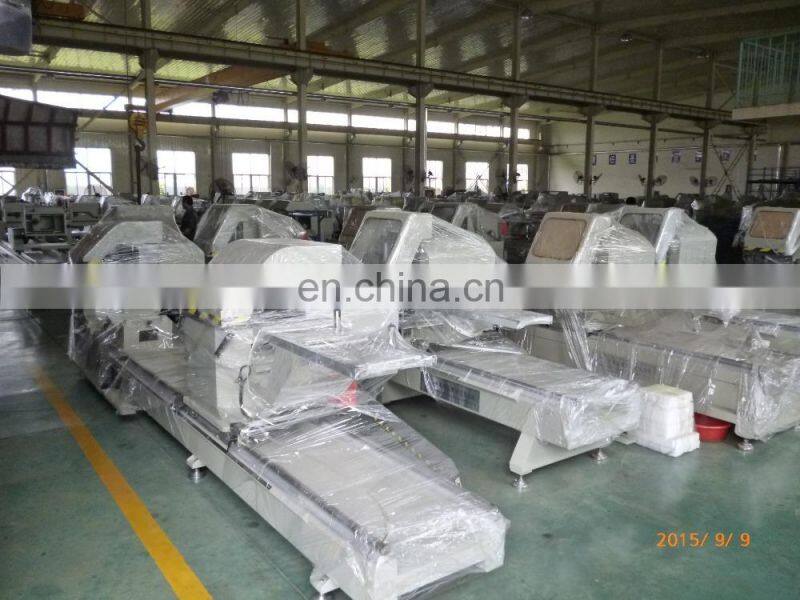

Workshop
Our Workshop

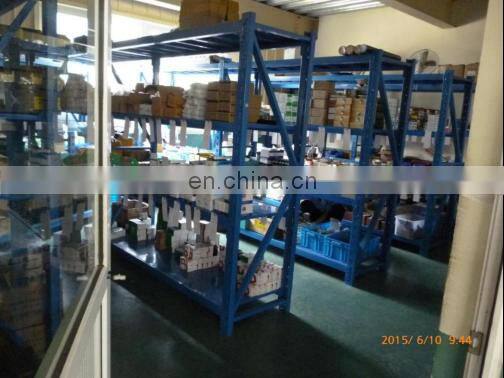

Warehouse
Our Warehouse
Team
Our Team
Packing Details : wood cased,iron frame
Delivery Details : 7days after received your deposit
Our customer come from different countries for different machines

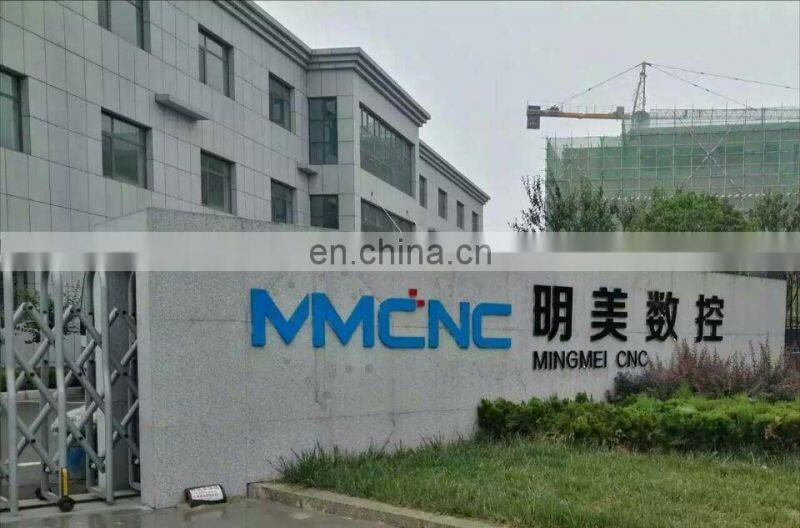

In this year,our company upgrade(We enlarge production capacity, and enlarge production workshop. Company also upgrade from Jinan Mingmei to Shandong Mingmei CNC ).So we changed the symbol “MMCNC”
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A:No,because we are big machine.Before delivery ,you could come to our factory to test machine until you fell okay.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
