Shandong Mingmei copy milling router
with triple drilling for aluminium profiles OEM manufacturer
1.Main Features for triple drill copy routing machine |

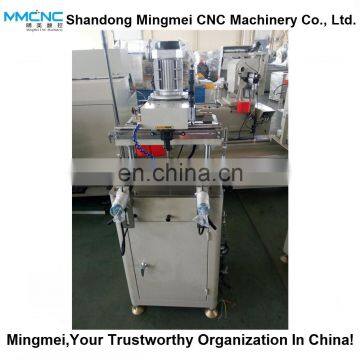

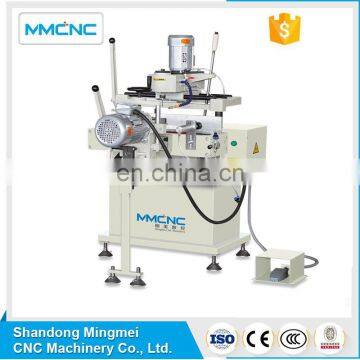

LX3FX-235x100 Single-head copy-routing drilling machine 1.1 Used for copy-routing processing various kinds of holes,groovesand water-slots on aluminum windows and doors 1.2· By copying template and auxiliary positioning two copying method 1.3· Using a foot switch control the pressing cylinder, safe and reliable 1.4· It has features of compact structure and small volume |
2.Specifications for upvc copy-router drilling machine |
Model | LZ3FX-235x100 | LZ3FX-290x100 |
Input Power | 2.2Kw | 2.25Kw |
Power Supply | 380V/50Hz | 80V/50Hz |
Air Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
Cutter Diameter | Φ5 Φ8 mm | Φ5 Φ8 mm |
Copy-routing range | 235x100mm | 290x100 |
Diameter of the three-hole drilling head | Φ10 | Φ12 |
| Centers distance of the three-hole drilling head | 21.5mm | 21.5mm |
Overall dimension | 870x1200x1500mm | 1000x1130x1600 |
Weight | about 220kg | about 220kg |
Three-hole drilling head

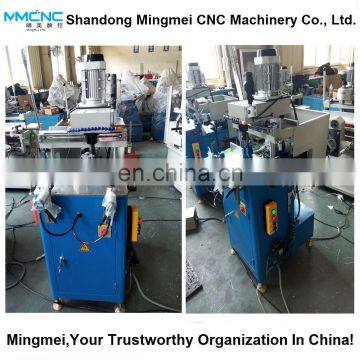

We have new and old type Copy Router
------Let us show the difference between new 235*100 and old 290*100
Exihition
Mingmei CNC: Supplying the most durable CNC machine is our lifelong promise!
- Mag Guo (Sales Manager)
- Tel: 0086 18766158398 ( WhatsApp / Viber / Wechat )
- Skype:maxicut.mag
- Email: mag@
Get in touch. Any questions about aluminum pvc window door machine,please call me or send enquiry.
