3 meter Aluminum Profile 3+1 Axis

CNC Drilling Machine

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,

engraving plane surface and other procedure.

1.Equipment Features

1.1 This machine is designed for processing round holes, slots, keyhole etc on aluminum profile,

window-door and curtain wall industry, it is also suitable for processing milling, chamfering, engraving plane surface and other procedure.

1.2 Main spindle adopt air-cooling electric main axis, 3KW power, 0~18000/min , have the function of high precision, high safety and high reliable.

1.3 Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.

1.4 Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving.

Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the

precision of whole machine.

1.5 The worktable can overturn 180°,-90°~0°~+90°,Clamping one time profile can realize

three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

1.6 Adopt manual pump oil supply system, blades adopt system control spray cooling device.

1.7 The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

1.8 The main components adopt steel structure and they are all through aging treatment.

2.Technical Parameter

2.1 Power Supply   380v/50hz

2.2 Air pressure 0.5-0.8Mpa

2.3 Total power 6Kw

2.4 Main axis power:3kw

2.5 Max rotary speed  18000r/min

2.6  X-axis journey:3000mm

2.7 Y-axis speed 500mm

2.8 Z-axis speed 350mm

2.9 X axis speed 50000mm/min

2.10 Y and Z axis speed 15000mm/min

2.11 Overall dimension 4180×1600×2200mm

2.12 Weight about 1400kg

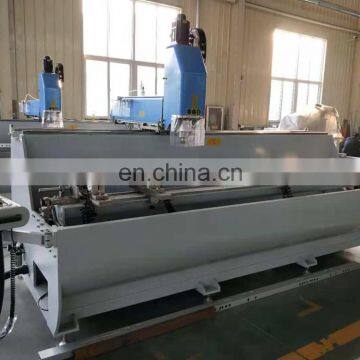

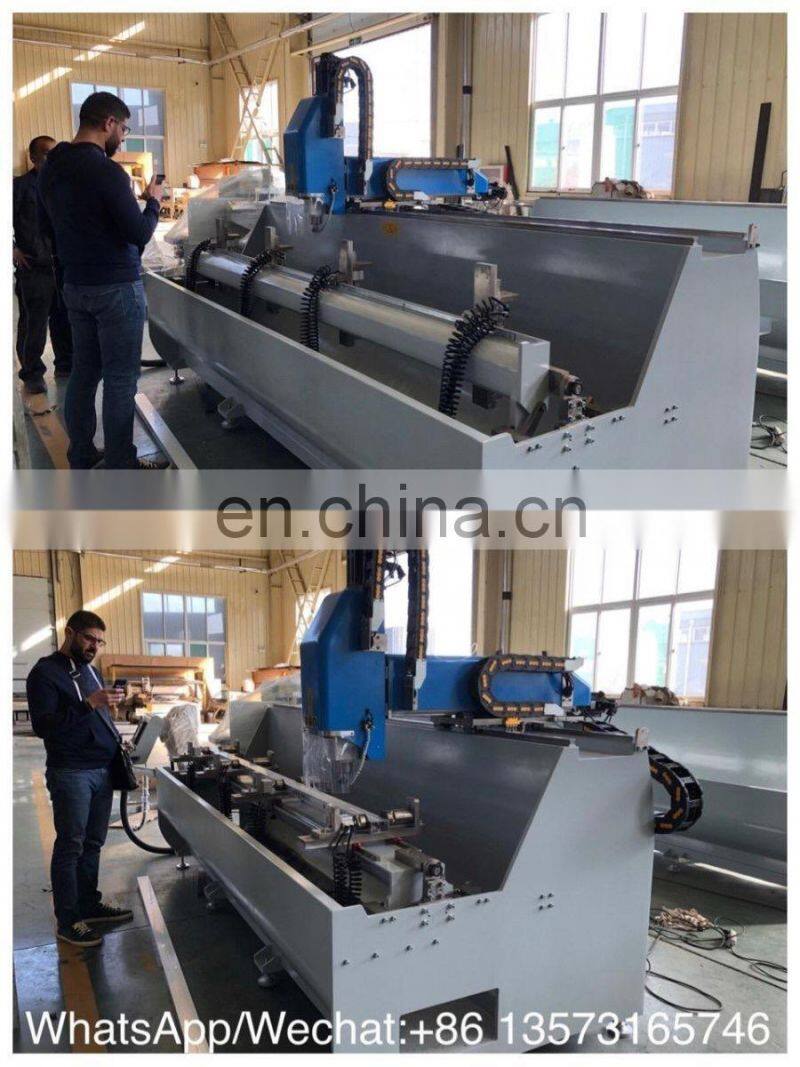

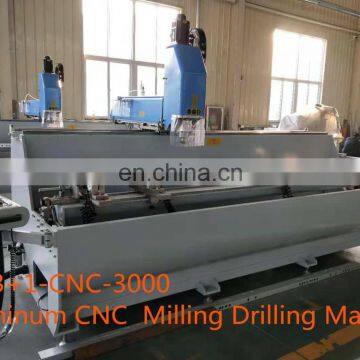

3.Detailed Photos

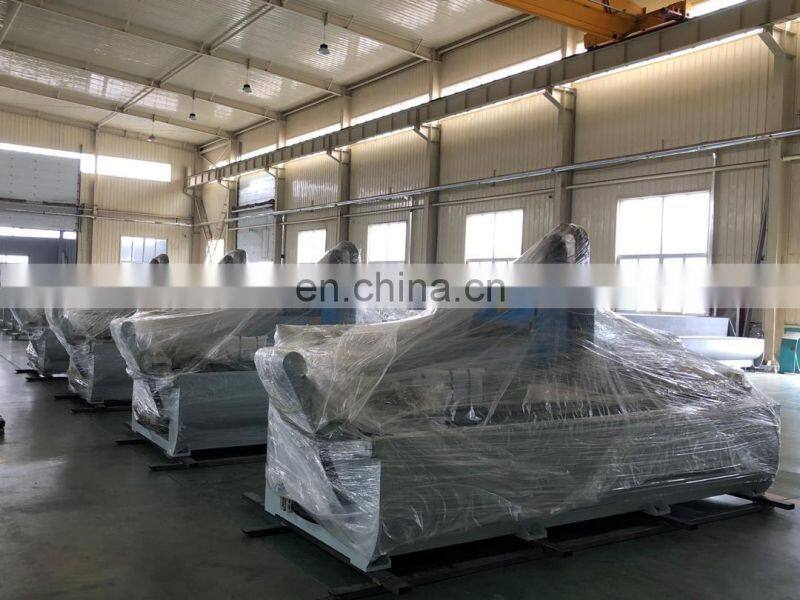

4.Packing and Delivery

5.Contact Demi for more info
