Single head Cutting Saw for aluminum profiles,Aluminum Window Corner Connector Cutting Saw,Aluminum Window Machine
1.Feature :
1.1 Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high
machining precision,high material utilization
1.2 The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision
1.3 With the function of automatic counting
1.4 With the device of spraying,which could improve the processing precision and prolong the service life of saw blade
1.5 Forward and backward profile butt joint without tailing,when the profile was cutting.
2.Technical Parameters:
| Cutting Length | 5 mm---1000 mm |
| Motor Power | 3 KW(Main Spindle Motor) |
| Working Speed | 2800r/min |
| Dimension of Saw Blade | φ450xφ30mm x 2.6 |
| Working Air Pressure | 0.5~0.8MPa |
| Dimension | 2500 x 1200 x 1650 mm |
| The Length of Auto-feeding | 5--1000mm |
| Net Weight | 780kg |

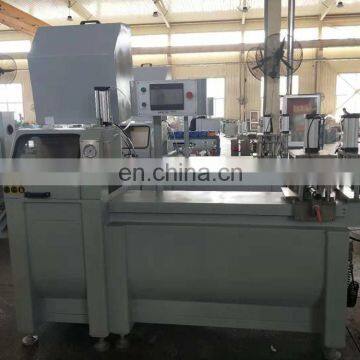

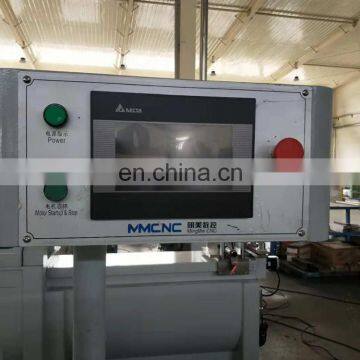

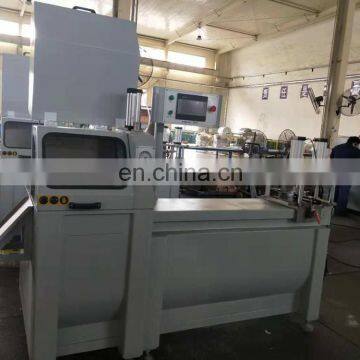

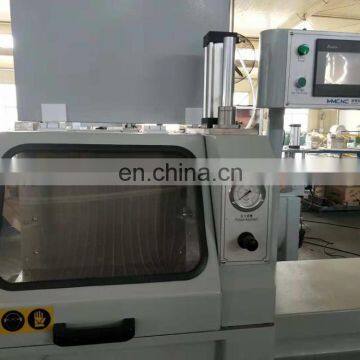

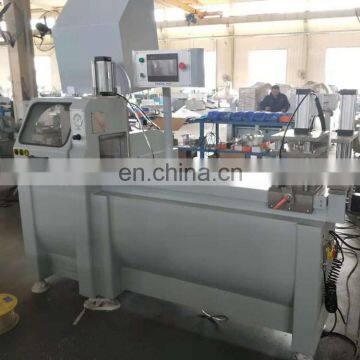

3.Detailed Photos&Sample
4.Delivery
5.Our factory Since 1995
