LZZ4-13 Multi-head Combination Drilling Machine for drilling holes on aluminum window door, aluminum facade profile
1.Equipment Features
1.1 Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume-produce.
1.2 Max processing profile section size is 250×250mm, max processing length is 5000mm.
1.3 Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
1.4 Feeding system adopts airdraulic-damping cylinder, which ensured smooth feeding.
1.5 Imported PLC control system with steady capability.
2.Technical Parameter
2.1 Power supply 380V 50HZ
2.2 Cutting motor power 4×1.1Kw
2.3 Max distance between two drilling holes 5000mm
2.4 Min distance between each group holes 300mm
2.5 Worktable size 300×200mm
2.6 Drilling head feeding travel 125mm
2.7 Feeding pressure 0.5~0.8MPa
2.8 Max processing profile section size 250×250mm
2.9 Overall dimension 5500×1100×1800mm Weight about 1175kg

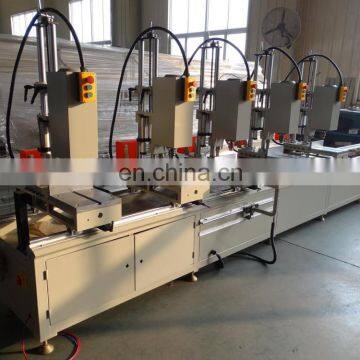

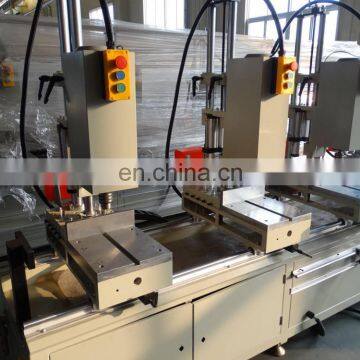

3.More detailed photos
4.Contact Demi freely for further info
