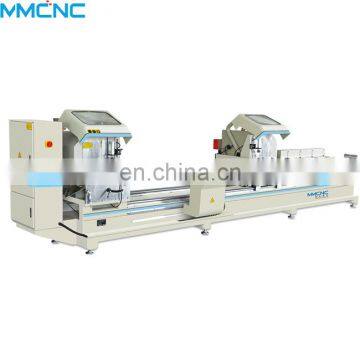

Double Head Mitre Saw Aluminum Profile Cutting Machine

Aluminum Window Profile Double-head Precision Cutting Saw CNC LJZ2S-500x4200

1. Feature
1.1    Imported carbides blade is of accurate processing and high endurance
1.2    Saw blade rotates smoothly due to high accurate main spindle
1.3    Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
1.4    The feeding system adopts the imported linear guide pair,with high accuracy and stability
1.5    Two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.
1.6    Auto-opening shield maked the operation safety.
1.7    Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.
1.8    This machine uses the numerical control technology,profiles pf different of different specifications can be completed automatically under the expected size.

2. Technical Parameter
2.1    Input power: 5.9kw
2.2    Power supply: 380V/50Hz
2.3    Air pressure: 0.5~0.8MPa
2.4    Motor rotary speed: 2800r/min
2.5    Saw blade specification: φ500xφ30
2.6    Cutting Angle: 90° 67.5° 45°
2.7    Cutting Length: 400-4200mm
2.8    Cutting Width X Height: 135X200mm
2.9    Overall Dimension: 5700X1650X1520mm
3.0    Weight: About: 1613KG

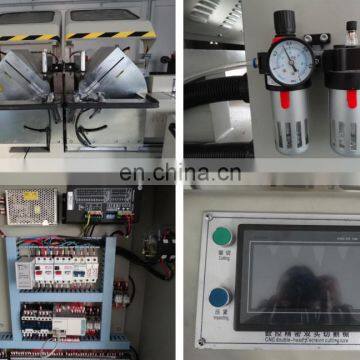

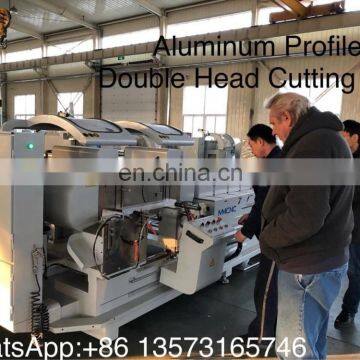

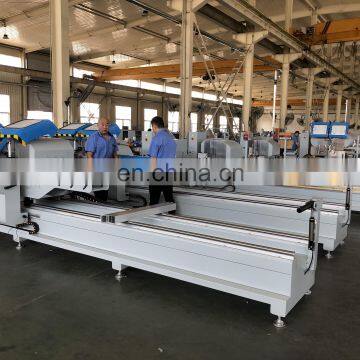

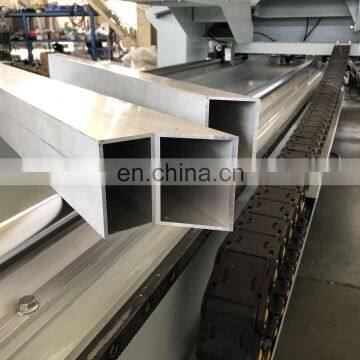

3. Detailed Photos

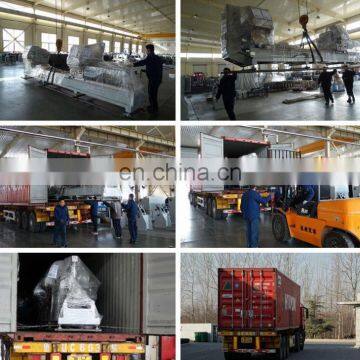

4.Packing&Delivery

 5.Contact Demi for other Aluminum&PVC Window Door Making Machine Or Aluminum Curtain Wall/Facade Machine, Industrial Aluminum Machine
