Double Head Cutting Saw Aluminum and PVC Window Machine

Aluminum Double Head Saw

JZ-600x5000

1.Feature:

1.Two head adopt cylinder transmit can achieve head sawing separately, Can sawing 90 and outer 45 degree.

2. Have the function of chose clamping press, Vertical and horizontal clamp can control in separately also can clamping together.

3. Head sawing adopt program control, make the complicate circuit integration, and reduce the fault about electric components.

4. Right head conveyor is 1200mm

5. Head is moved by handle wheel

6. The min cutting scope is 430mm when  90°, Can cutting 5000mm when 45°

2.Parameter:

 2.1  Voltage:380v 50Hz

 2.2  Working Pressure: 0.6~0.8MPa

 2.3  Power: 4.0kwx2

 2.4  Blade specification:Ø600x30

 2.5  Cutting Scope:   90°min 430mm, outer 45°, max 5000mm

 2.6 Cutting width*height: 200x200

 2.7 Dimension: 6620x19500x1700

 2.8 Weight: 2700kg

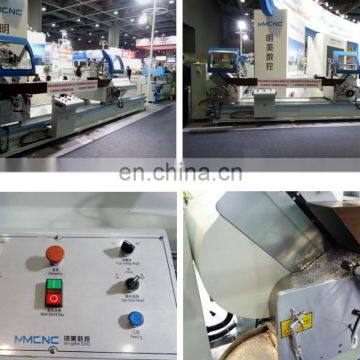

3.Machine Photos

 4.Aluminum Profile Cutting Samples
