Aluminium Window and Door Milling Mullion Aluminum Profile End Miller

End-milling Machine for Aluminum Profile

Window Door Curtain Wall

1.Features

1.1 Used for aluminum profile strengthens the very end processing and suitable for various profiles with profiles,fixed,moveable cutter,the vector variable frequency speed control device of feed speed adjustable,rapid retreat knife ,wherein the vertical knife blade disposable milling a plurality of reinforced out profile desired dimensions,improve production efficiency.

1.2  Convenient tool adjustment to meet different processing requirement,need not ordering tools when process various profile,thus candecrease cost and save time.

1.3 Large tool diameter,high milling speed and good processing resul.

2.Technical Parameter

2.1 Power supply:380v 50hz

2.2 Cutting motor power:4x2.2kw

2.3 Motor rotary speed:2800r/min

2.4 Operation air pressure:0.6-0.8mpa

2.5 Saw blade specification:φ250 xφ32mm

2.6 Feeding space of worktable:1600mm

2.7 Max open tenon:40mm

2.8 Cutter adjustment:85mm

2.9 Contour dimension:3080x1160x1600

2.10 Weight:1200kg

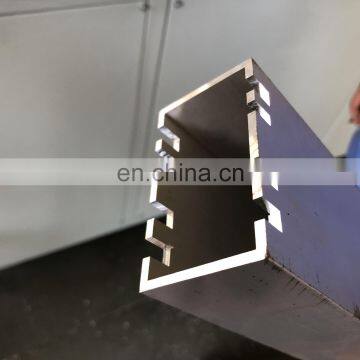

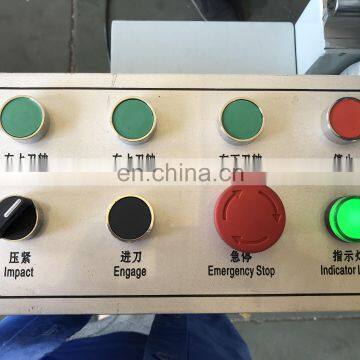

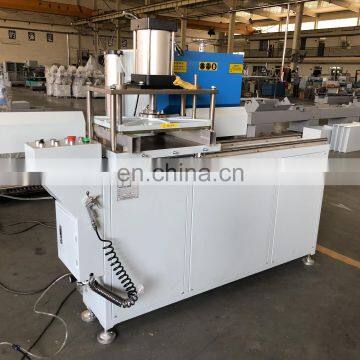

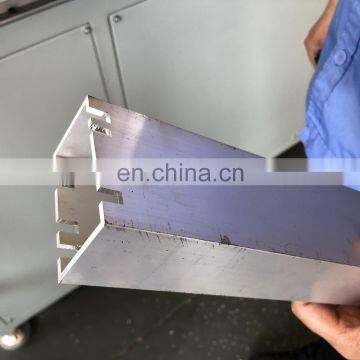

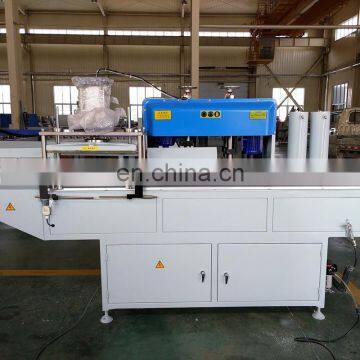

3.Photos

 4.Contact Demi for further information
