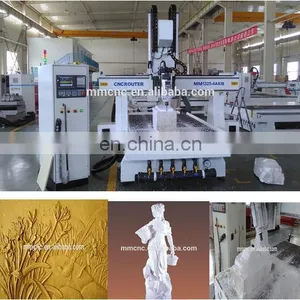

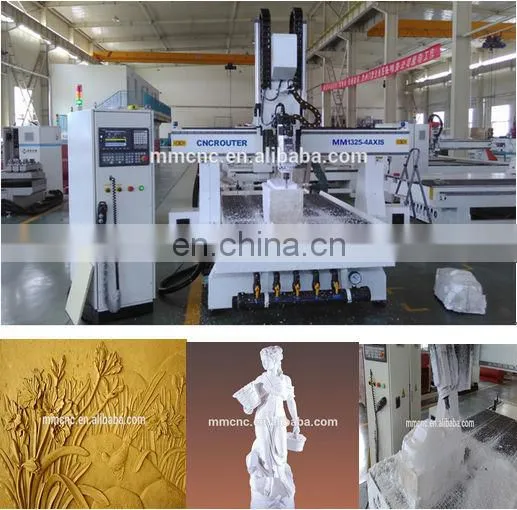

4-axis 3D CNC router MA1325/CNC Rotate Spindle/CNC Rotate Spindle/woodworking machinery
1.Applicable Industry and materials of hot sale atc 3D spindle cnc router:
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
2.Machine configurations of 4 axis automatic tool change engraver cnc router:
1.HSD spindle ----original famoue brand from Italian,also can choose Kolumb spindle
2.SYNTEC control system------It is from Taiwan with high performance and competitive price
3.Yaskawa servo motor and drives----They are from Japan with high precision and long life
4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium
5.Working area:1300*2500*400mm
C Rotary Axis:360o
6.Whole cast steel structure thicken to 8mm
7.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw
8.Automatic Tool Calibration - ----To guide rail and slide block , make it run better
9.Schneider electrical components - ----original brand from France
10.Japanese Omron Switch with long life
11.APEX Reudcer from Taiwan----More powerful and higher precision
12. T-Slot table with Aluminum sheel - -----Use clamp fixed materials
3.Machine Parameters
1 |
Model |
MA- 1325 |
MA-1530 |
MA-1836 |
MA-2030 |
MA-2040 |
2 |
X,Y Working Area |
1300x2500mm |
1500x3000mm |
1800x3600mm |
2000x3000mm |
2000x4000mm |
3 |
Z axis travel |
200mm-700mm(according to your requests) |
||||
4 |
Table Surface |
Vacuum and T-slot Combined(double use) |
||||
5 |
Frame |
Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type |
||||
6 |
X, Y Structure |
Helical Gear and rack transmission, Taiwan HIWIN Linear Rail |
||||
7 |
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
||||
8 |
Spindle Power |
China top brand Water cooling spindle / Italy HSD Air cooling spindle |
||||
9 |
Spindle Speed |
0-24000RPM / 0-18000RPM |
||||
10 |
Drive Motors |
Stepper Motor Driver/ Servo Motor Driver |
||||
11 |
Working Voltage |
AC220V/380V 1PH/3PH 50/60Hz, |
||||
12 |
Command Language |
G Code |
||||
13 |
Operating System |
Mach3 / NCstudio / DSP / Taiwan SYNTEC control system |
||||
14 |
Computer Interface |
USB port |
||||
15 |
Flash Memory |
512M |
||||
16 |
Collet |
ER20/ER25/ER30 |
||||
17 |
Inverter |
China top brand Fuling inverter / Taiwan Delta inverter |
||||
18 |
Software Compatibility |
Type 3 /Artcam |
||||
4.Details
5.Samples
6.The other CNC Router machine
7.Our customer
