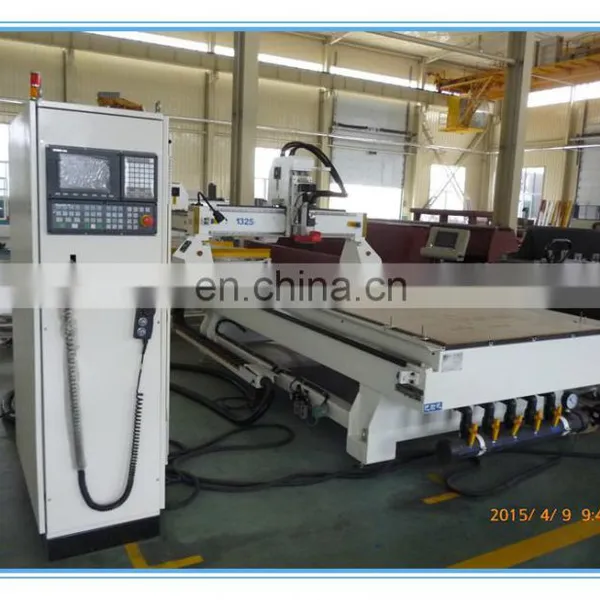

4-axis 3D CNC router MA1325/stone carving machine atc wood cnc router 2030/router cnc 2030

FOB Price

USD $5,100 - $5,500 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Mingmei	Place of Origin:	Shandong, China	Model Number:	MA1325
Certification:	CE ISO BV	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	18 Months
Weight:	1350kg	Dimension(LWH):	305019801650mm	Voltage:	380V
Condition:	New	Power(W):	4.5kw	CNC or Not:	CNC

Packaging Details

Plywood cases/4 axis cnc router

Product Description

4-axis 3D CNC router MA1325/stone carving machine atc wood cnc router 2030/router cnc 2030

1.Applicable Industry and materials of hot sale atc 3D spindle cnc router:

1) Mould: wood,wax, wood, gypsum,foams,wax

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.

3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

2.Machine configurations of 4 axis automatic tool change engraver cnc router:

1.HSD spindle ----original famoue brand from Italian,also can choose Kolumb spindle

2.SYNTEC control system------It is from Taiwan with high performance and competitive price

3.Yaskawa servo motor and drives----They are from Japan with high precision and long life

4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium

5.Working area:1300*2500*400mm

C Rotary Axis:360o

6.Whole cast steel structure thicken to 8mm

7.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw

8.Automatic Tool Calibration - ----To guide rail and slide block , make it run better

9.Schneider electrical components - ----original brand from France

10.Japanese Omron Switch with long life

11.APEX Reudcer from Taiwan----More powerful and higher precision

12. T-Slot table with Aluminum sheel - -----Use clamp fixed materials

3.Machine Parameters

1	Model	MA- 1325	MA-1530	MA-1836	MA-2030	MA-2040
2	X,Y Working Area	1300x2500mm	1500x3000mm	1800x3600mm	2000x3000mm	2000x4000mm
3	Z axis travel	200mm-700mm(according to your requests)
4	Table Surface	Vacuum and T-slot Combined(double use)
5	Frame	Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type
6	X, Y Structure	Helical Gear and rack transmission, Taiwan HIWIN Linear Rail
7	Z Structure	Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
8	Spindle Power	China top brand Water cooling spindle / Italy HSD Air cooling spindle
9	Spindle Speed	0-24000RPM / 0-18000RPM
10	Drive Motors	Stepper Motor Driver/ Servo Motor Driver
11	Working Voltage	AC220V/380V 1PH/3PH 50/60Hz,
12	Command Language	G Code
13	Operating System	Mach3 / NCstudio / DSP / Taiwan SYNTEC control system
14	Computer Interface	USB port
15	Flash Memory	512M
16	Collet	ER20/ER25/ER30
17	Inverter	China top brand Fuling inverter / Taiwan Delta inverter
18	Software Compatibility	Type 3 /Artcam

4.Details

5.Samples

6.The other CNC Router machine

7.Our customer
