4 Axis Cnc Machine for Aluminum Profile

1.Equipment Feature

1.1  The machine is designed for processing launder,taping,milling and mounting hole,locking            and other slots for diversified curtain walls and aluminum doors and windows.

1.2  It adopts high-speed electric sprincipal axis,which is imported from Italy.It is extremely                 efficient and can swing in +90°.

1.3  It adopts high-quality computer control system, which is used in industry area specially.The         system has favorable user manipulate interface program in graphics mode and processing           interface.This processing interface can show related dates directly.

1.4  It adopts high-quality servo-motor,roller linear guide pair to insure the machine runs with              high precision.

1.5  The cutter storage supply 8 cutter positions, the cutter can change quickly and                               automatically.

1.6  With half-close safeguard device to insure the personal safely of the operator.

1.7  The position of clamping device can put freely.

2.Equipment Feature

Shaft rev/power

9 kw/0~24000rpm

Air pressure

0.5~0.6 Mpa

X-axis speed

50000mm/min

Y-axis speed

30000mm/min

Z-axis speed

20000mm/min

Cutter max length

130mm

Cutter handle model

ISO30

Cutter magazine

8 cutter positions

Type of clamping

pneumatic clamping ( 8 )

Cutting length

1200*300*6000mm

Overall dimension

11300*2500*2500mm

3.Detailed photos

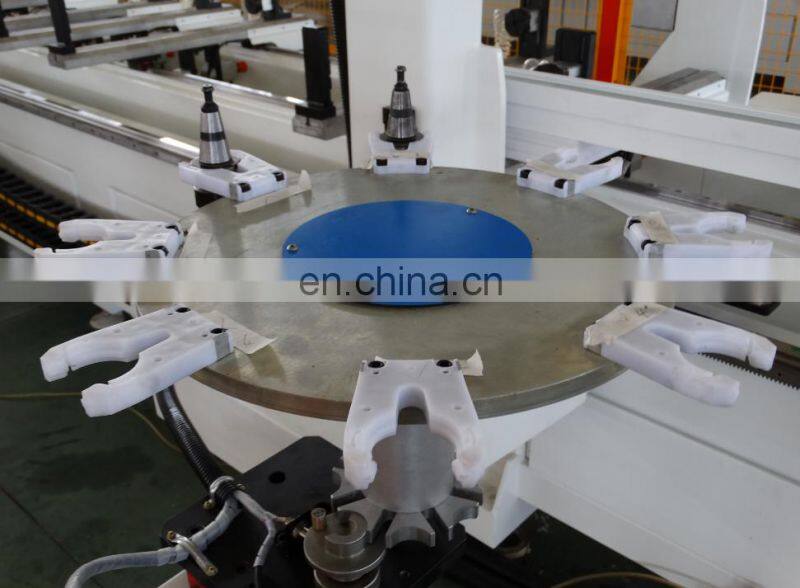

3.1 9KW Italy HSD spindle                                    3.2 Carousel automatic tool change

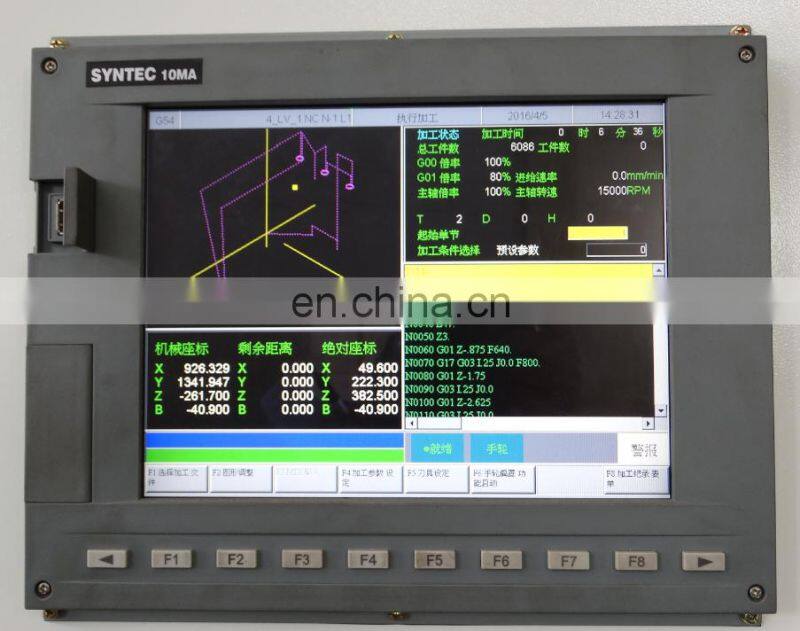

3.3 Taiwan Syntec 10MA

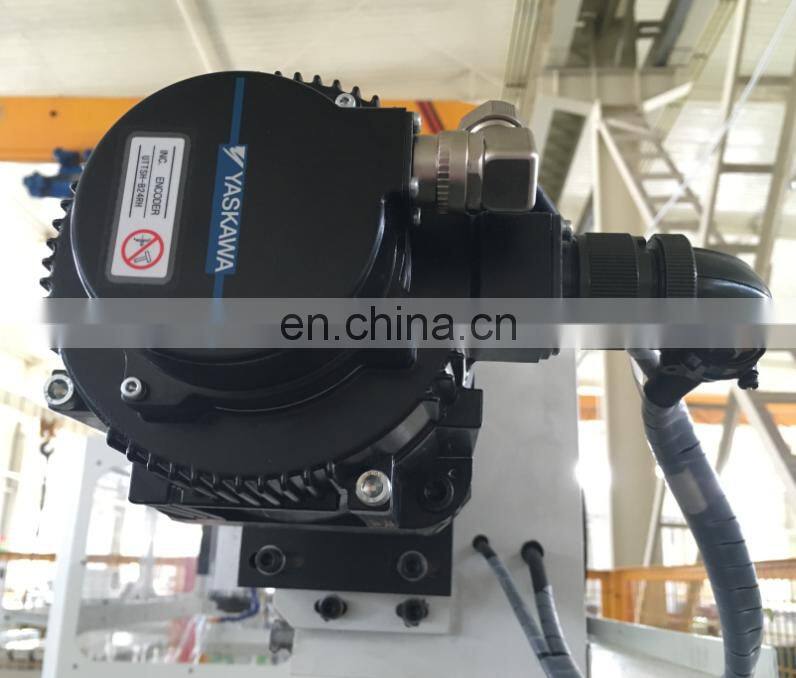

3.4 Japan 850W yaskawa servo motors&drivers

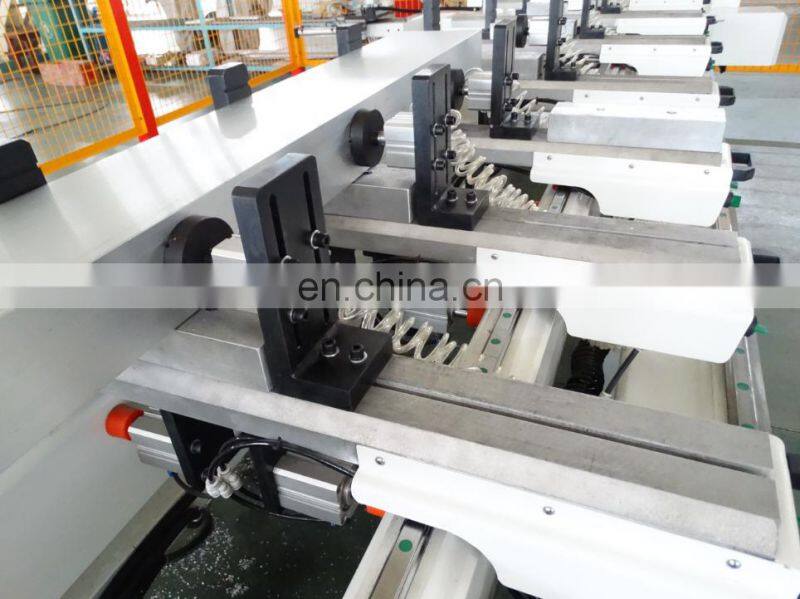

3.5 Clampings

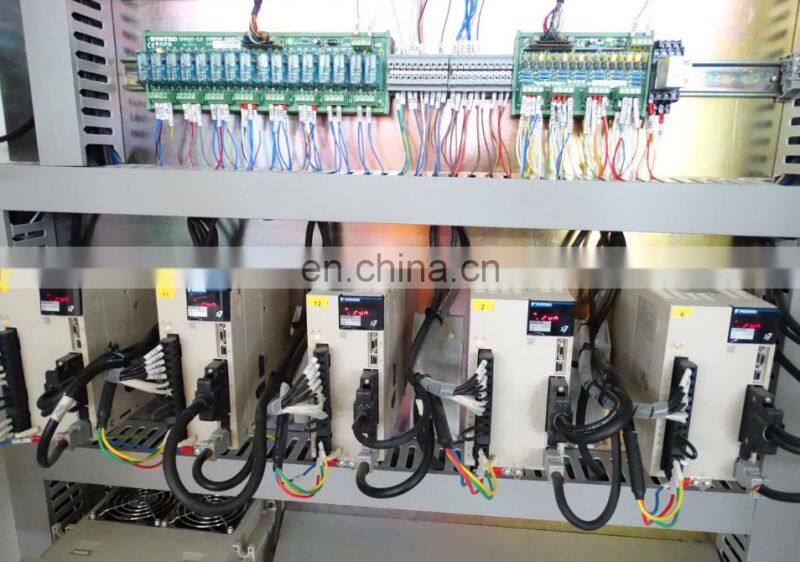

3.6 Cabinet inside,france schneider electric parts

4. 4 axis carousel automatic tool change processing samples:
