Home > Products > CNC Router > Trade Assurance cnc router 1325 nc studio software
Trade Assurance cnc router 1325 nc studio software
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
-
New NC Studio cnc router with high z axis
-
Italy HSD Spindle 4 axis cnc wood router/cnc router and door production/pneumatic cnc machine of three axis
-
Marble granite stone made in germany high quality hot sale 4 axis cnc router auto tool changer
-
Pneumatic auto tool changer cnc router 3d eps 4 axis
-
Pneumatic auto tool changer high-level automatic tool changer cnc router 4 axis
-
Hot! Hot! Hot!!! Italy HSD 9KW Spindle stone carving machine atc wood cnc router 2030
Product Details
| Brand Name: | Mingmei | Place of Origin: | Shandong, China | Model Number: | MA1325 |
| Certification: | CE ISO BV | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 18 Months |
| Weight: | 1350kg | Dimension(L*W*H): | 3050*1980*1650mm | Voltage: | 380V |
| Condition: | New | Power(W): | 4.5kw | CNC or Not: | CNC |
Packaging Details
Standard Export Wooden Cases/1325 CNC Engraving Machine
Product Description
Trade Assurance cnc router 1325 nc studio software
1.Product Description
1.4.5 kw China cooled Spindle, big strength, long life, and low noise.
2.Popular DSP controller, it’s with USB interface, no need connecting to PC,both easy operation and convenient.
3.Double separate heads, much bigger strength than one head, it’s suitable for wood doors, windows, or other wood furniture with symmetrical patterns.
4.HIWIN linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.
2.Parameter
Model | MA1325 |
X-Y-Z axis working area | 1,300 x 2,500 x 200mm |
Machine size | 1,380 3,000mm |
Work envelop | 1,300 2,500mm |
Repostioning resolution | 0.02mm |
Resolution | 0.0025mm |
Spindle power | 4.5KW(6KW/optional) (2-4)/set |
Spindle speed | 6,000-24,000rpm/Min |
Max.cutting speed | 15m/Min |
Max.speed | 35m/Min |
Bridge clearance | 200mm |
Working voltage | AC380V/50HZ |
Command code | HPGL ,G Code |
Computer interface | USB 2.2 |
Collet | ER32-12.7mm,6mm,3.175mm Collet |
Controls | DSP |
Equipment available | a. Vacuum equipment b. Oil lubrication system c. Dust collector system |

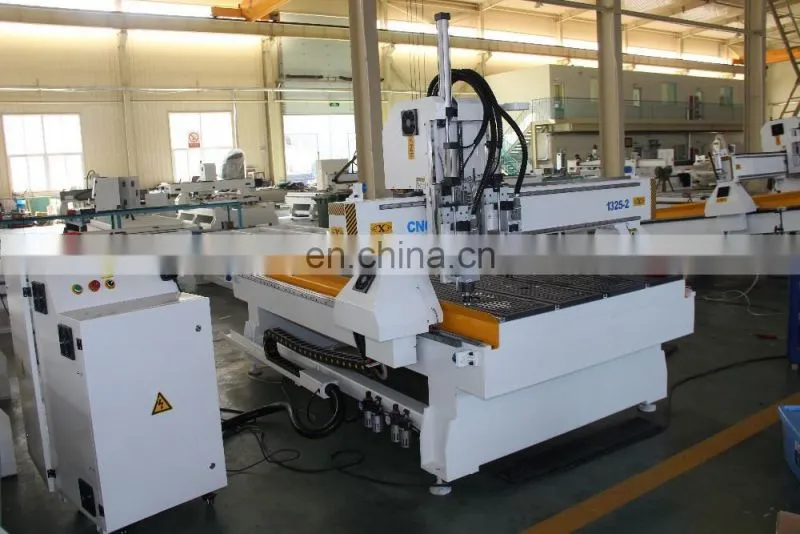

3.The machine in the factory

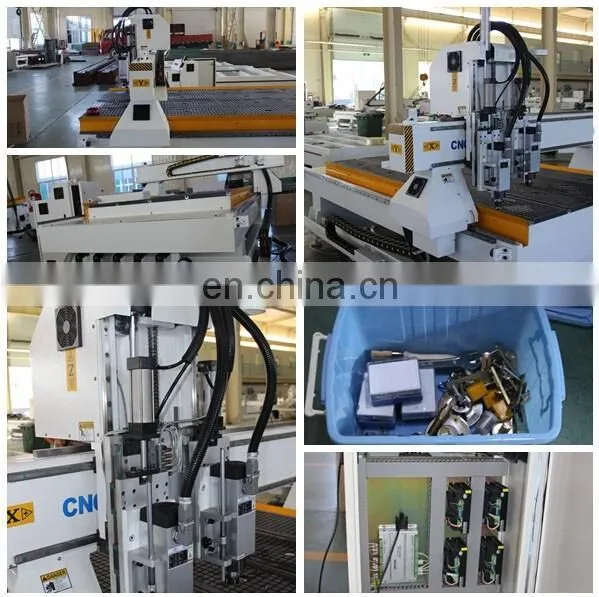

4.Detailed Picture

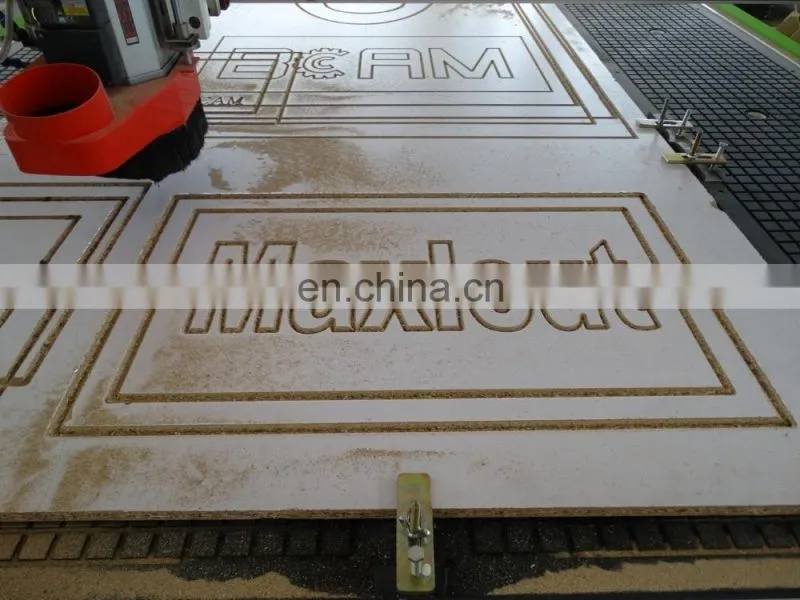

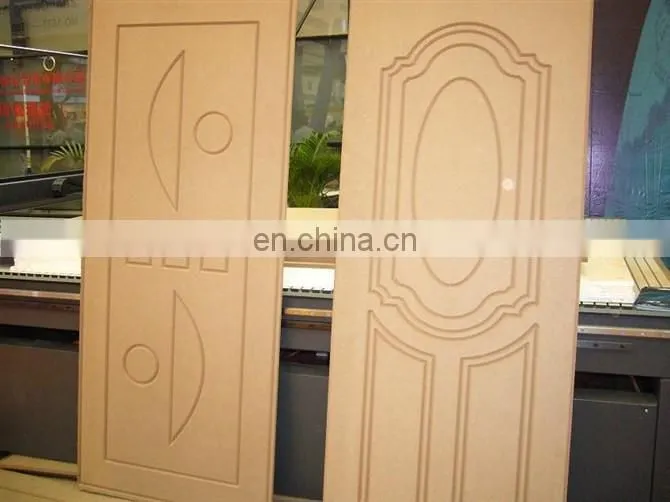

5.Sample Picture
6.The other CNC Router machine
7.Our customer
8.Why choose our factory
Our Certificate
♥Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
♥Q2: Do you have the manual of machine.
Yes,we have
♥Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
♥Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
♥Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
