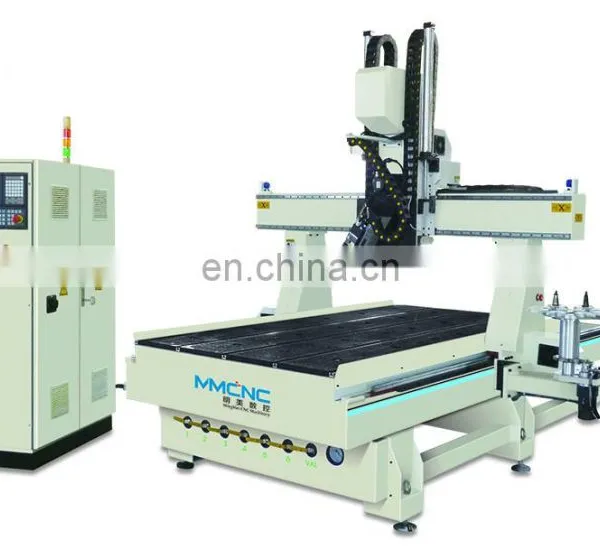

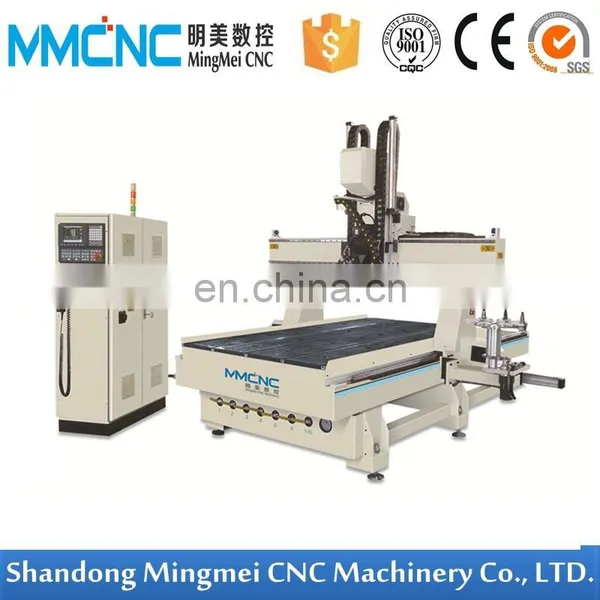

MM1325-4A-ATC CNC Processing Center
The machine is a professional CNC Equipment,which is used for drilling on the side of material and processing on the circular arc material.It can drill the hole on the side of the doorplank,milling,slot,it also used for the drilling the hole and milling the slot on the three sides of the aluminum profile.
1.EquipmentFeature |

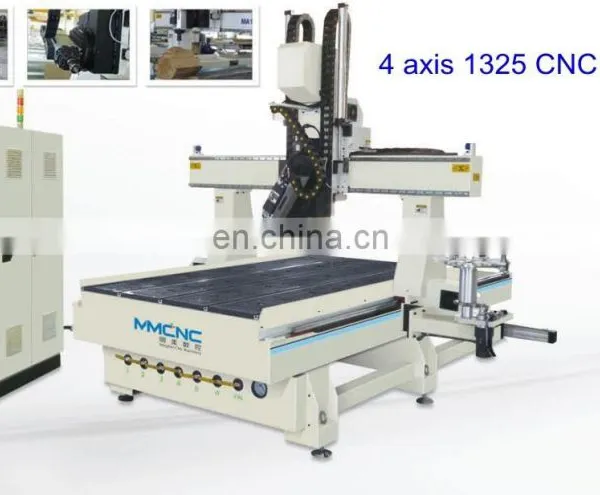

4 Axis CNC Processing Center |
With 4 axis spindle ( which can be rotated ± 90 degrees ), this machine is specially designed for curve surface cabinet, doors and indoor decoration. It can also working for some mold prcessing, like foam mold...
For this machine, we use top quality components:
1) SYNTEC control system from Taiwan, with high performance and competitive price. Professional famous brand in 4 axis machine line.
2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the
machine working for long time.
3) Original 850W YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.
4) Rotating head from Japan, it can make sure there are no gaps when spindle rotating.
Technical Parameter |
4 Axis CNC Processing Center |
No |
Description |
Parameter |
1 |
Working area |
1300*2500*400mm*±90 degrees |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z Re-positioning Accuracy |
±0.03mm/300mm |
4 |
Max. Rapid Travel Rate |
80000mm/min |
5 |
Max. Working Speed |
45000mm/min |
6 |
Spindle Speed |
0-24000RPM |
7 |
Command Language |
G Code |
8 |
Flash Memory |
512M |
9 |
Collect |
ER32 |
10 |
X,Y Resolution |
<0.03mm |
11 |
Running Environment Temperature |
0 - 45 Centigrade |
12 |
Relative Humidity |
30% - 75% |
13 |
Packing Size |
3750X2280X1980mm |
14 |
N.W. |
1700KG |
15 |
G.W. |
2000KG |
Applicable |
4 Axis CNC Processing Center |
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

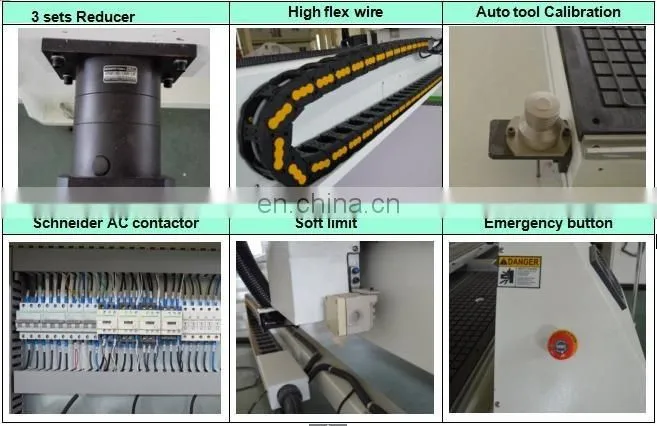

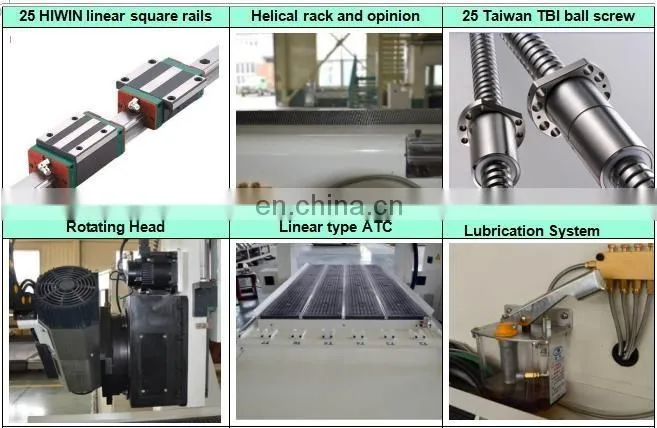

Machine Parts |
4 Axis CNC Processing Center |

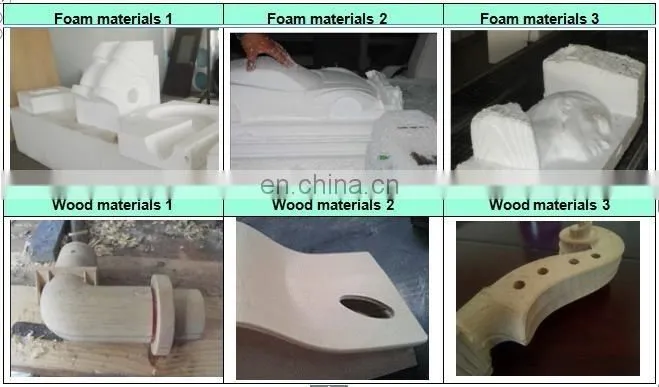

Samples |
4 Axis CNC Processing Center |

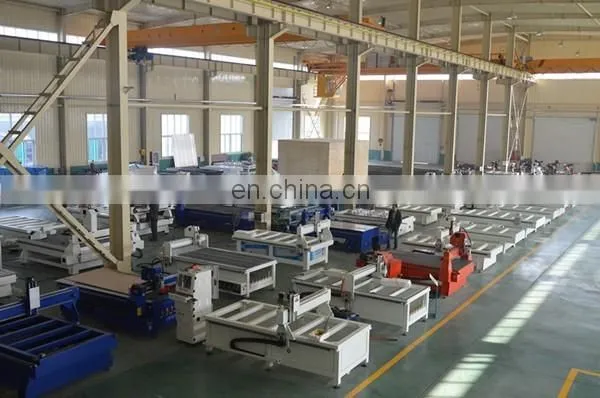

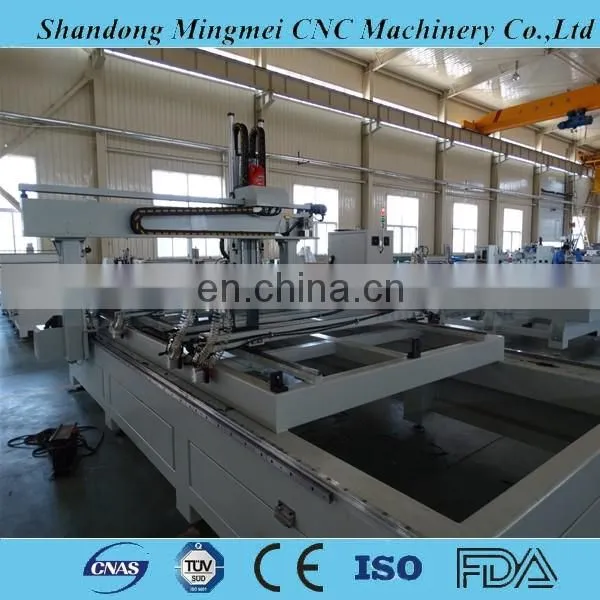

Our Factory |
Shandong Mingmei |
Customer Visited |
4 Axis CNC Processing Center |
Certificate |
For Our Machine |
Contact Me |
for 4 Axis CNC Processing Center |
Mag Guo Whatsapp:0086-1876615398
